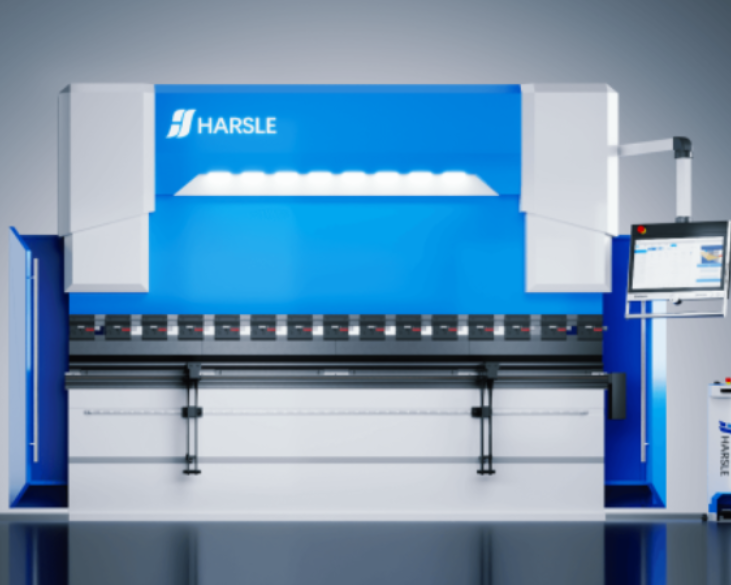

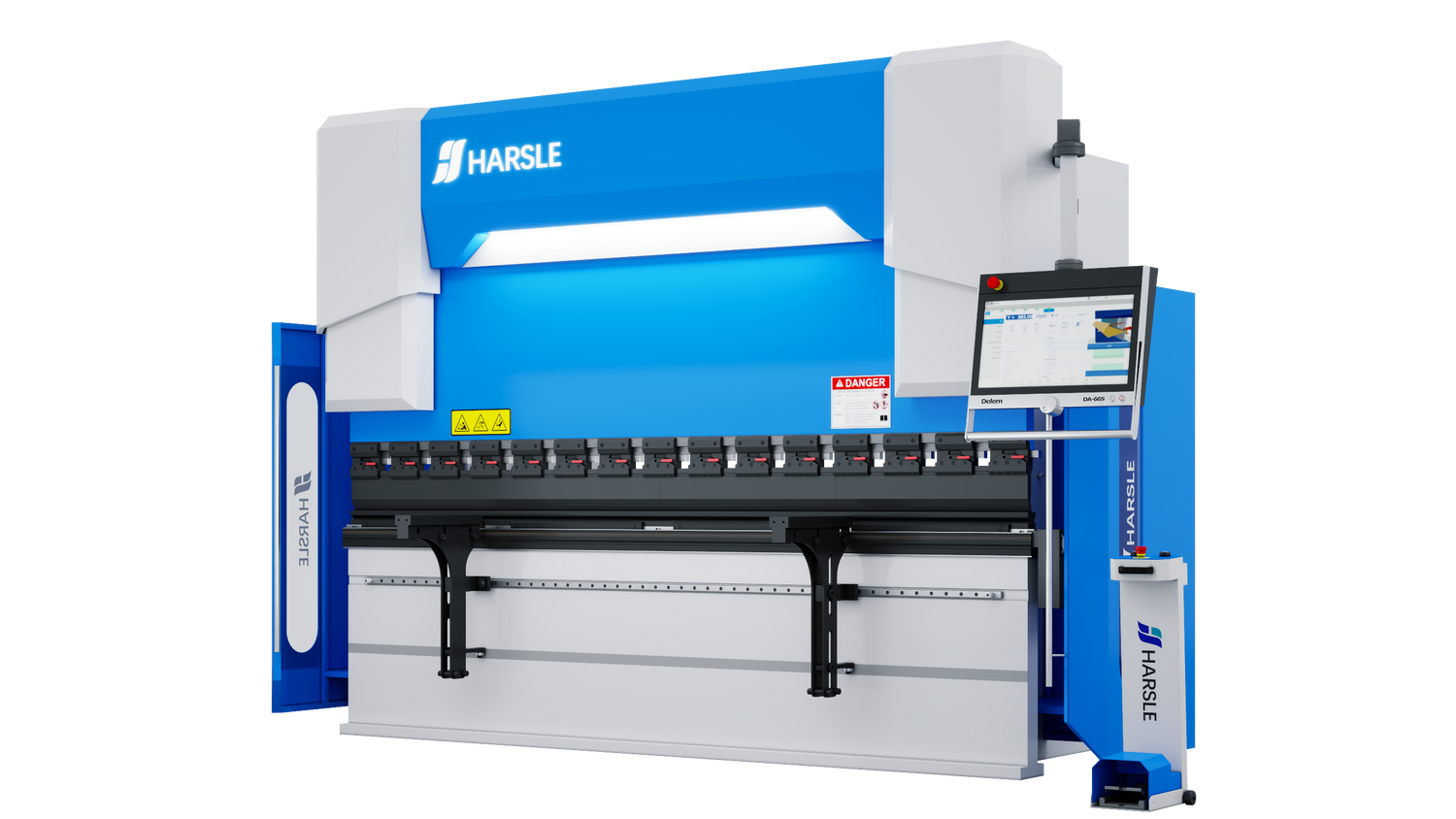

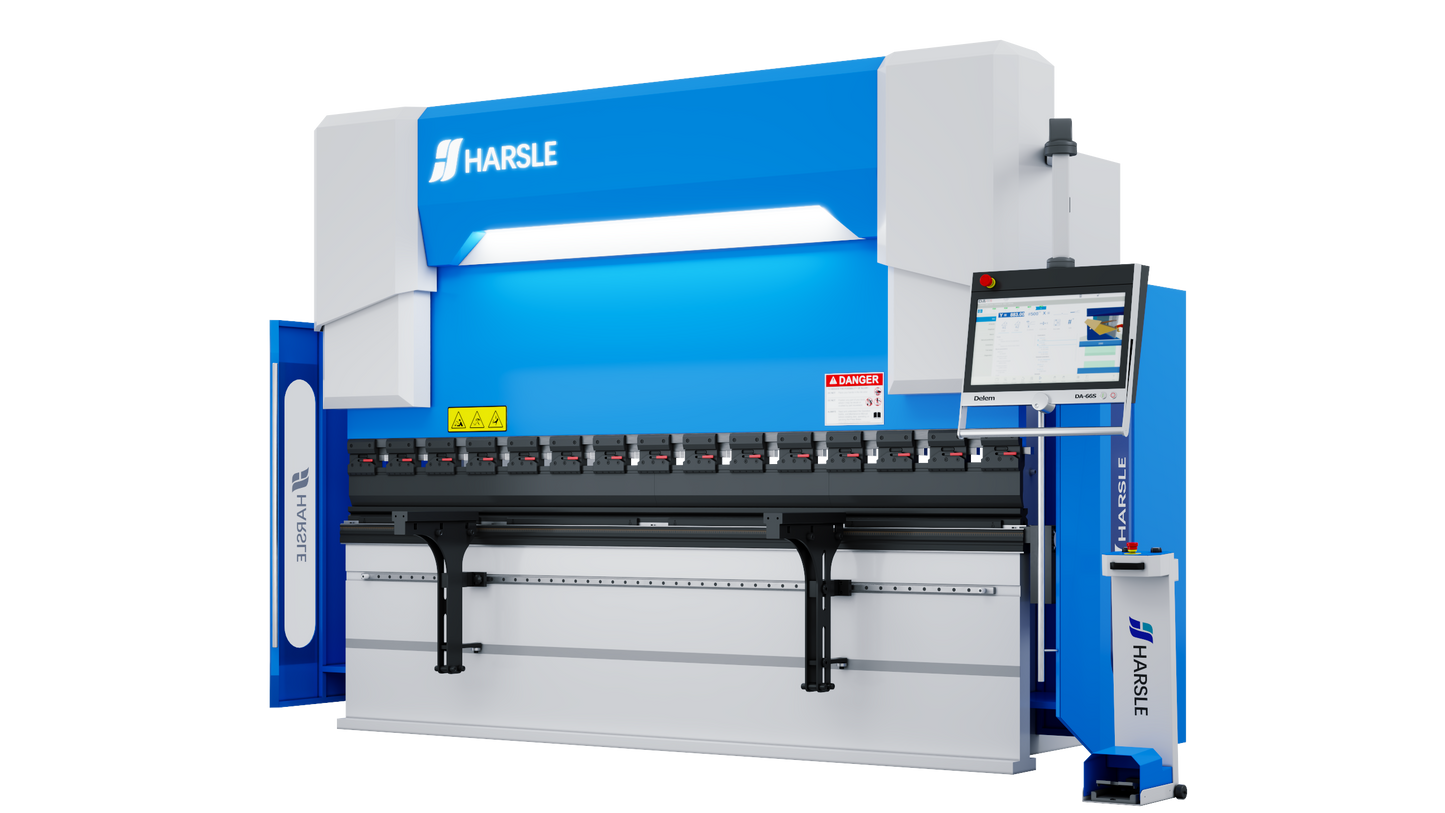

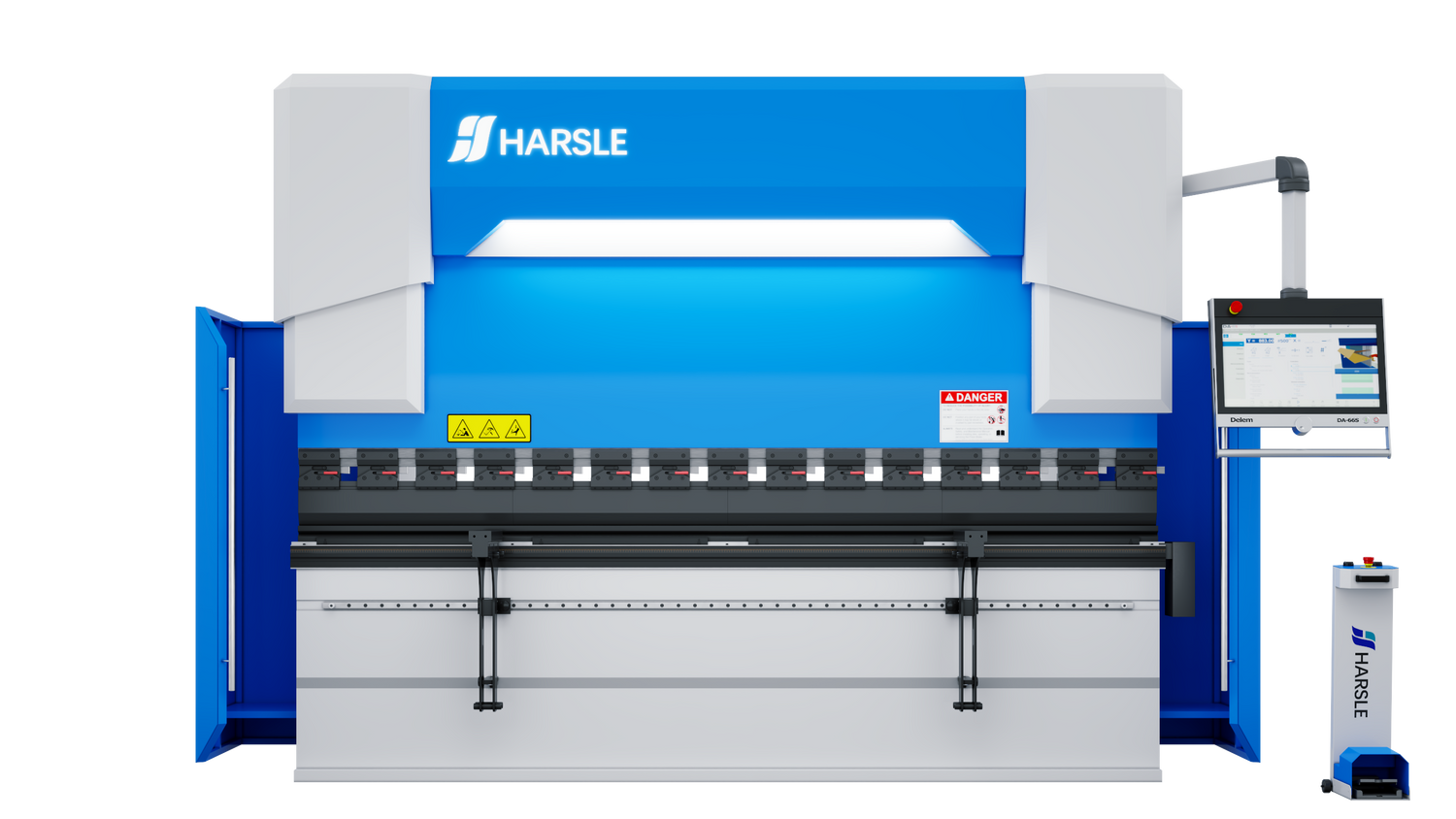

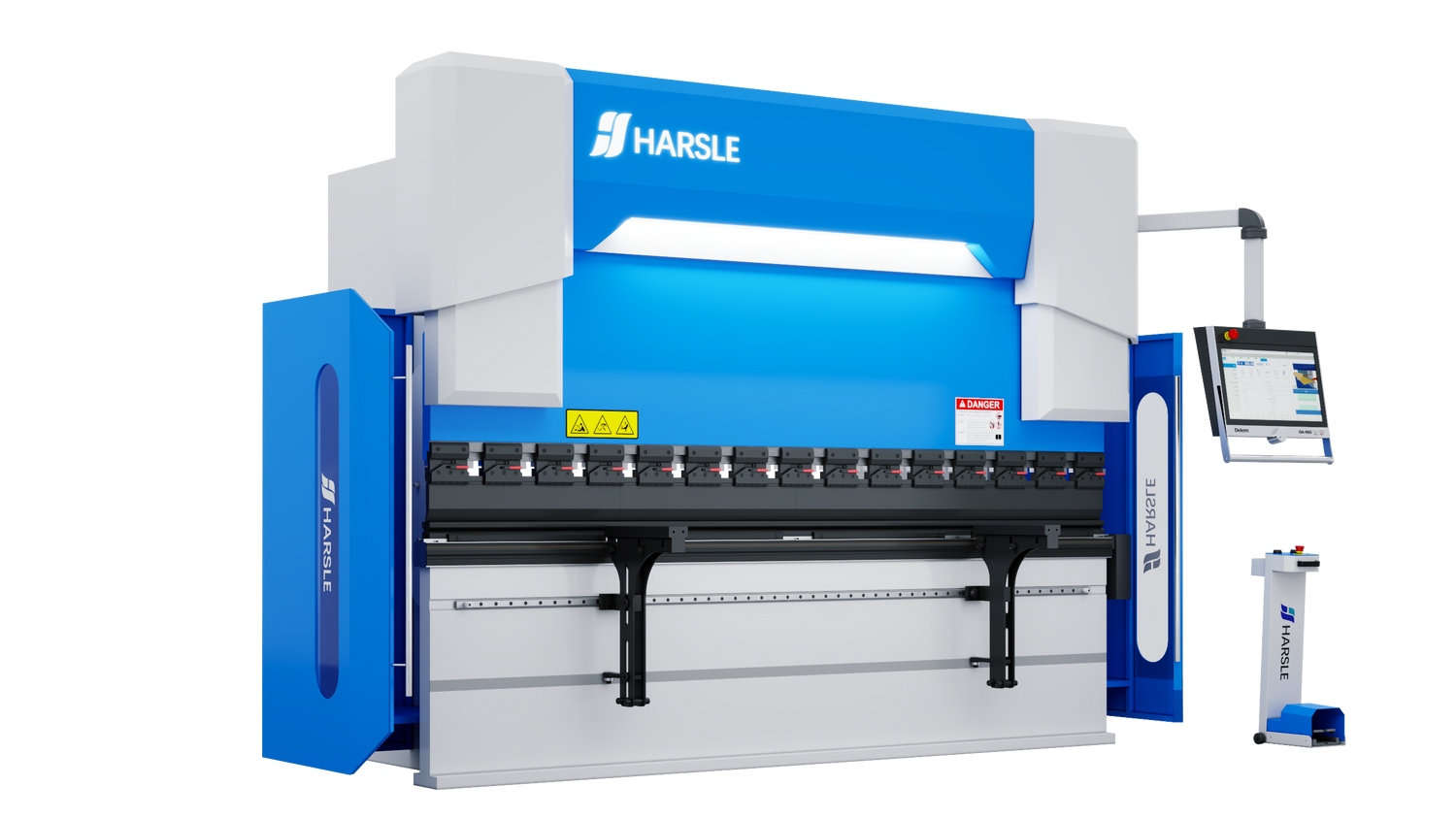

HARSLE MasterBend 11032 CNC Press Brake — 110T / 3200mm

HARSLE MasterBend 11032 CNC Press Brake

HARSLE MasterBend 11032 CNC Press Brake — 110T / 3200mm

Name: HARSLE MasterBend 11032 CNC Press Brake — 110T / 3200mm
Brand: HARSLE
SKU: HARSLE-MASTERBEND-11032
Availability: InStock

Request a written quotation including delivery to your address.

Thanks for contacting us. We'll get back to you as soon as possible.

Request a Quote Including Freight

Enter your delivery details so we can quote the equipment and freight together. Fields marked * are required.

Product

Quantity

Phone

Contact and delivery details

Your name *

Company

Delivery street address *

Unit / building (optional)

Suburb / city *

State / region *

Postcode *

Country *

Delivery site type *

Forklift or unloading equipment available? *

Message

Master-level precision meets hybrid power, engineered for ultimate accuracy.

Part of HARSLE's MasterBend series — High-Precision Flagship Series, built for aerospace, medical & high-precision manufacturing.

This 11032 configuration delivers 110 tonnes (1100 kN) of bending force across a 3200mm bending length.

Hybrid servo-hydraulic drive, up to 50% energy saving vs standard hydraulic
±0.01mm repetition accuracy
DELEM 69S / DELEM 66S touchscreen CNC control
4+1 to 8+1 axis programmable CNC back gauge (BG-2/4/5/6)
Dual independent servo motors for perfectly parallel ram movement
Automatic hydraulic/CNC crowning compensation
<68dB(A) low-noise operation
Light curtain standard; laser / AKAS laser protection optional
Laser protection supplied as standard

CNC Control Options

DELEM 58Tx: 18.5-inch touchscreen with graphical programming, bending-process calculation and collision checking.
DELEM 53Tx: 15.6-inch touchscreen with integrated 2D programming for intuitive, accurate operation.

Drive System

Servo Motor: High-performance servo motor provides precise, energy-efficient hydraulic power, running at full capacity only during active bending for near-zero standby consumption.
Dual Servo Motors: Two independent high-torque servo motors drive the Y1 and Y2 axes separately, enabling real-time synchronization and perfectly parallel ram movement.

Back Gauge System

From standard 4+1 axis (BG-2) to advanced 8+1 axis (BG-6) configurations, every stop finger can be independently programmed for complex part geometries.

Automatic Crowning System

An intelligent deflection compensation system automatically calculates and applies the optimal crowning curve across the full bending length, guaranteeing consistent bend angles from edge to edge with zero manual shimming.

Safety Systems

Light Curtain (Standard): Infrared light curtain safety system provides full-length protection along the bending zone, instantly halting ram movement when the safety field is breached.
