Efficient cutting made simple for everyday production.

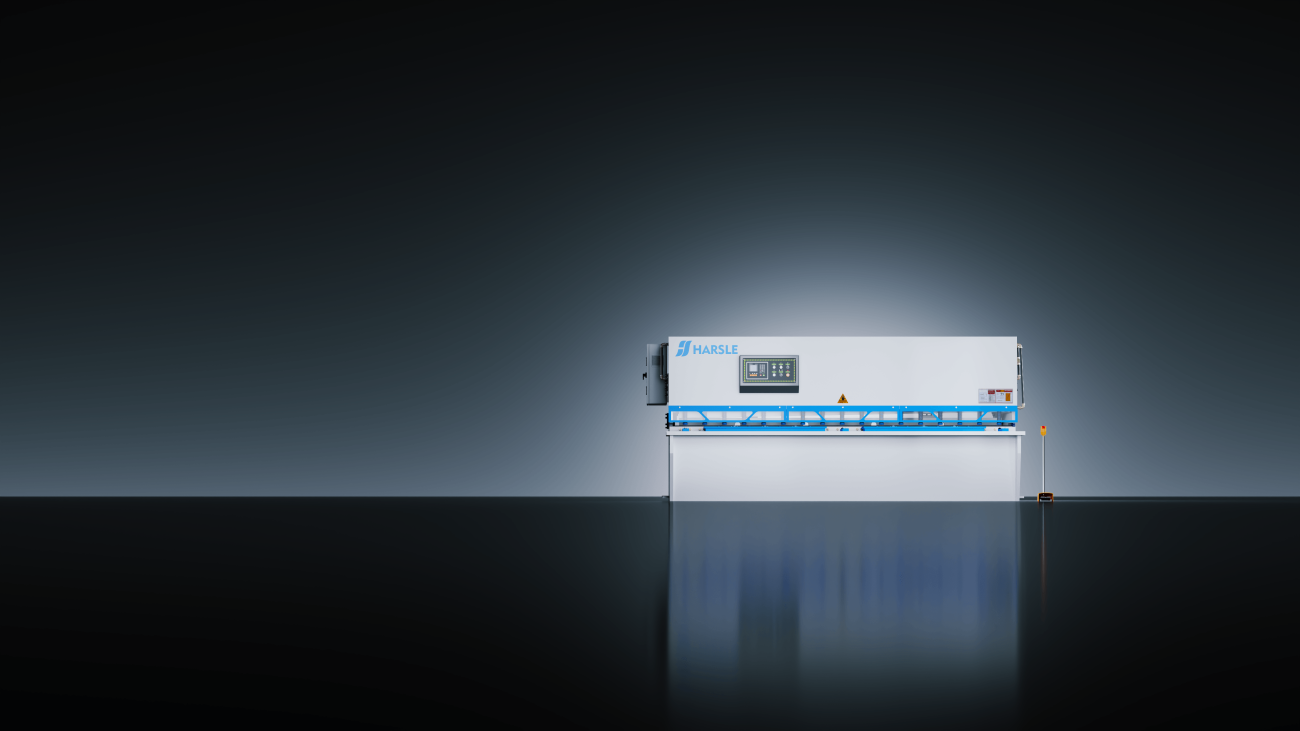

Part of HARSLE's LiteShear series — Swing Beam Shearing Machine Series, built for Thin sheet cutting, general fabrication workshops, prototyping, everyday production.
This 0632 configuration cuts material up to 6mm thick, with a maximum cutting length of 3200mm.
- Simple blade gap adjustment for different materials, minimal setup time
- Front support for smoother feeding and better positioning
- Foot switch for convenient, efficient operation
- Light curtain safety system detects intrusion and stops operation instantly
- Safety guard switch for basic operator protection
- Optional pneumatic rear support for large sheets
| Max Cutting Thickness | 6 mm |
| Max Cutting Length | 3200 mm |
| Cutting Speed | 12 cuts/min |
| Cutting Angle | 1.5° |
| Spring Pressure Cylinder | 12 pcs |
| Blade Number | 6 pcs |
| Blade Length | 1100*3 mm |
| Oil Tank Capacity | 210 L |
| Dimensions (L*W*H) | 3840*1800*1800 mm |
Frequently Asked Questions
What size LiteShear do I need for 6mm material?
The LiteShear 0632 cuts mild steel up to 6mm thick, with a maximum cutting length of 3200mm. For harder materials, reduce the rated thickness accordingly (stainless steel is roughly 65% of the mild steel capacity, aluminum roughly 130%). Always choose a model with 20-30% extra capacity for occasional thicker materials.
Have more questions about HARSLE shearing machines? See our HARSLE Shearing Machines FAQ.
