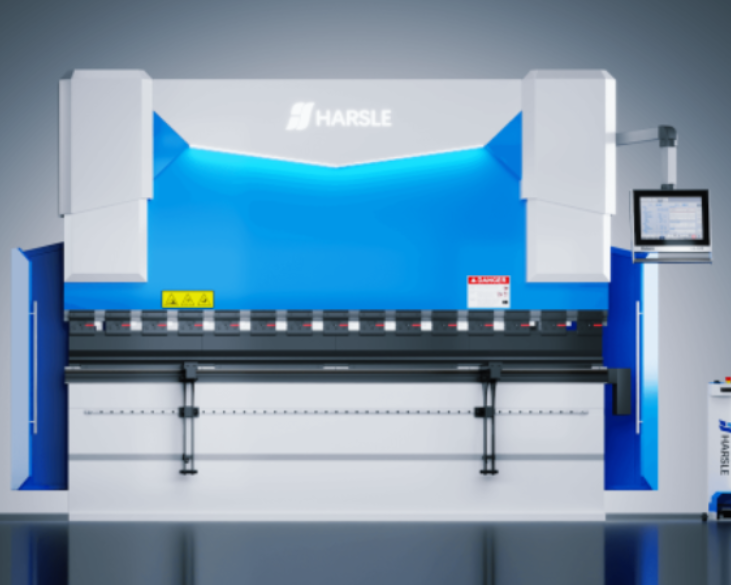

HARSLE FlexBend 6325 CNC Press Brake — 63T / 2500mm

Adaptive flexibility meets intelligent control, engineered for complex bending.

Part of HARSLE's FlexBend series — Versatile Multi-Axis Solutions, built for complex sheet metal fabrication, high-mix production.

This 6325 configuration delivers 63 tonnes (630 kN) of bending force across a 2500mm bending length.

• Intelligent graphical programming with automatic collision detection
• DELEM 58Tx / DELEM 53Tx touchscreen control
• AC motor or servo motor drive options
• BG-2 (X+R) or BG-4 (X+R+Z1+Z2) programmable back gauge
• Offline programming software with 2D/3D simulation
• Three-step, AMADA-style or hydraulic fast clamping
• Front support system for large workpieces
• Laser protection supplied as standard

CNC Control Options

• DELEM 58Tx: 18.5-inch touchscreen with graphical programming, bending-process calculation and collision checking.
• DELEM 53Tx: 15.6-inch touchscreen with integrated 2D programming for intuitive, accurate operation.

Drive System

• AC Motor: High-performance AC motor delivering strong torque, superior efficiency and smooth precision.
• Servo Motor: High-performance servo motor provides precise, energy-efficient hydraulic power with near-zero standby consumption.

Back Gauge System

BG-2 (X+R axis) handles standard bending reliably; BG-4 (X+R+Z1+Z2 axis) adds the multi-dimensional positioning needed for complex bending applications.

Offline Programming Software

Create bending programs with advanced offline simulation, from 2D layouts to full 3D visualization, cutting setup time and eliminating trial-and-error.

Safety and Tooling

• Three-Step Clamp: A structured three-step clamping design for accurate positioning and enhanced safety in stable, repeatable tool setups.
• AMADA-Style Clamp: Fast, effortless tool installation, reducing setup time and improving workflow in high-frequency production.
