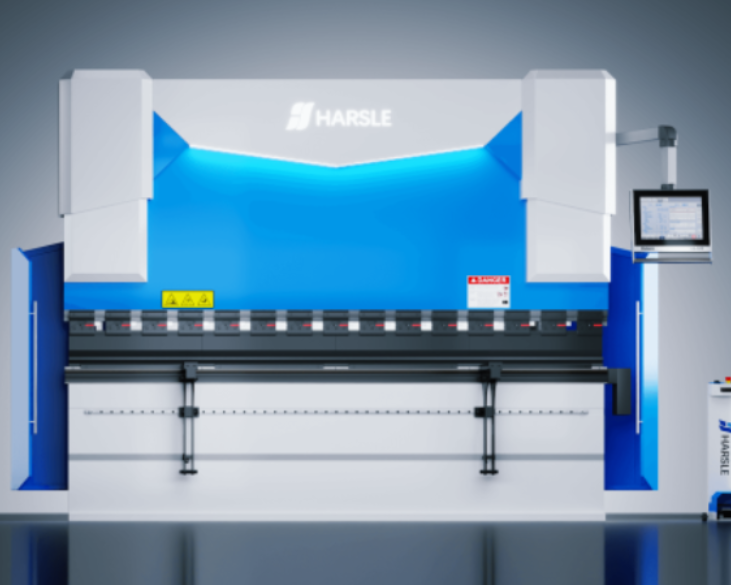

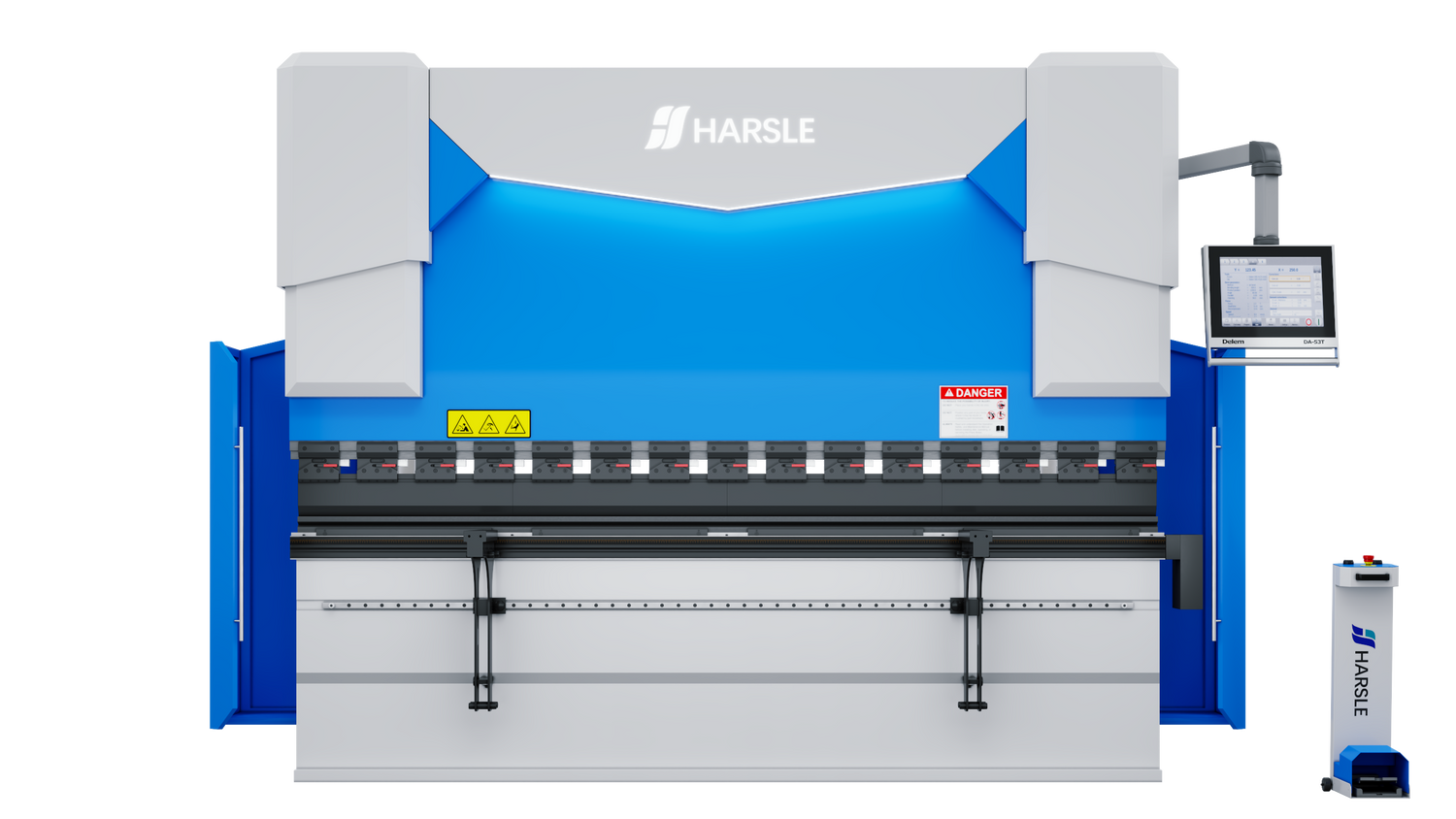

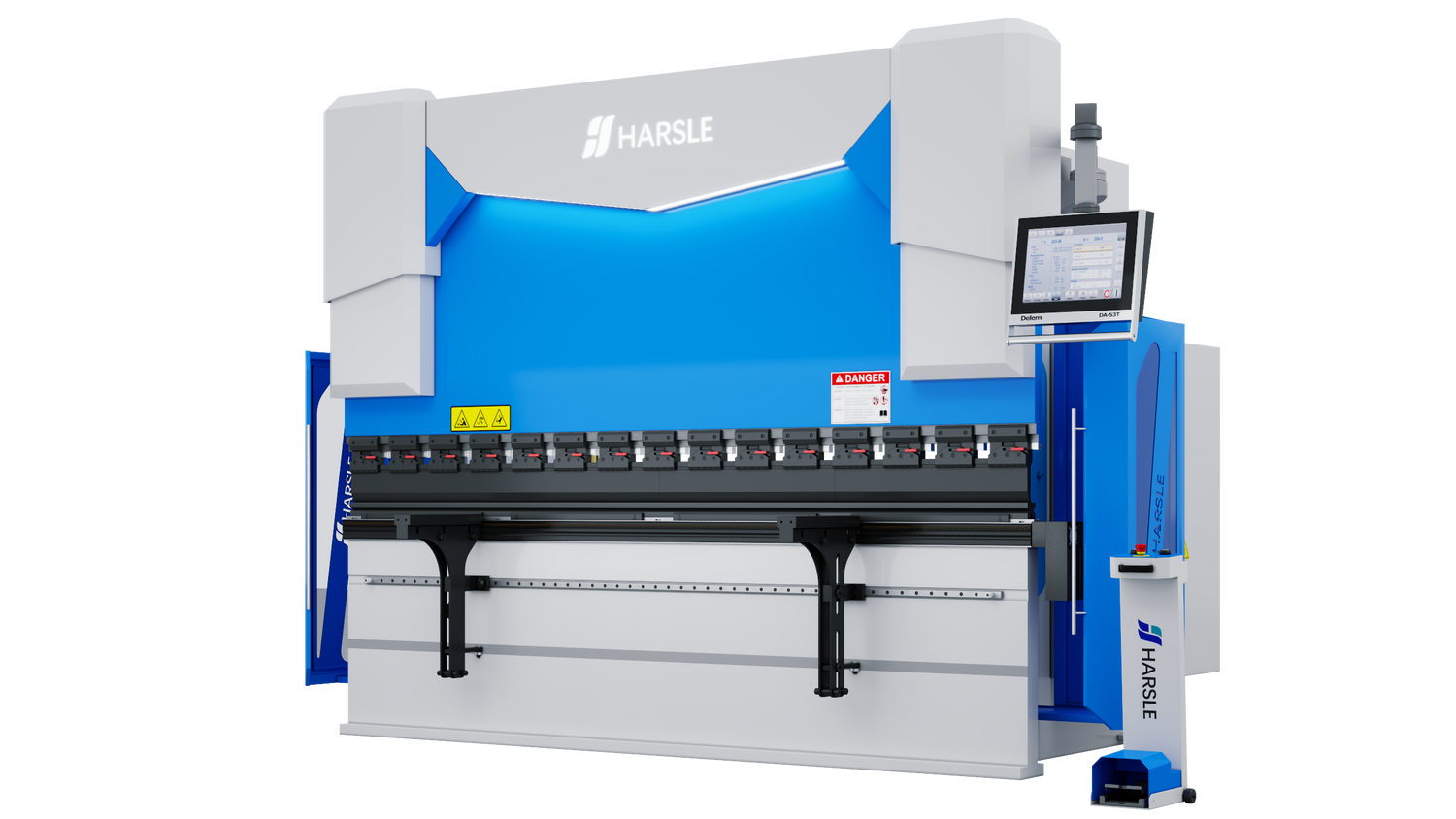

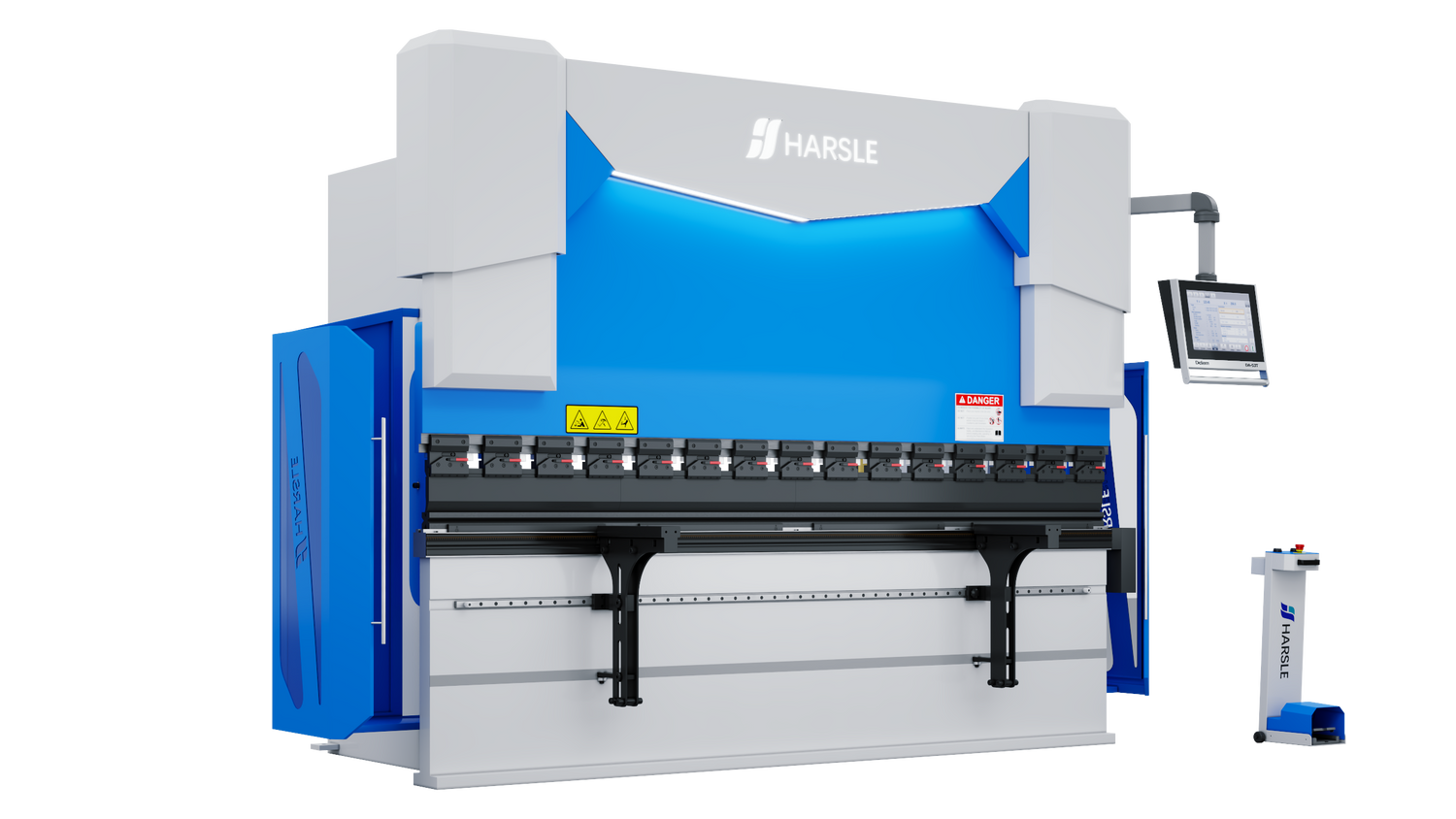

Adaptive flexibility meets intelligent control, engineered for complex bending.
Part of HARSLE's FlexBend series — Versatile Multi-Axis Solutions, built for complex sheet metal fabrication, high-mix production.
This 20032 configuration delivers 200 tonnes (2000 kN) of bending force across a 3200mm bending length.
BG-2 (X+R axis) handles standard bending reliably; BG-4 (X+R+Z1+Z2 axis) adds the multi-dimensional positioning needed for complex bending applications.
Create bending programs with advanced offline simulation, from 2D layouts to full 3D visualization, cutting setup time and eliminating trial-and-error.
Punches & Dies: gooseneck, acute, radius, hemming and multi-V profiles, hardened to 58-62 HRC. Quick-Clamp Systems: tool changes in under 3 minutes, WILA/Amada/Euro compatible. ±0.01mm CNC precision-ground for repeatable bending angles.
| Bending Force | 2000 kN |
| Bending Length | 3200 mm |
| Column Distance | 2600 mm |
| Throat Depth | 400 mm |
| Ram Stroke | 200 mm |
| Daylight (Open Height) | 470 mm |
| Motor | 15 KW AC |
| Down Speed | 120 mm/s |
| Dimensions (L*W*H) | 3600*1850*2750 mm |
What tonnage is the FlexBend 20032?
The FlexBend 20032 delivers 2000 kN (200 tonnes) of bending force across a 3200mm bending length. Required tonnage for a job depends on material type, thickness and bending length — as a guideline, Tonnage = (650 x S^2 x L) / V, where S is material thickness (mm), L is bending length (m) and V is die opening (mm); the V-opening should be roughly 8x material thickness for stock up to 3mm, and 10-12x for heavier plates.
Have more questions about HARSLE press brakes? See our HARSLE Press Brakes FAQ.
Adaptive flexibility meets intelligent control, engineered for complex bending.
Part of HARSLE's FlexBend series — Versatile Multi-Axis Solutions, built for complex sheet metal fabrication, high-mix production.
This 20032 configuration delivers 200 tonnes (2000 kN) of bending force across a 3200mm bending length.
BG-2 (X+R axis) handles standard bending reliably; BG-4 (X+R+Z1+Z2 axis) adds the multi-dimensional positioning needed for complex bending applications.
Create bending programs with advanced offline simulation, from 2D layouts to full 3D visualization, cutting setup time and eliminating trial-and-error.
Punches & Dies: gooseneck, acute, radius, hemming and multi-V profiles, hardened to 58-62 HRC. Quick-Clamp Systems: tool changes in under 3 minutes, WILA/Amada/Euro compatible. ±0.01mm CNC precision-ground for repeatable bending angles.
| Bending Force | 2000 kN |
| Bending Length | 3200 mm |
| Column Distance | 2600 mm |
| Throat Depth | 400 mm |
| Ram Stroke | 200 mm |
| Daylight (Open Height) | 470 mm |
| Motor | 15 KW AC |
| Down Speed | 120 mm/s |
| Dimensions (L*W*H) | 3600*1850*2750 mm |
What tonnage is the FlexBend 20032?
The FlexBend 20032 delivers 2000 kN (200 tonnes) of bending force across a 3200mm bending length. Required tonnage for a job depends on material type, thickness and bending length — as a guideline, Tonnage = (650 x S^2 x L) / V, where S is material thickness (mm), L is bending length (m) and V is die opening (mm); the V-opening should be roughly 8x material thickness for stock up to 3mm, and 10-12x for heavier plates.
Have more questions about HARSLE press brakes? See our HARSLE Press Brakes FAQ.
