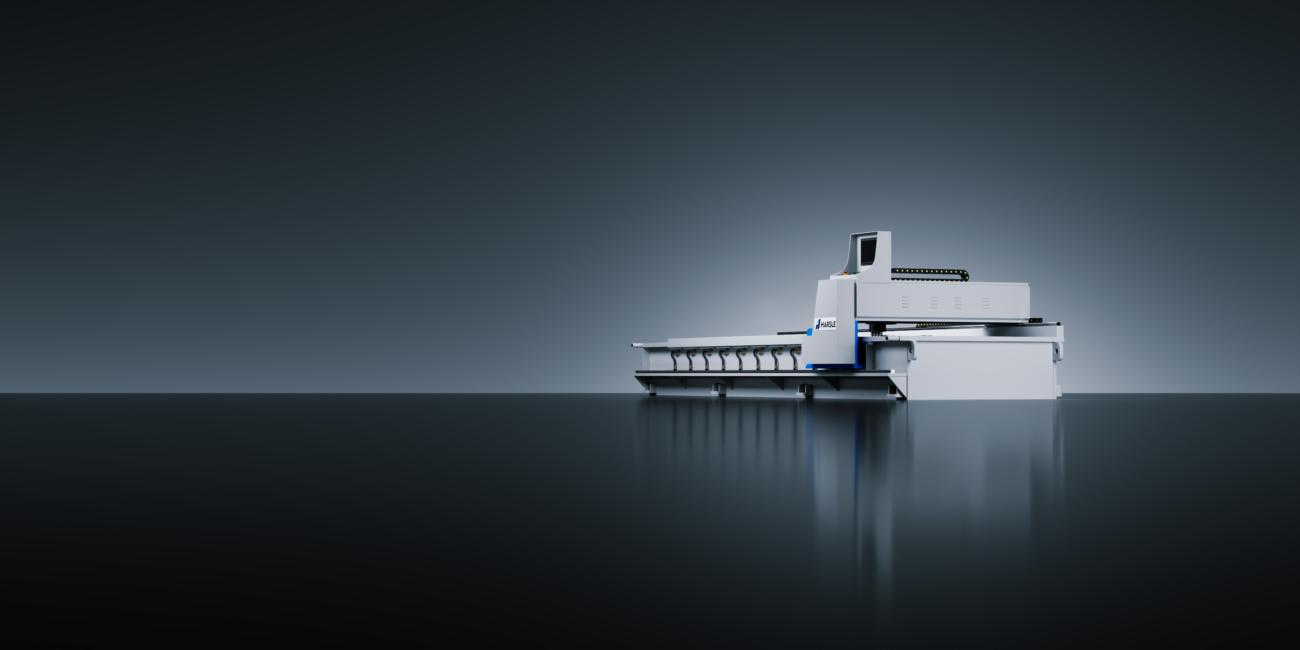

HARSLE EcoGroove 1560 V Grooving Machine — 6000×1500mm

Product information

Efficient large-sheet grooving with strong gantry structure and smooth feeding.

Part of HARSLE's EcoGroove series — Horizontal (Gantry) V-Grooving Machine Series, built for high-volume batch processing, curtain wall fabrication, large-format panels.

This 1560 configuration processes sheets up to 6000mm × 1500mm, handling material thickness from 0.4-5mm.

• Gantry structure for superior stability under heavy workloads
• Four-blade design for continuous, high-efficiency grooving
• Four-side grooving for uniform finishing on all sides of the workpiece
• Hydraulic clamping — quick locking + lateral clamp
• Larger work table optimized for oversized sheets and batch production
• Three-jaw chuck for secure, precise clamping and fast setup

CNC Axes

• Y1 Axis (Positioning): Handles forward/backward movement of the tool holder
• Y2 Axis (Clamping): Handles forward/backward movement of the clamp
• X Axis (Grooving): Controls left/right movement of the tool holder
• Z Axis (Feeding): Manages vertical movement and cutting depth

Key Specifications

Frequently Asked Questions

What sheet size can the EcoGroove 1560 process?
The EcoGroove 1560 handles sheets up to 6000mm long × 1500mm wide, with material thickness from 0.4-5mm. Always choose a model slightly larger than your maximum sheet size to allow comfortable handling and positioning.

Have more questions about HARSLE V grooving machines? See our HARSLE V Grooving Machines FAQ.
