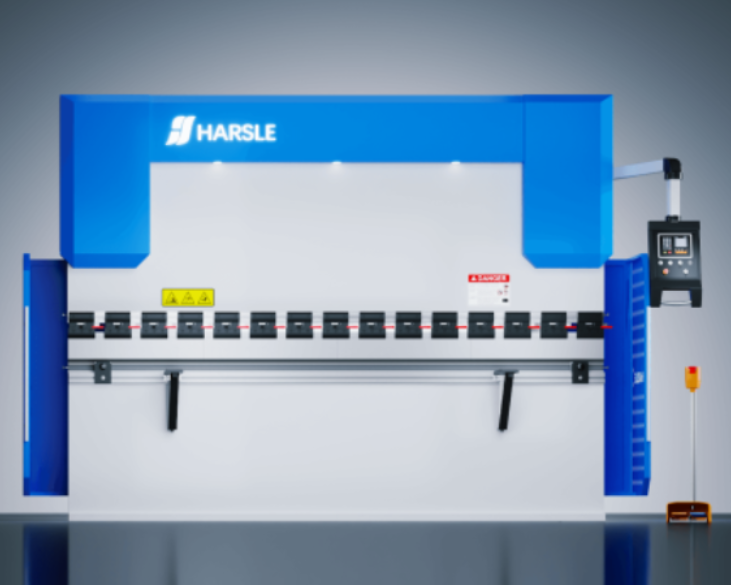

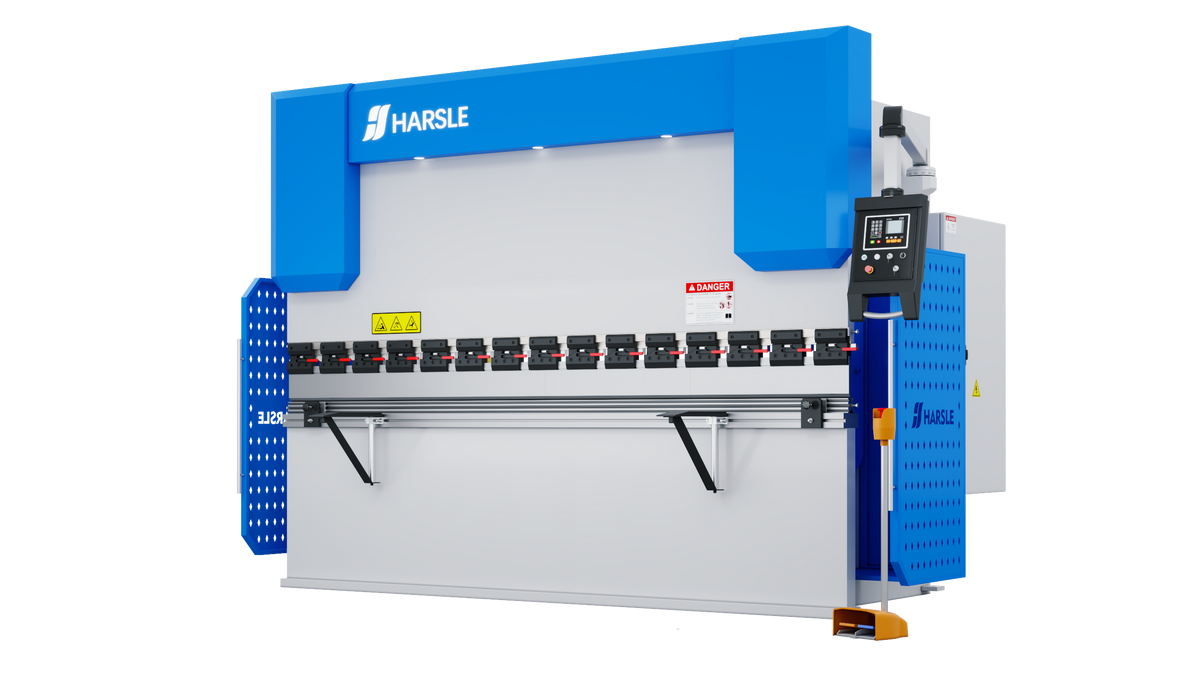

HARSLE EasyBend 25040 CNC Press Brake — 250T / 4000mm

User-friendly design meets stable performance, engineered for daily efficiency.

Part of HARSLE's EasyBend series — Reliable Entry-Level Bending, built for startups, prototyping & small-to-medium workshops.

This 25040 configuration delivers 250 tonnes (2500 kN) of bending force across a 4000mm bending length.

• Gear-and-rack transmission for stable synchronization
• DELEM 58Tx / DELEM 53Tx touchscreen control
• Fast-release clamp for rapid tool changes
• High-precision linear guide and ball screw
• Automatic safety door switch
• Manual or optional automatic R-axis back gauge
• Laser protection supplied as standard

CNC Control Options

• DELEM 58Tx: 18.5-inch touchscreen with graphical programming, bending-process calculation and collision checking.
• DELEM 53Tx: 15.6-inch touchscreen with integrated 2D programming for intuitive, accurate operation.

Drive System

• Rack & Pinion Drive: Gear-and-rack transmission ensures stable synchronization, strong rigidity and reliable long-term performance.

Back Gauge System

Manual R-axis and stop fingers come standard for firm, repeatable positioning; an optional automatic R-axis speeds up changeovers for batch production.

Standard Build Quality

A fast-release clamp for rapid tool changes, high-precision linear guide and ball screw for smooth accurate positioning, and an automatic safety door switch that halts operation the moment the guard is opened.

Safety and Tooling

• Laser Protection: Standard laser-based safety device mounted on the ram for a narrow detection zone close to the tooling point.
• Light Curtain: Infrared light curtain provides full-length protection along the bending zone.
• Laser Alignment: High-visibility laser line projection for accurate workpiece positioning and reduced setup time.
