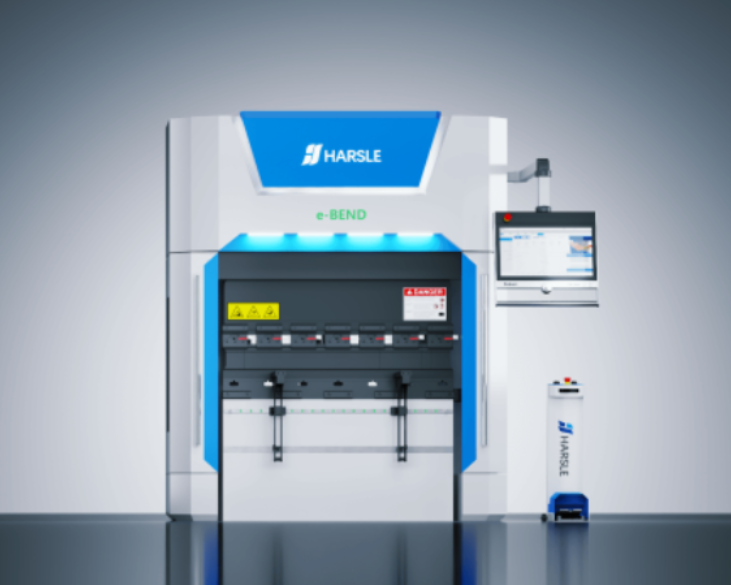

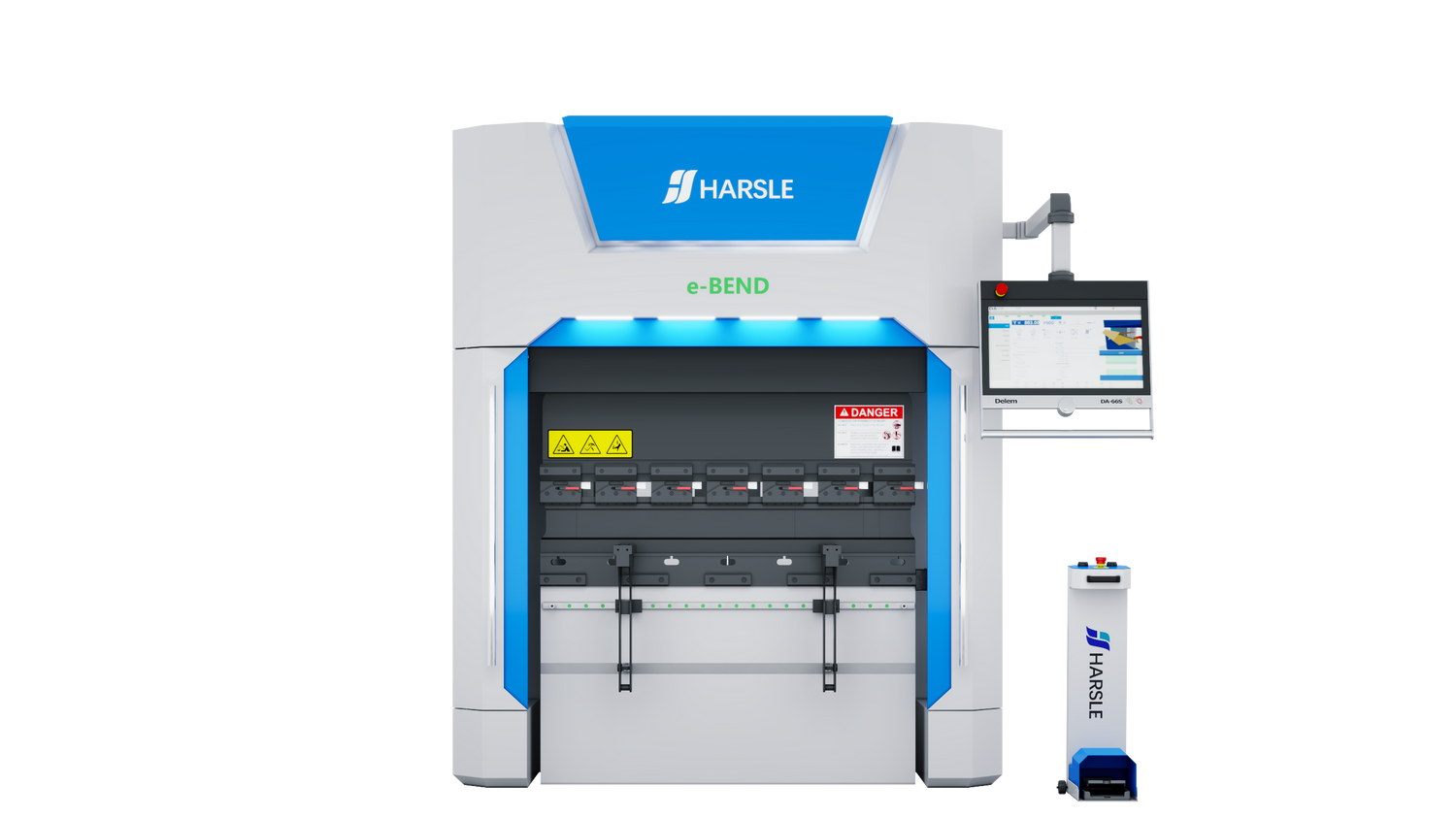

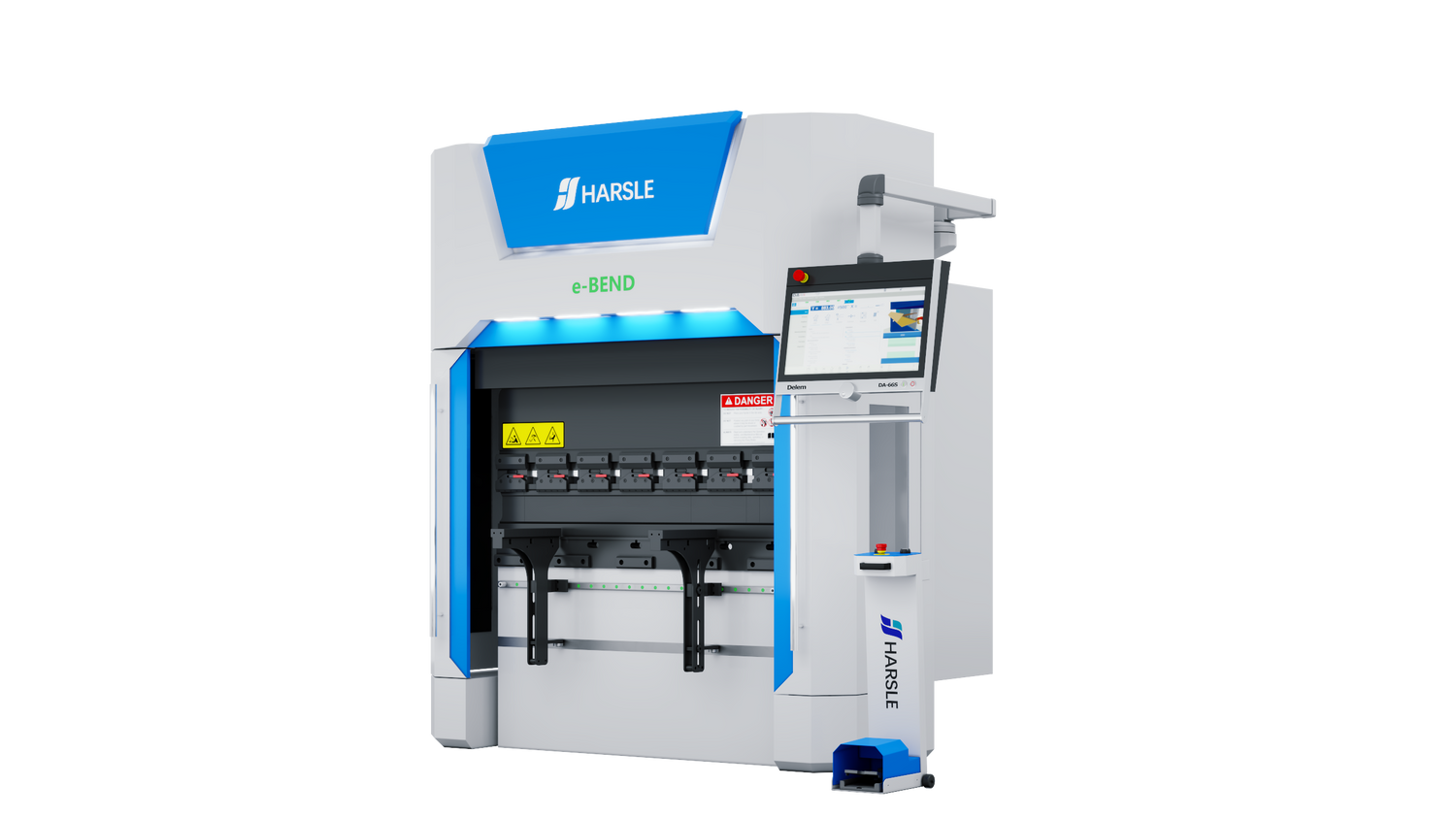

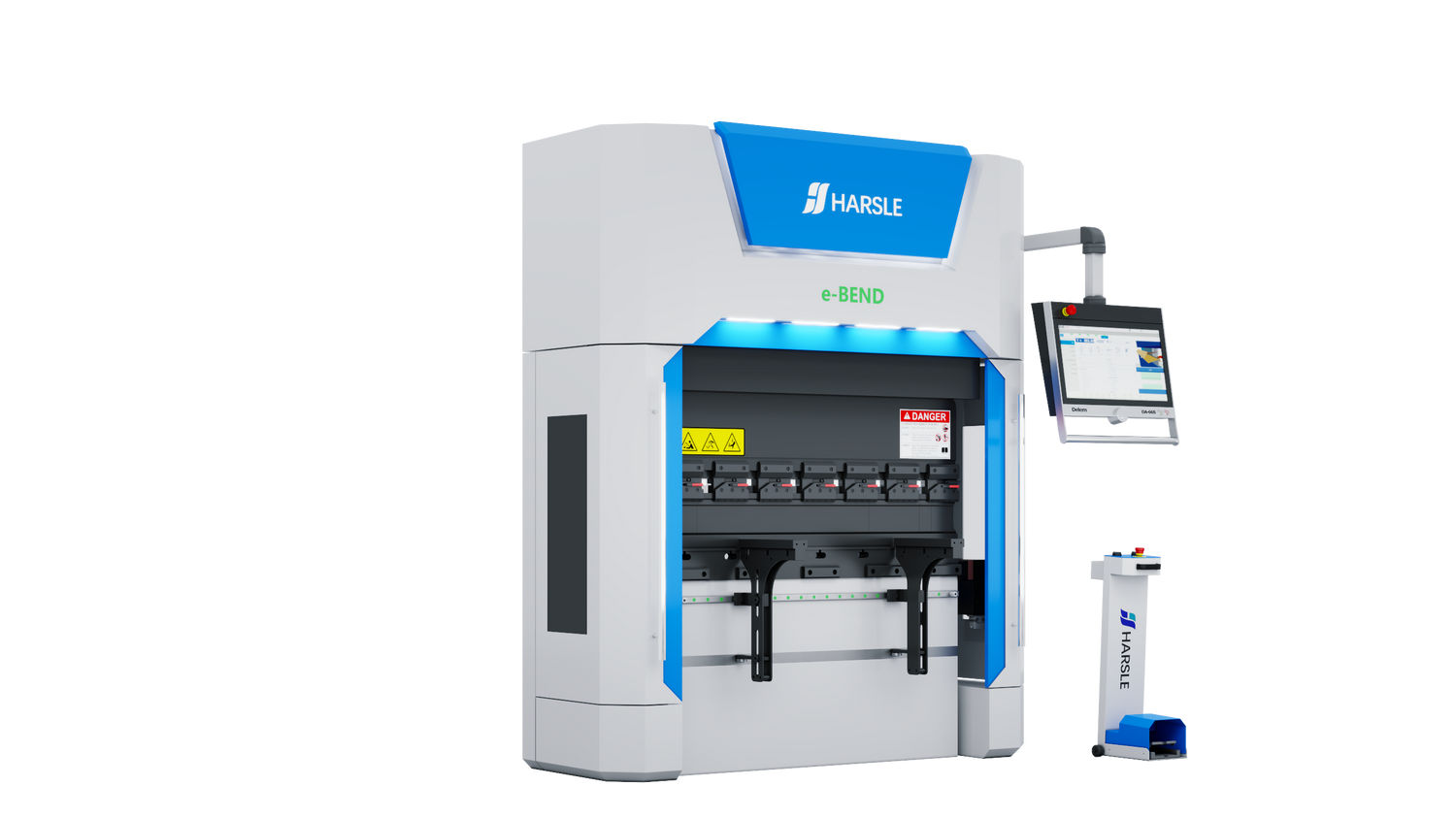

HARSLE E-Bend 4516 CNC Press Brake — 45T / 1600mm

All-electric drive meets zero emissions, engineered for high-speed precision.

Part of HARSLE's E-Bend series — Pure Electric High-Speed Series, built for high-speed small part production.

This 4516 configuration delivers 45 tonnes (450 kN) of bending force across a 1600mm bending length.

• 100% servo-electric drive — up to 80% lower energy cost than hydraulic
• ±0.01mm precision with no hydraulic oil compressibility/temperature drift
• Zero hydraulic oil — near-zero maintenance, no leak risk
• Vertical or horizontal direct-drive motor layout
• DELEM 58Tx / DELEM 53Tx touchscreen control
• Retractable support, angle measurement, laser line indicator options
• Laser protection supplied as standard

CNC Control Options

• DELEM 58Tx: 18.5-inch touchscreen with graphical programming, bending-process calculation and collision checking.
• DELEM 53Tx: 15.6-inch touchscreen with integrated 2D programming for intuitive, accurate operation.

Drive System

• Vertical Motor: Space-saving vertical motor layout with direct force transmission for stable, precise control in compact designs.
• Horizontal Motor: Balanced force distribution and smoother motion for high-speed, high-precision bending.

Why Go Pure Electric

Servo motors only draw power during active bending, cutting electricity costs by up to 80% versus hydraulic systems, while eliminating hydraulic oil compressibility and temperature drift for ultra-precise, repeatable positioning.

Safety Systems

• Light Curtain (Standard): Infrared light curtain safety system provides full-length protection along the bending zone, instantly halting ram movement when the safety field is breached.
• Laser Protection (Standard): Laser-based safety device mounted on the ram provides a narrow detection zone close to the tooling point, allowing faster approach speeds without compromising protection.
