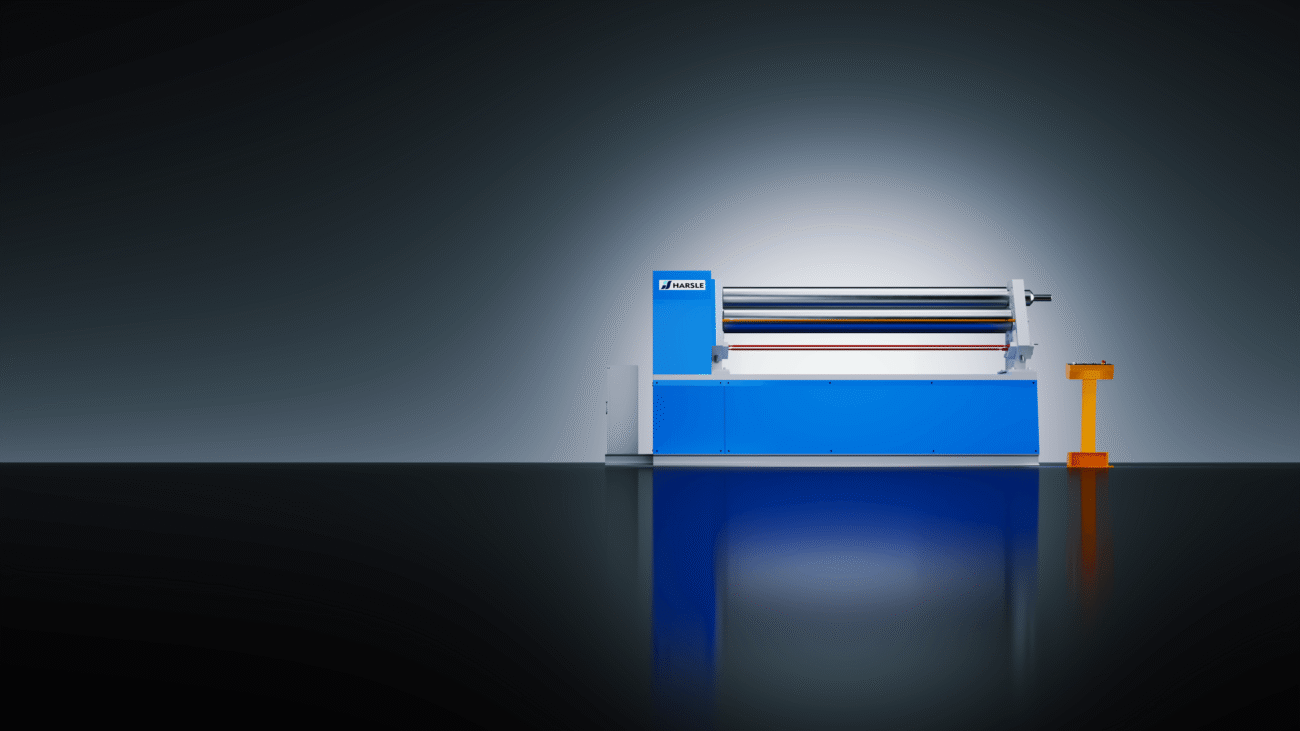

HARSLE AsyRoll 0420 Rolling Machine — 4mm x 2000mm
Freight quoted separately
Request a written quotation to confirm the selected configuration, availability and delivery cost.
Request a quote including freightProduct information
Built for flexible, efficient plate rolling.
Part of HARSLE's AsyRoll series — Asymmetric Plate Rolling Machine Series, built for Thin plate processing, cost-sensitive applications, single-setup feeding and bending.
This 0420 configuration rolls plate up to 4mm thick, with a maximum rolling width of 2000mm.
- Asymmetric offset lower roll enables feeding and bending in a single setup
- Removable upper roll for fast, convenient material loading and unloading
- Hand crank device for precise manual adjustment
- Reinforced frame minimizes deformation for stable, accurate rolling
- Optional winding cone attachment for tapered workpieces
- Optional slotted or rubber rollers for profiles and surface protection
| Max Rolling Thickness | 4 mm |
| Max Rolling Sheet Width | 2000 mm |
| Top Roller Diameter | 140 mm |
| Lower Roller Diameter | 140 mm |
| Side Rollers Diameter | 140 mm |
| Min Rolling Diameter | 200 mm |
| Rolling Speed | 4 m/min |
| Motor Power | 4 KW |
| Dimensions (L*W*H) | 2900*1100*1400 mm |
Frequently Asked Questions
What size AsyRoll do I need for 4mm plate?
The AsyRoll 0420 rolls mild steel plate up to 4mm thick, with a maximum rolling width of 2000mm. For harder materials, reduce the rated thickness accordingly (stainless steel is roughly 60% of the mild steel capacity, aluminum roughly 150%). Always choose a model with 20-30% extra capacity for occasional thicker materials.
Have more questions about HARSLE rolling machines? See our HARSLE Rolling Machines FAQ.
