Plate Rolling Machines

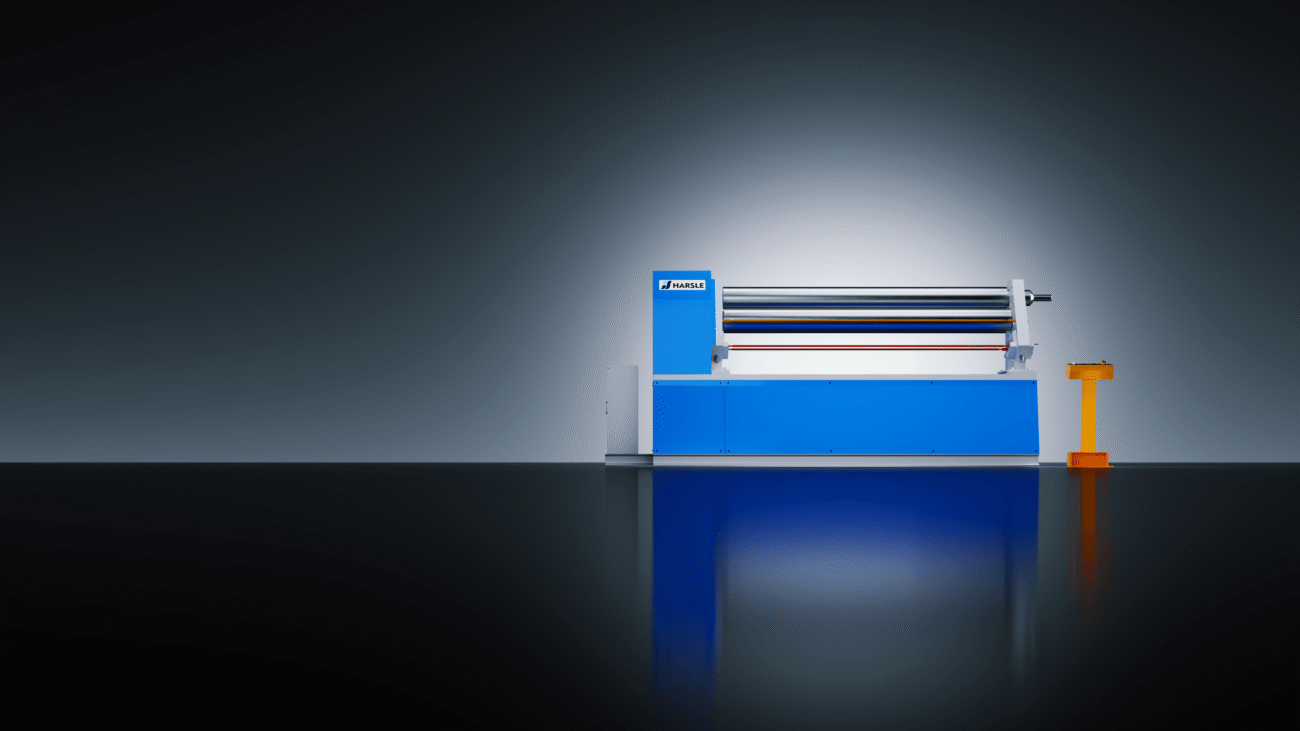

HARSLE AsyRoll 0210 Rolling Machine — 2mm x 1000mm
Freight quoted separately
Request a written quotation to confirm the selected configuration, availability and delivery cost.
Request a quote including freightProduct information
Built for flexible, efficient plate rolling.
Part of HARSLE's AsyRoll series — Asymmetric Plate Rolling Machine Series, built for Thin plate processing, cost-sensitive applications, single-setup feeding and bending.
This 0210 configuration rolls plate up to 2mm thick, with a maximum rolling width of 1000mm.
- Asymmetric offset lower roll enables feeding and bending in a single setup
- Removable upper roll for fast, convenient material loading and unloading
- Hand crank device for precise manual adjustment
- Reinforced frame minimizes deformation for stable, accurate rolling
- Optional winding cone attachment for tapered workpieces
- Optional slotted or rubber rollers for profiles and surface protection
| Max Rolling Thickness | 2 mm |
| Max Rolling Sheet Width | 1000 mm |
| Top Roller Diameter | 95 mm |
| Lower Roller Diameter | 95 mm |
| Side Rollers Diameter | 95 mm |
| Min Rolling Diameter | 130 mm |
| Rolling Speed | 4 m/min |
| Motor Power | 1.5 KW |
| Dimensions (L*W*H) | 1900*850*1100 mm |
Frequently Asked Questions
What size AsyRoll do I need for 2mm plate?
The AsyRoll 0210 rolls mild steel plate up to 2mm thick, with a maximum rolling width of 1000mm. For harder materials, reduce the rated thickness accordingly (stainless steel is roughly 60% of the mild steel capacity, aluminum roughly 150%). Always choose a model with 20-30% extra capacity for occasional thicker materials.
Have more questions about HARSLE rolling machines? See our HARSLE Rolling Machines FAQ.
Request a quote including freight
Tell us your requirements and delivery address so we can prepare a quotation including freight.
