Plate Rolling Machines

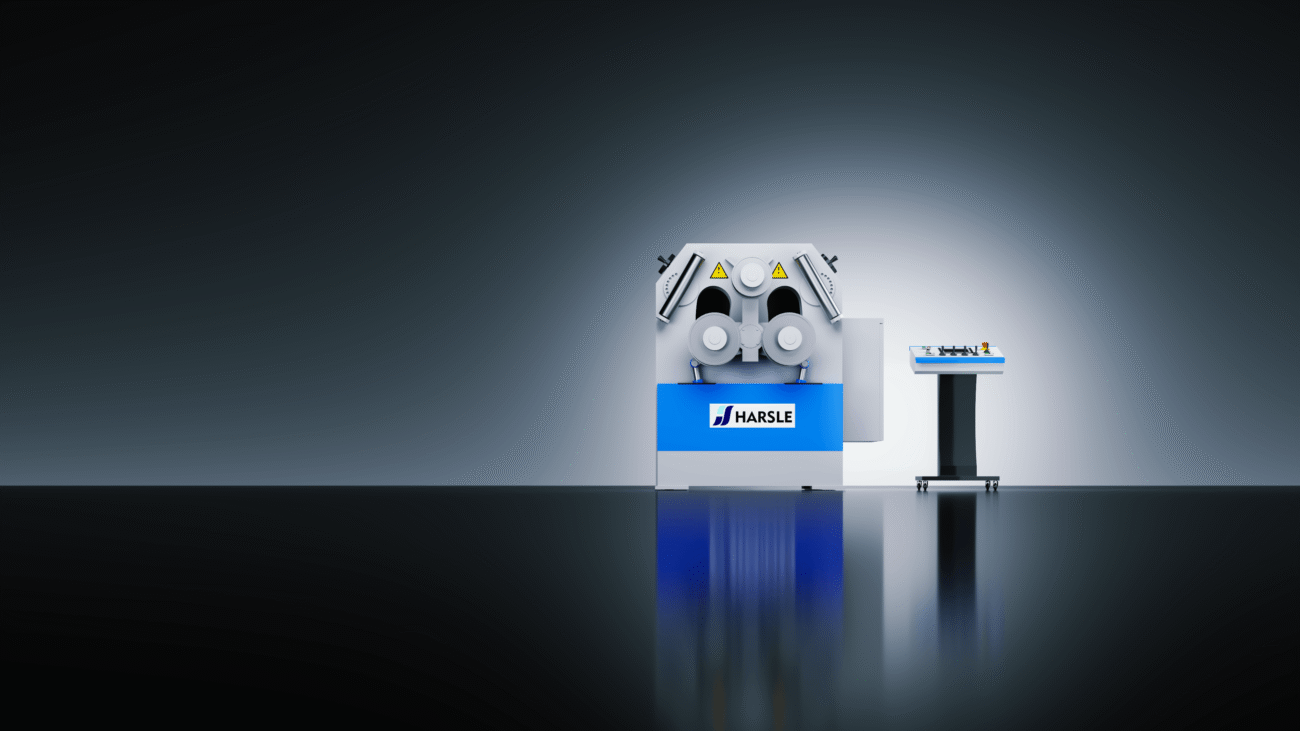

HARSLE AngleRoll 06 Rolling Machine — 6cm³ Section Modulus
Freight quoted separately
Request a written quotation to confirm the selected configuration, availability and delivery cost.
Request a quote including freightProduct information
Built for precise profile rolling.
Part of HARSLE's AngleRoll series — Profile Bending Machine Series, built for Structural steel fabrication, rolling angle iron, flat bar, round bar, square tube, and channel steel into arcs and rings.
This 06 configuration bends structural profiles up to 6cm³ section modulus.
- Three driven rollers apply continuous pressure to gradually form the desired radius
- Available in horizontal layout (long/heavy profiles) or vertical layout (compact workshops)
- Drive roll and support roll work together for stable force transmission
- Hydraulic system delivers stable force output and smooth roll movement
- Precise control system for accurate parameter adjustment
- Custom molds/tooling support various profile shapes and materials
| Profile Max Section Modulus | 6 cm³ |
| Bending Speed | 4~5 m/min |
| Hydraulic System Pressure | 25 MPa |
| Cylinder Quantity | 2 set |
| Motor Quantity | 1 set |
| Motor Power | 4 KW |
| Upper Roller Diameter | 75 mm |
| Lower Roller Diameter | 75 mm |
| Dimensions (L*W*H) | 2200*1500*1500 mm |
Frequently Asked Questions
What size profiles can the AngleRoll 06 bend?
The AngleRoll 06 handles structural profiles up to 6cm³ section modulus — covering angle iron, flat bar, round bar, square tube, and channel steel depending on the profile shape. Our technical team can confirm exact capacity for your specific profile dimensions.
Have more questions about HARSLE rolling machines? See our HARSLE Rolling Machines FAQ.
