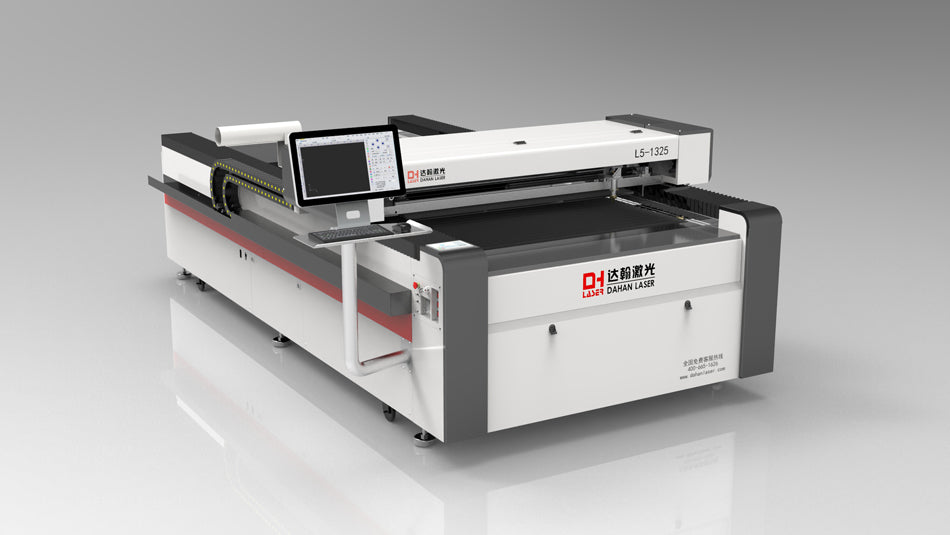

Dahan L5 Co2 Laser Cutting and Engraving machine

Product information

Description

New to the Australian Market

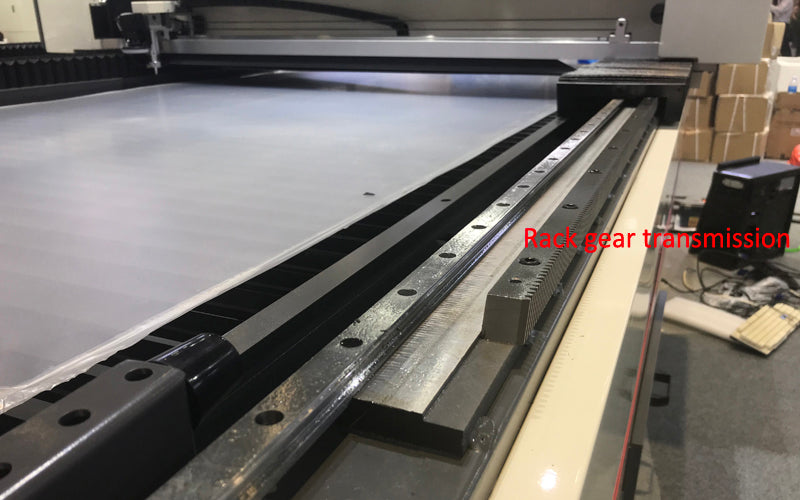

L5 model adopts Y rack gear transmission, X axis belt transmission.
The special design ensures the machine is fast and accurate when cutting and engraving non-metal materials.

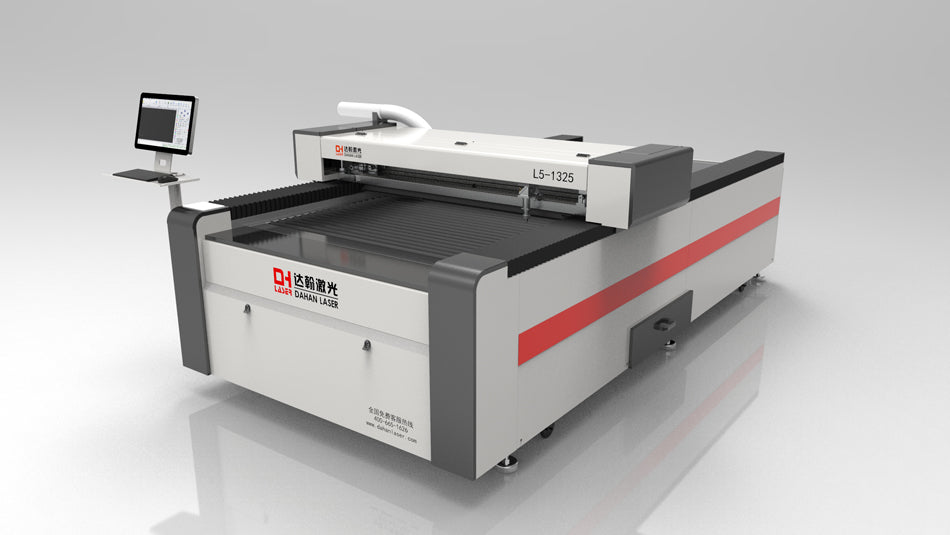

L5-1325
Available in 100W, 150W, and 300W

The Dahan L5 laser cutting and engraving machine range with it 2500mm x 1300mm bed has been designed to suit even the toughest of user and can handle larger format material to give you even more versatility and higher production rates than small machines.

It does not matter if you're cutting thin or thick non-metal materials there is a machine that is just perfect for you. Ranging in power from 100W to 300W with a precision Rack and Pinion drive for the high load Y movement and fast and efficient belt drive system on the X movement we a have a quality machine to fit even the tightest of budgets.

The Ruida control system fitted to this machine ensures that the machine is simple and easy to use.

The 150W machine allows you to cut up to 18mm acrylic and 20mm mdf/ply in one pass

If you need a camera system to cut preprinted material well we have got you covered. Each machine has our CCD 3 point camera system as an affordable optional extra.

The large bed size and the open design of the machine allows for easy loading of full size sheet for cutting.

A top of the range S&A water chiller is included with all the machines. Extraction fan and small air pump are also included.

We supply SLW C02 Glass Laser tube system all our machines. We believe these are the best systems in the market and these tubes just like the machine is backed with a 12 month warranty. Most if not all our competitors offer 6 to 10 month warranty on their tubes.

MACHINE FEATURES AT A GLANCE
* Optional bed sizes, 130*250 CM, 150*300 CM, 200*300 CM, ETC.
* Includes 150 Watt CO2 laser tube or optional 100W/150W/300W (Expected life: 10000 hours)
* Laser software : directly output from CorelDraw or AutoCAD. Works with most graphic programs.
* All mirrors and focal lenses are II-VI from America simply the best and proven to provide up to 10% better beam transmission performance than other cheaper optics.
* Powerful exhaust fan with venting for removing fumes and smoke
* Air blower powers laser head air-assist to keep laser area clean and cool
* Standard equips CW5200 water chiller keeps water flowing through through CO2 Tube at ambient temperature.
* Exhaust fan to keep laser clean and cool (Included in price!)
* Standard knife Blade platform for cutting and engraving or optional honeycomb platform.
* Drawer in machine conveniently collects finished product
* Taiwan Linear guides promotes smooth & precise laser movement
* Windows 10, 8, 7 (64 or 32 bit), XP, 2000 compatible
* Industrial machined components in stock for long term reliability
* 24 HOURS PHONE or REMOTE PC ACCESS TECH SUPPORT
* One (1) Full Year Warranty on laser machine and parts, wearing parts or consumption like mirrors, lens, belts are not included.

All this matched with the RDWorks or Lightburn Software laser cutting and engraving software gives you a powerful yet easy to use design and operating system. The RDWorks and Lightburn software supports .PLT * .DST * .AI * GLD * .DXF * DWG formats. RDWorks is compatible with PC and Lightburn is compatible with both PC and MAC OS computers. The Lightburn software package features easy, intuitive functionality. Click here to trial the Lightburn software

As an option we can supply you with fume extraction systems which are highly recommend for home, office and in fact anywhere where the smell of the laser cutting may be a problem.
