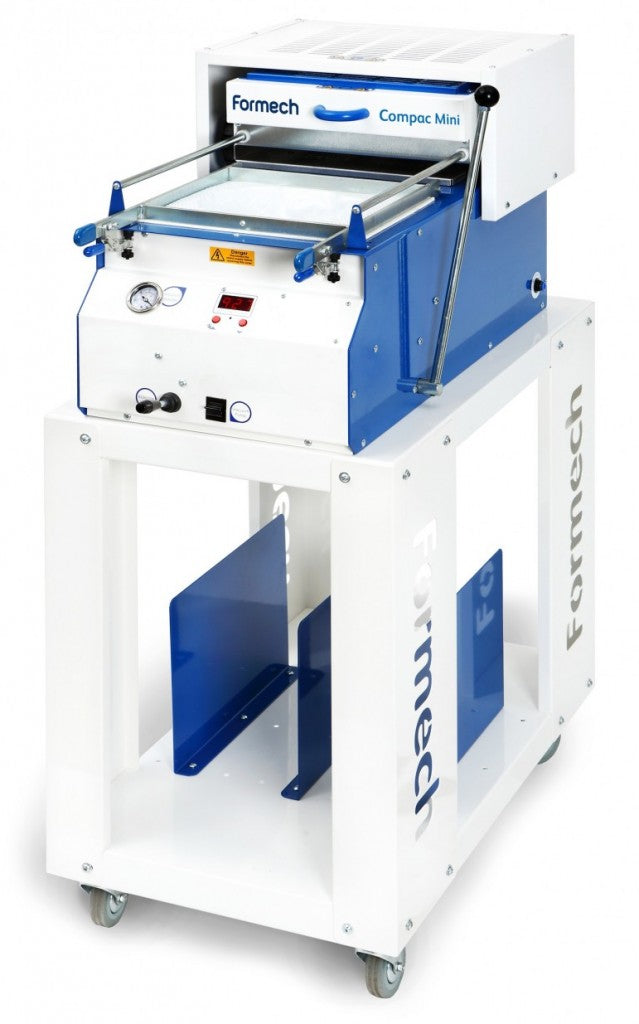

Formech Compac Mini

Product information

Easy to operate and experiment with, Formech’s plug n’ play single zone compac mini is the perfect solution for hobbyists and first time users.

Incredibly compact and efficient with the latest quartz heaters, yet hugely capable and robust enough for professional use.

Formech’s interlocking feature prevents the table being raised whilst the heater is in the forward position ensuring safe operation for inexperienced operators. A digital timer with audible warning helps achieve consistent cycle times.

Features

Quartz Heaters
Quartz heaters have the benefit of a rapid response and high efficiency resulting in time and energy savings.

Safety Interlock
Mechanical interlock prevents table being raised whilst heaters are in forward position (all desktop machines).

Vacuum & Release
After the formed part has cooled, air is forced between the mould and the sheet to help it release.

Vacuum Gauge
A visual indication of consistent vacuum pressure being applied (pressure in Hg / bar).

Digital Timer
Digital timer with programmable countdown and audible alarm helps achieve consistent cycle times.

Technical Specs

Forming area (mm/inches)	230 x 280mm / 9 x 11"
Sheet Size (mm/inches)	250 x 300mm / 10 x 12"
Max depth of draw	130mm / 5"
Max Material Thickness	4mm / 0.15"
Heating Zones	1
Heater type	Quartz
Width	440mm / 17.3"
Height	425mm / 16.7"
Depth	835mm / 32.9"
Weight	33kg / 73lbs
Single Phase Power Requirements	208-240V/13A
Europe - 3 Phase Power Requirements	N/A
USA - 3 Phase Power Requirements	N/A
Power Consumption	0.95W
Air Requirements	N/A

Options

Reducing Windows
Reduces forming area to utilize smaller sheets of material and minimize wastage. Standard or custom size.

Trolley
A dedicated white trolley with locking wheels and convenient storage for plastics sheet.

Starter Pack of Plastic
Spare parts kit
A consumable parts kit typically including seals, elements, filter, fuses, toggle clamps.
