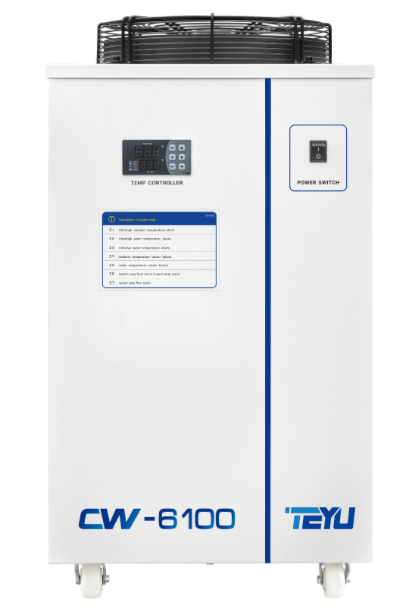

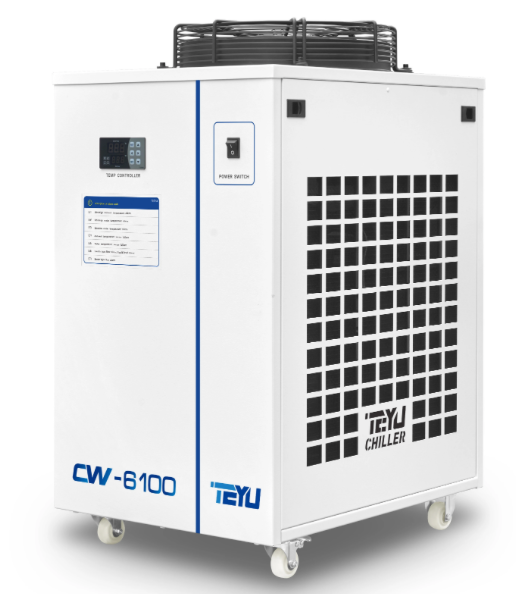

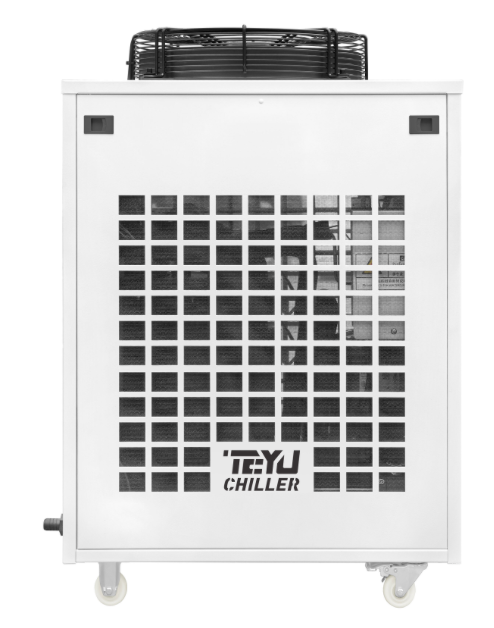

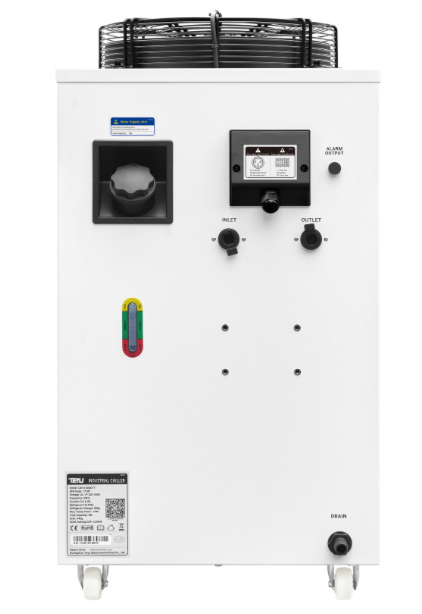

S&A (TEYU) CW-6100AN230TY Industrial Water Chiller (50Hz)
Keep your laser or industrial equipment running cool, stable, and reliable with the S&A (TEYU) CW-6100AN230TY — a heavy-duty industrial water chiller built for consistent temperature control in production environments.
Designed for demanding applications like fibre laser cutting and welding, CNC equipment, and other temperature-sensitive machinery, the CW-6100AN230TY delivers strong cooling capacity with excellent temperature stability (±0.5°C) to help protect critical components, reduce overheating-related faults, and improve overall process consistency.
With a robust refrigeration system, high-flow pump performance, and built-in alarms and fault display functions, it’s a trusted choice where uptime matters.
Key Benefits
-
Stable cooling for consistent results – helps maintain steady operating temperature for repeatable performance
-
Protects your investment – reduces heat stress on sensitive components and systems
-
Industrial-ready reliability – designed for continuous use in workshop and factory environments
-
Built-in alarms & fault display – supports safer operation and easier troubleshooting
-
High-flow circulation – suitable for demanding water circuits and typical industrial hose runs
Typical Applications
-
CO2 laser cutting machines
-
Laser welding systems
-
CNC routers and spindles
-
Industrial process cooling and chilled water circulation
-
Any equipment requiring reliable closed-loop water cooling
Specifications (CW-6100AN230TY – 50Hz)
-
Model: CW-6100AN230TY (50Hz)
-
Power supply: AC 1-phase 220–240V, 50Hz
-
Nominal cooling capacity: 4.0 kW (13,648 BTU/h / 3,439 Kcal/h)
-
Temperature stability (precision): ±0.5°C
-
Refrigerant: R-410A
-
Pump: 0.37 kW
-
Max pump pressure: 2.7 bar
-
Max pump flow: 75 L/min
-
Tank capacity: 22 L
-
Connections: Rp1/2" inlet/outlet
-
Max power consumption: 1.62 kW
-
Current: 2.3–8.1A
-
Dimensions (L×W×H): 67 × 47 × 89 cm
-
Weight: 55 kg net / 66 kg gross
-
Package dimensions (L×W×H): 73 × 57 × 105 cm
