AXIS SANS CO₂ Laser Cutting and Engraving Machine – 1300 × 900mm

Product information

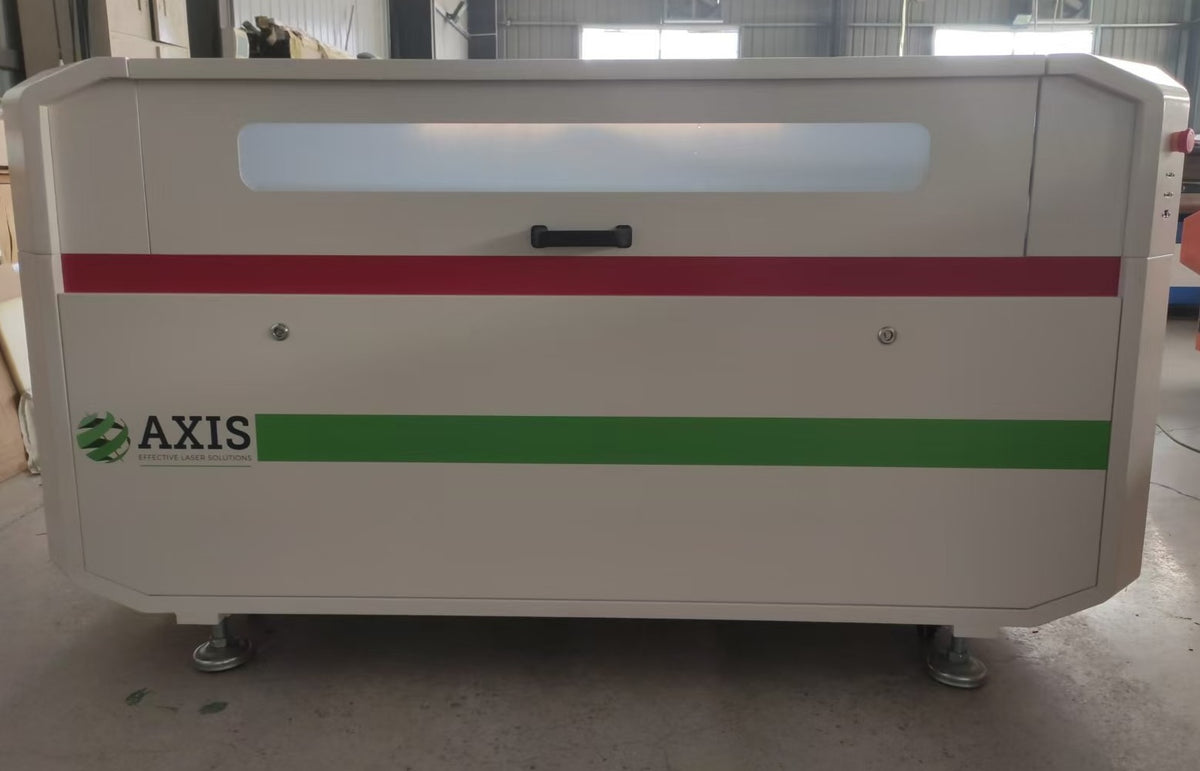

The AXIS-SANS is a fully enclosed CO₂ laser cutting and engraving machine with a 1300 × 900mm cutting table, built especially for high-speed engraving with servo drive motors and belt-drive transmission. Available with an 80W, 100W or 150W CO₂ laser tube.

FEATURES AND ADVANTAGES

• Choice of 80W, 100W or 150W CO₂ laser tube (tube warranty 10 months)
• 1300 × 900mm cutting table capacity
• X and Y belt transmission with linear guides for the highest engraving speeds
• Leadshine servo drive motors for exceptional speed, accuracy and repeatability
• Hidden guide-rail structure on all inner transmission rails, for faster speeds and to stop smoke ageing and gumming up the rails
• II-VI focus lens and premium mirrors, proven to give up to 10% better beam transmission than cheaper optics
• Red-light pointer for quick, accurate job positioning
• Powerful fume extraction
• Air blower supplies laser-head air assist to keep the cutting area clean and cool
• S&A Teyu industrial water chiller keeps the CO₂ tube at a constant operating temperature
• Aluminium strip-knife cutting table as standard, or optional honeycomb table
• Drawer conveniently collects finished parts
• Machine components held in stock for long-term reliability

SOFTWARE

Supplied with RDWorks or LightBurn laser software. Output directly from CorelDRAW, AutoCAD and most graphics programs, with support for PLT, DST, AI, GLD, DXF and DWG files. RDWorks runs on Windows; LightBurn runs on both Windows and Mac and is easy and intuitive to use.

OPTIONS

• CCD camera for tracing print position and edge cutting of printed material
• Fume extraction systems, highly recommended wherever the smell of laser cutting may be a problem, including homes, offices and shared workshops
• Onsite setup, commissioning and training, quoted on request

WARRANTY AND SUPPORT

One full year on the laser machine and parts. Wearing parts and consumables such as mirrors, lenses and belts are not included. The laser tube carries a 10-month warranty.

Every machine comes with lifetime online and phone technical support from the Plasquip team.

SPECIFICATIONS

• Model: AXIS-SANS13090ENG
• Cutting table capacity: 1300 × 900mm
• Laser: 80W, 100W or 150W CO₂ glass tube
• Drive: Leadshine servo motors, belt transmission, linear guides with hidden guide-rail structure
• Optics: II-VI focus lens, red-light pointer
• Cutting table: aluminium strip-knife (honeycomb optional)
• Cooling: S&A Teyu industrial water chiller
• Power requirement: 230V AC, 15 amp power socket
• Enclosure: fully enclosed

Prices are ex GST, based on pickup from Melbourne. Request a quote for delivered pricing.
