SPECIAL OFFER — 1 ONLY: 6kW SAN-EG arriving in Sydney early October
We have one uncommitted 6kW SAN-EG Advanced (1550 × 3100 mm bed) landing in Sydney in early October. For this one machine only, we include free setup, commissioning and operator training on site. Request a quote to secure it.

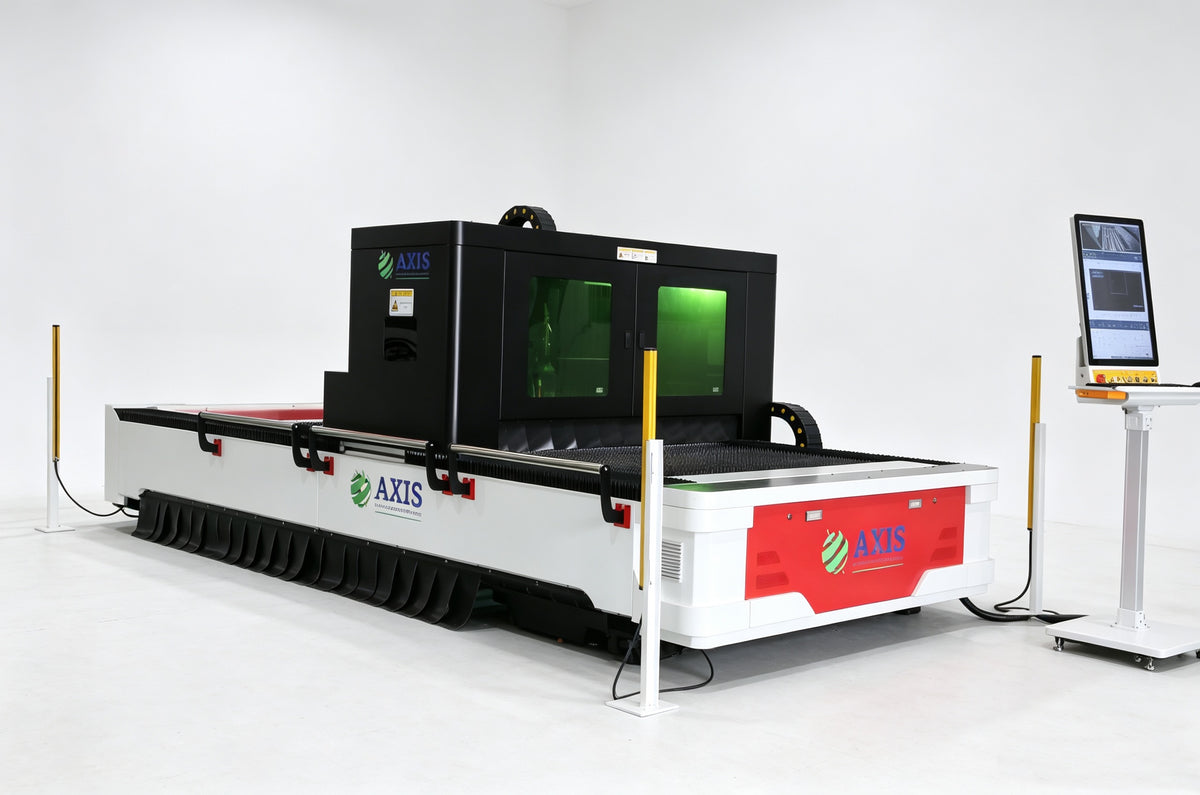

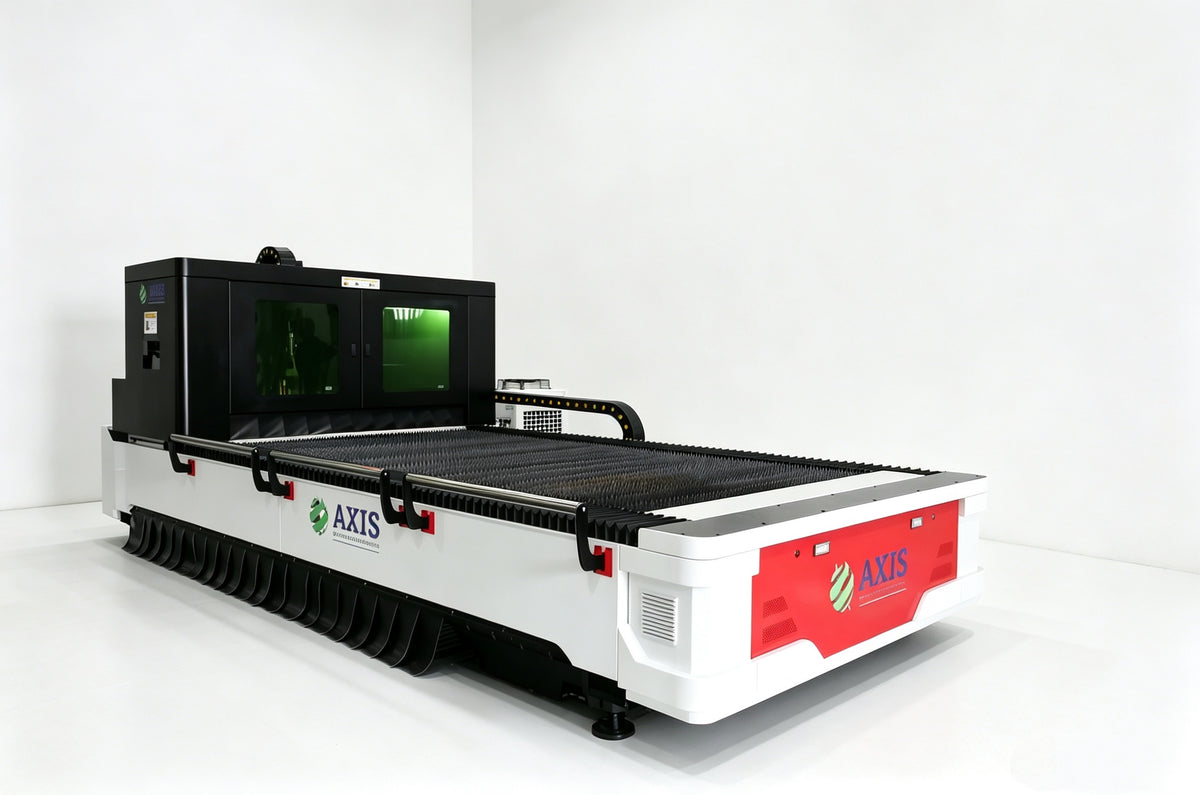

The AXIS SAN-EG Advanced keeps the speed and easy loading of an open-bed workflow but adds an enclosed gantry that shields a much larger area around the cutting head. That extra shielding contains reflections, reduces heat and fume turbulence, and creates a cleaner, more stable cutting environment — the next best thing to a fully enclosed machine, with the loading advantages of an open bed. Power options run up to 12kW.

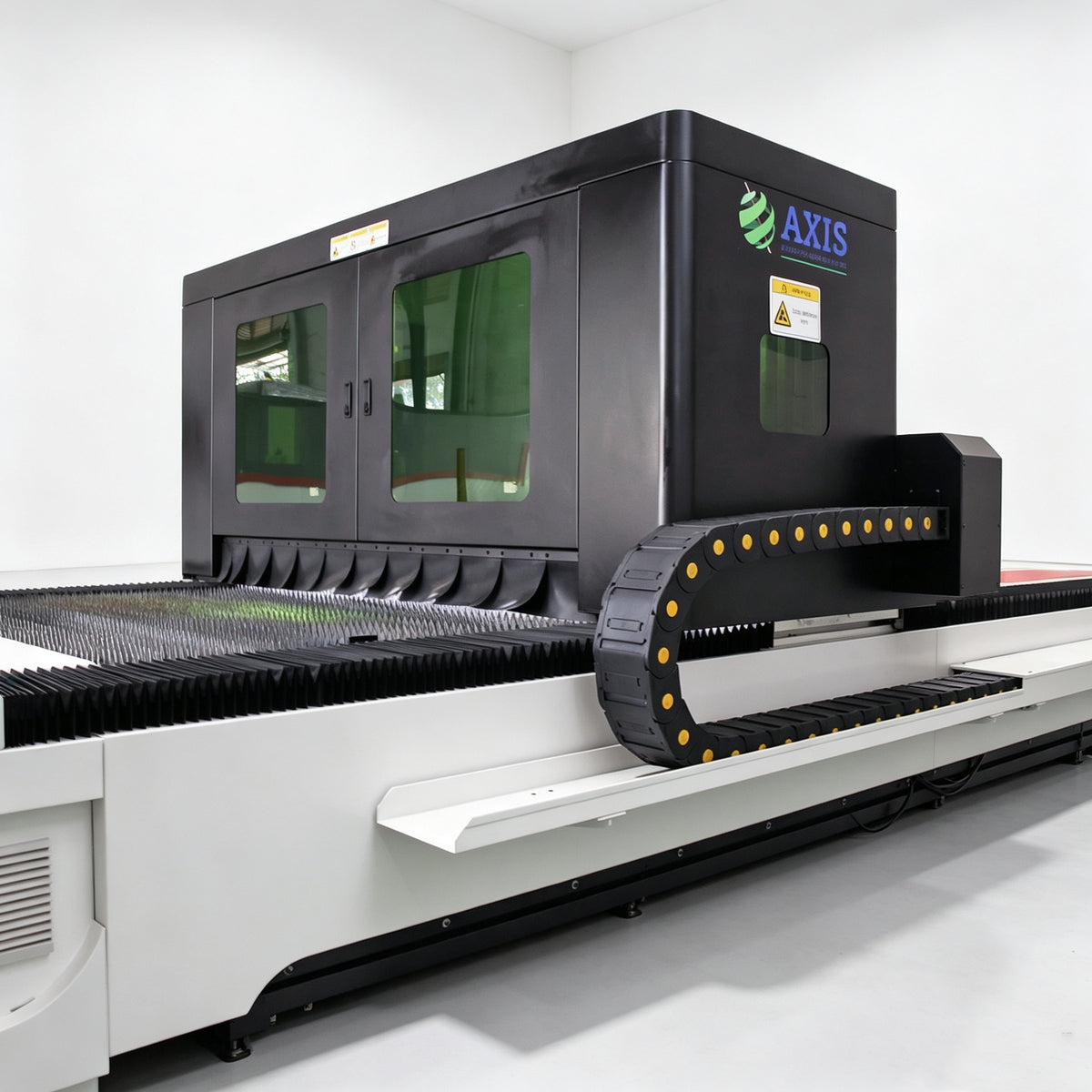

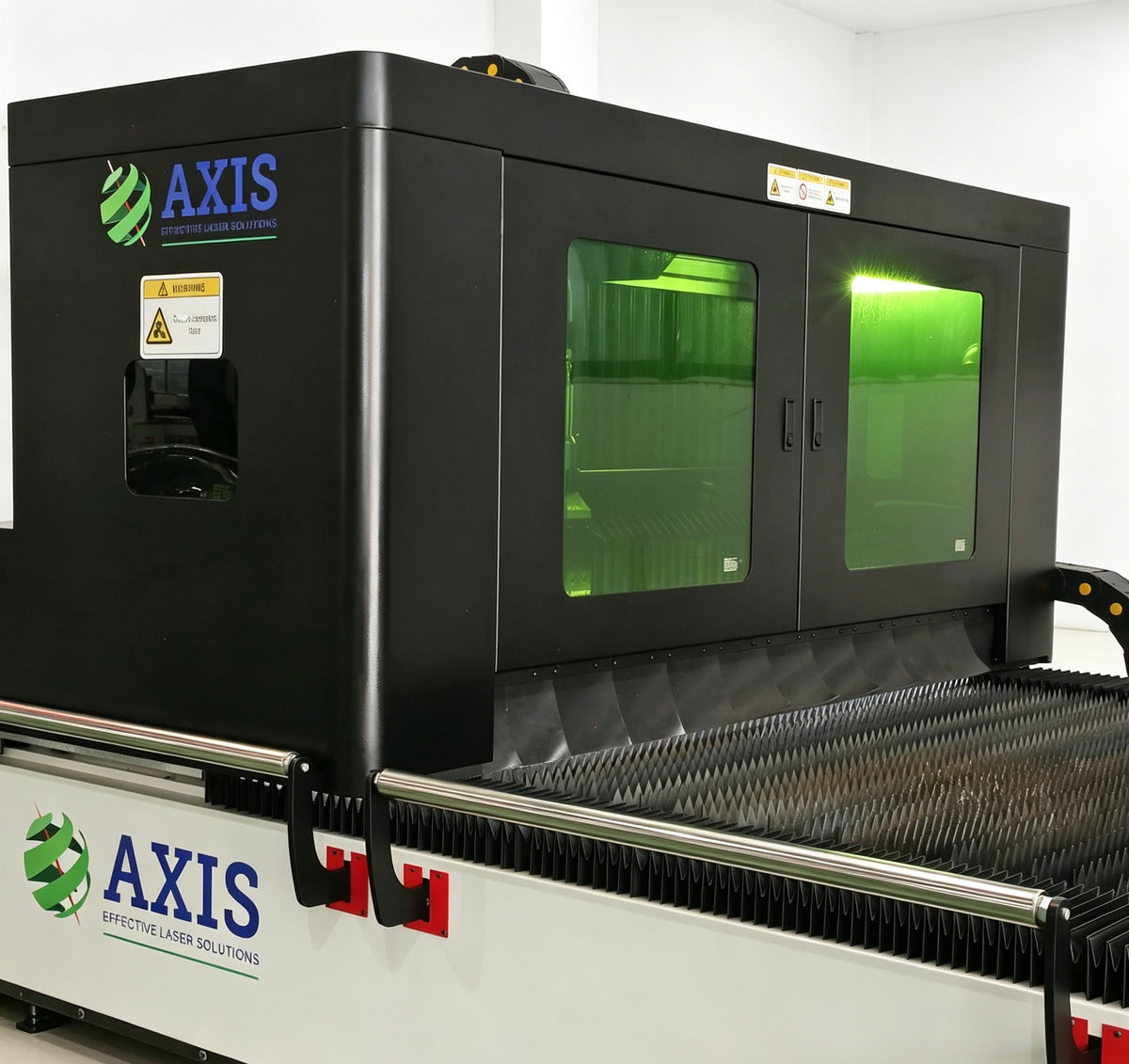

Enclosed gantry built to protect your operators

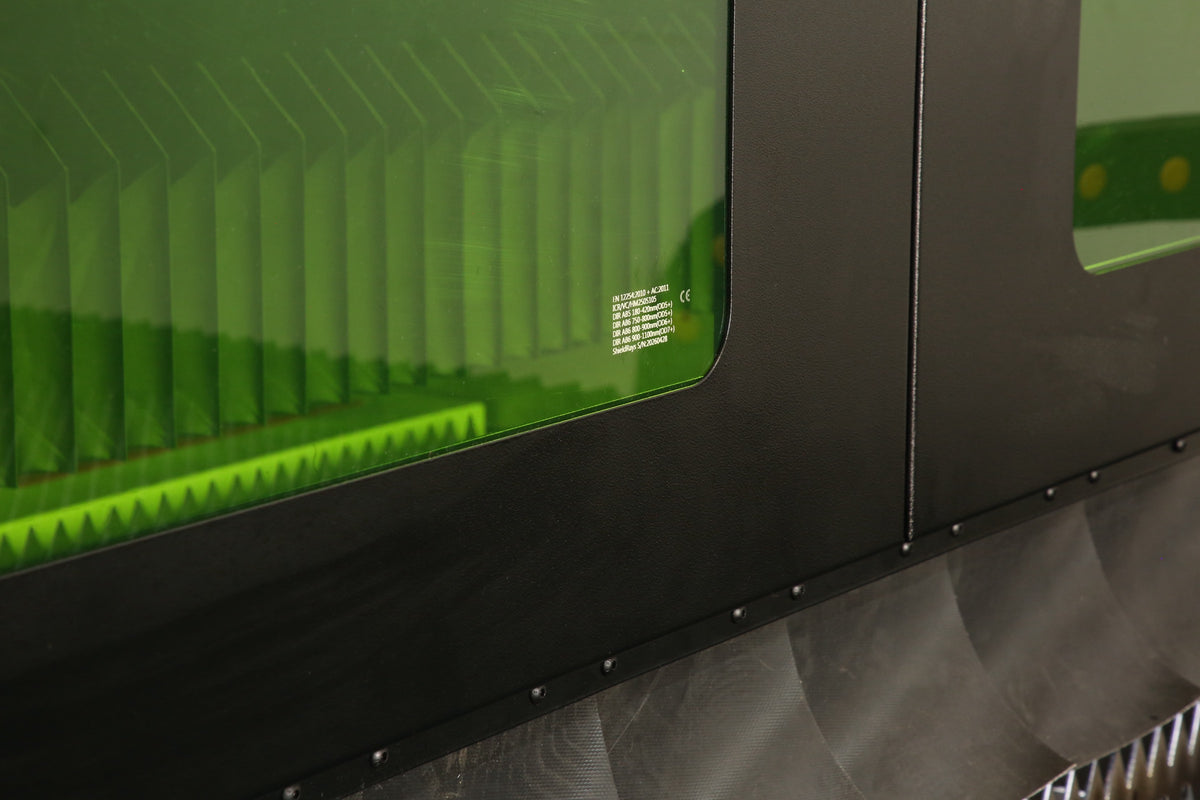

- CE-certified laser-safety viewing windows on both sides, rated for 1064nm

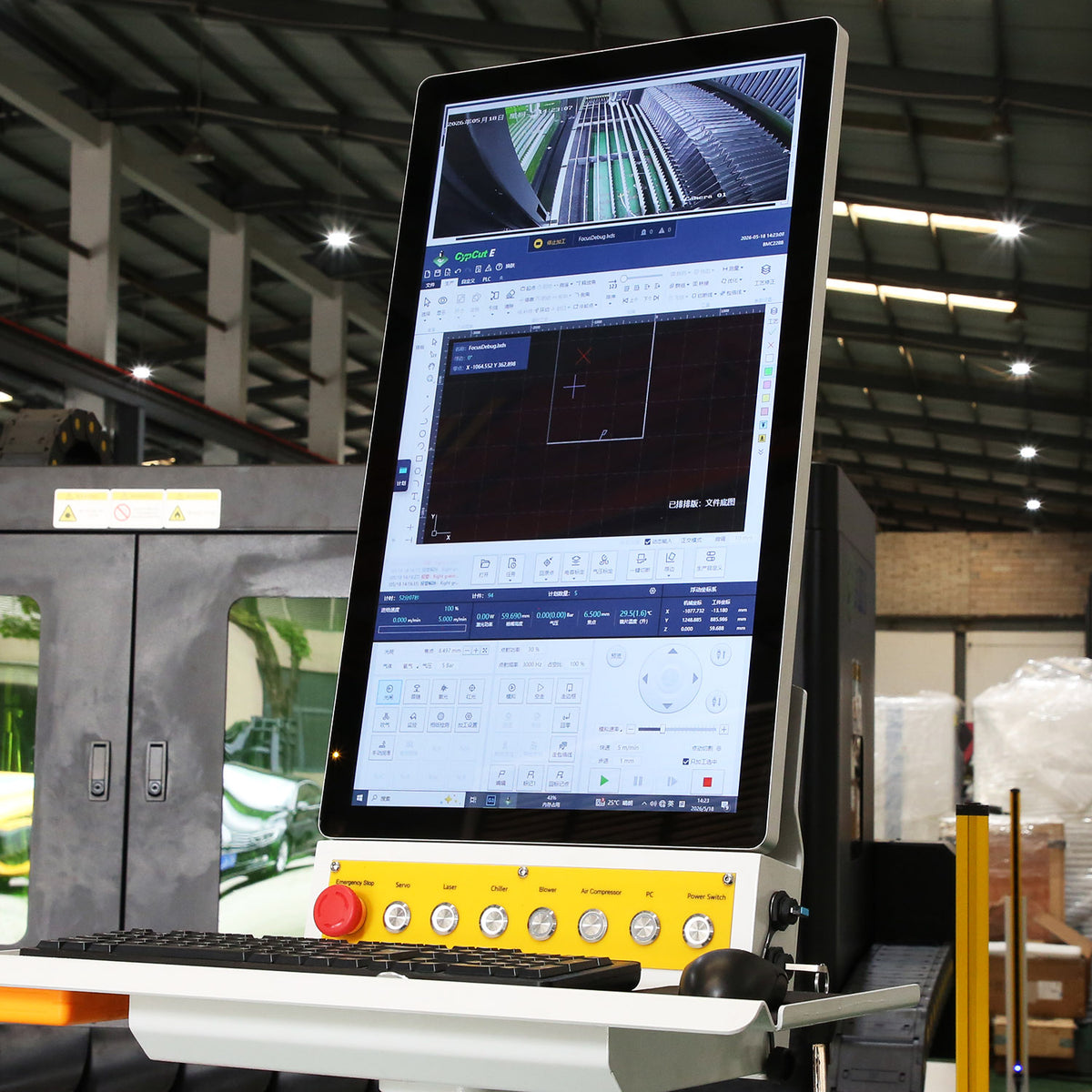

- Internal camera streaming the cut live to the control screen
- Matte-black low-reflection interior to control stray light
- Heat insulation bricks under the cutting area
- Dustproof curtains around the base and gantry

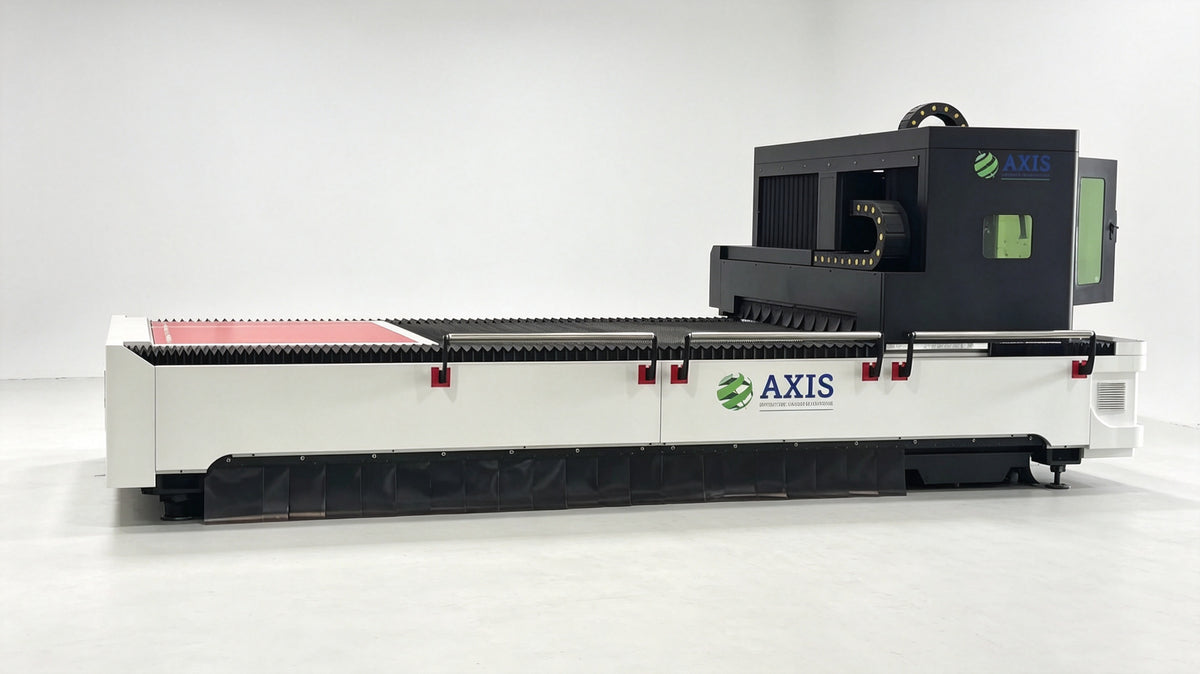

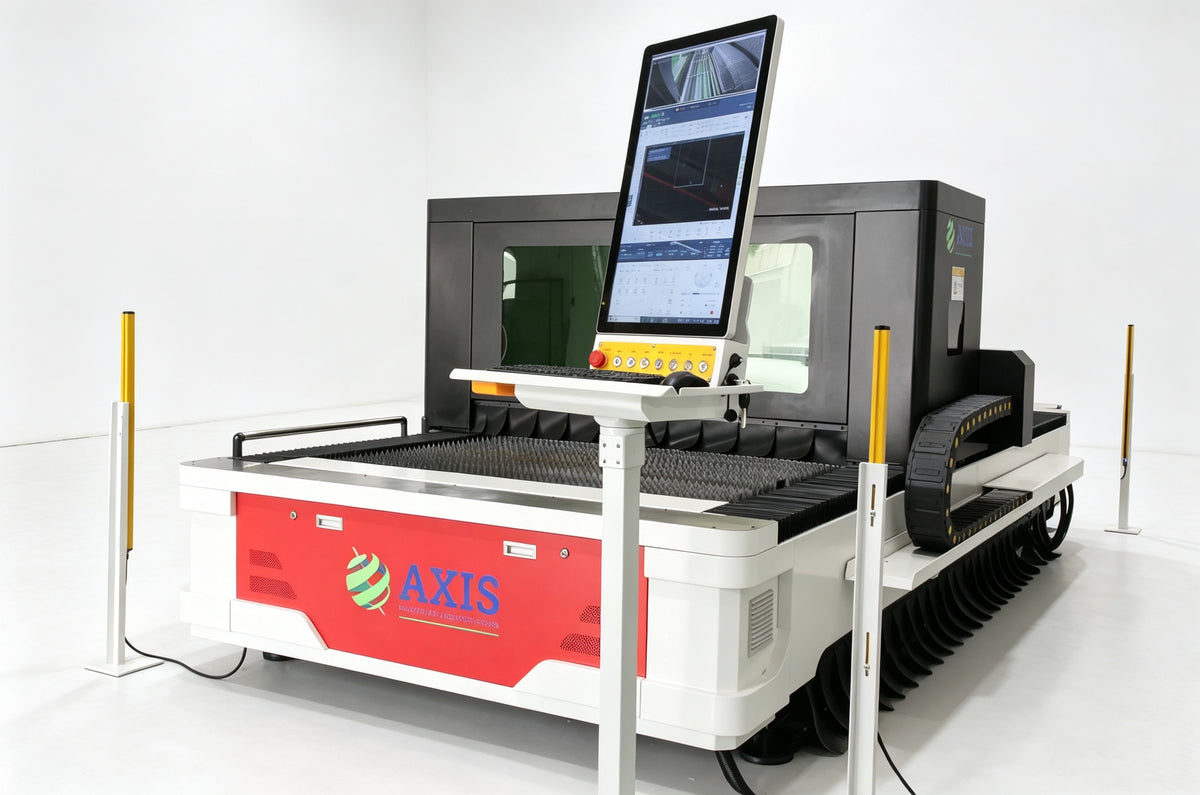

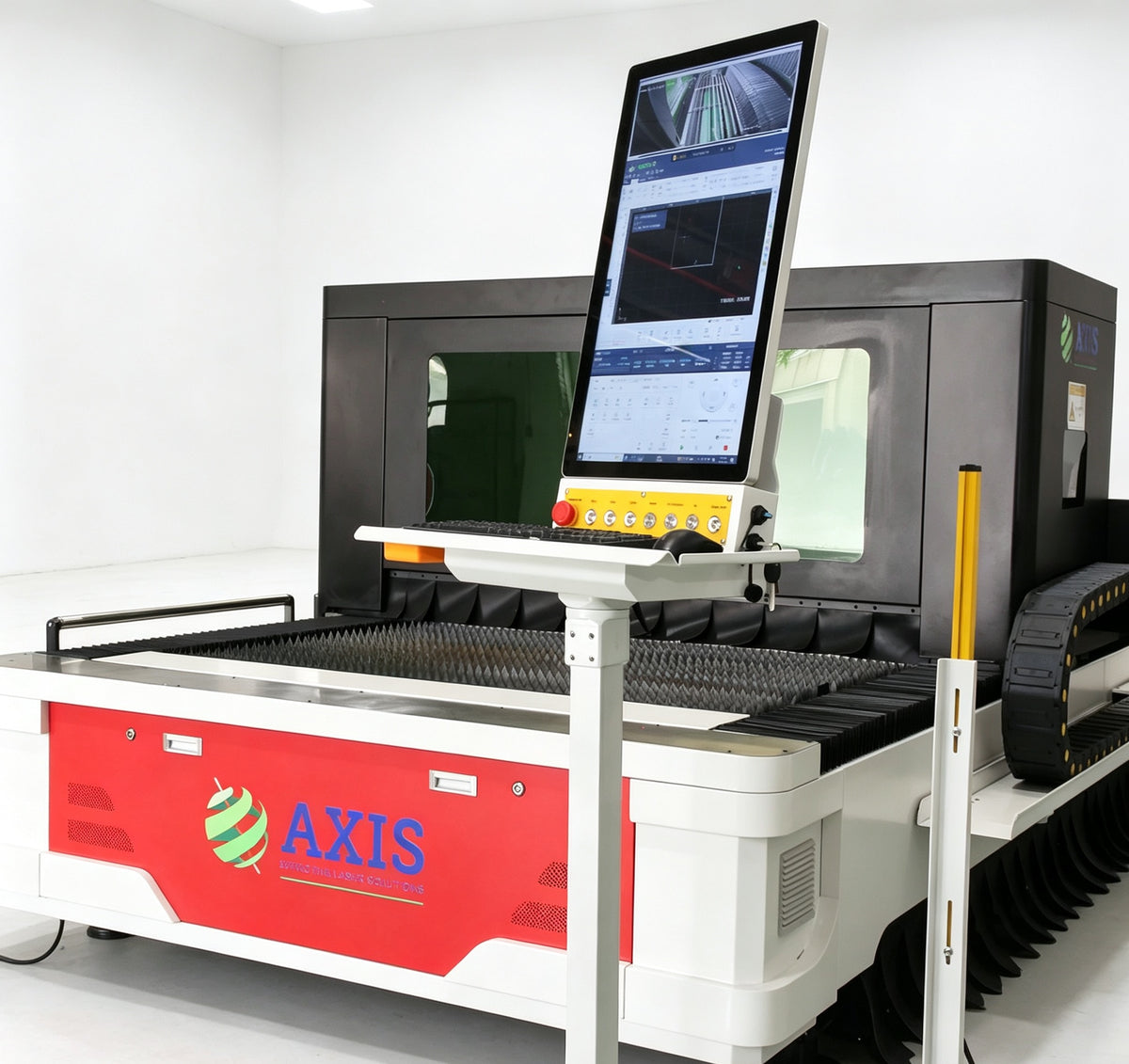

- Optional light curtains for extra perimeter safeguarding, and an optional stand-alone controller
It is the recommended AXIS open-bed option for reflective materials such as aluminium, copper and brass.
True proportional gas control
A Fenton proportional control valve gives true proportional control of oxygen, nitrogen and compressed air — not fixed-step control, and not oxygen alone. That makes the SAN-EG well suited to de-filming and cutting Colorbond.
Fully matched BOCHU architecture

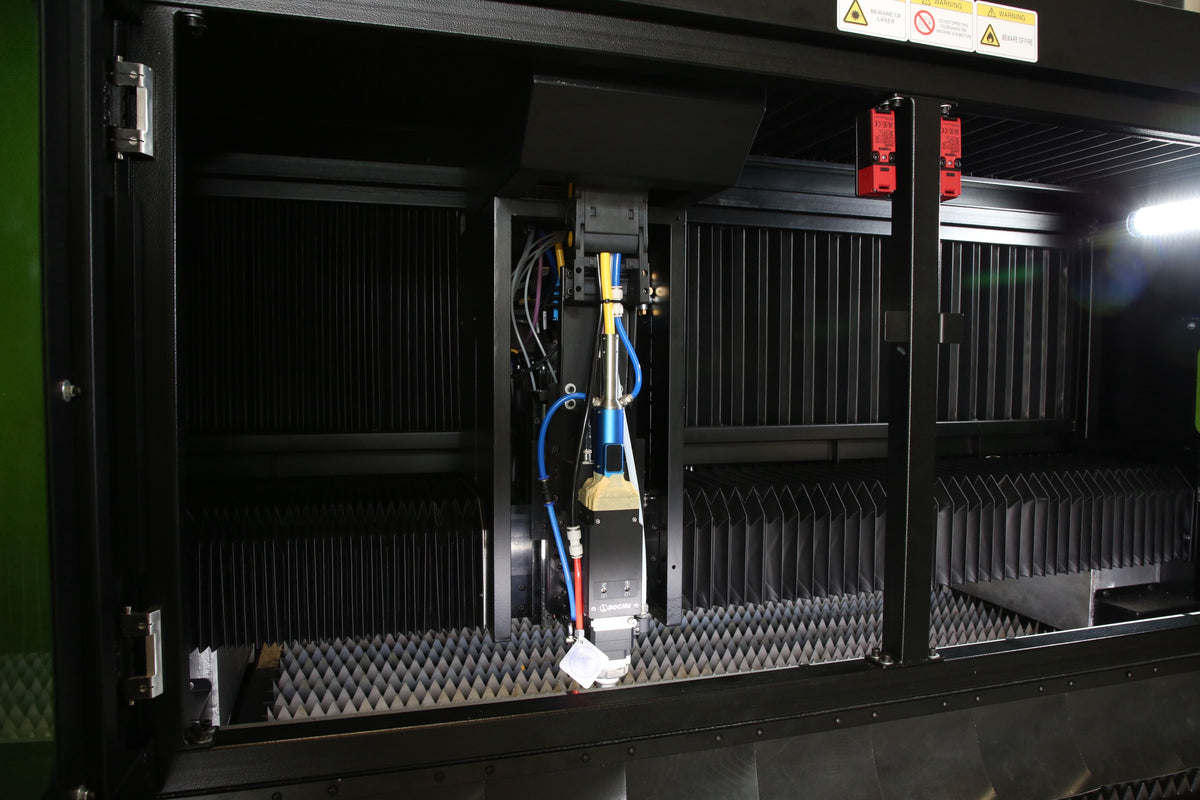

BOCHU controller, BOCHU BOCI cutting head and BOCHU servo drives work as one system rather than mixed components bolted together. The control platform includes advanced nesting, automatic geometry clean-up, micro-joint control, dynamic corner slow-down and multi-stage piercing, and the machine arrives pre-loaded with proven cutting parameters for standard materials and thicknesses.
Built properly, built to Australian Standards
- Aviation-grade extruded 6061 aluminium crossbeam, genuine Taiwan JT rack and Taiwan DTX guide rails
- Bed heat-treated, annealed and precision-machined for a stress-free frame that resists twisting over years of use
- Frame plasma cutting, welding, furnace annealing, CNC gantry milling and finishing done in-house
- 24VDC control circuit, correctly sized circuit breakers and fully labelled wiring to Australian Standards
- Safety interlocks on access doors and monitored emergency-stop circuits
- Every machine checked with a laser collimator and laser interferometer before leaving the factory
Installation

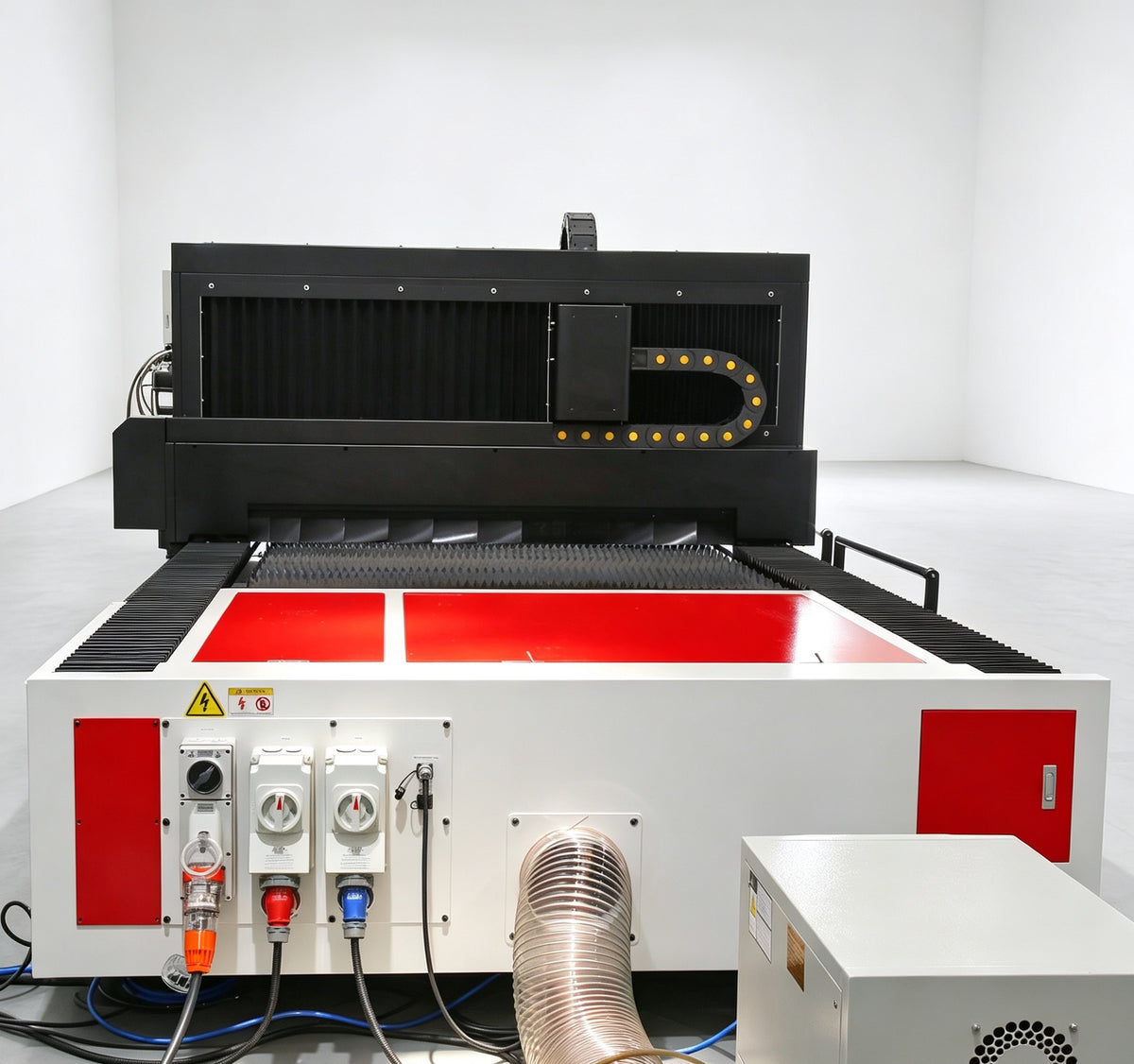

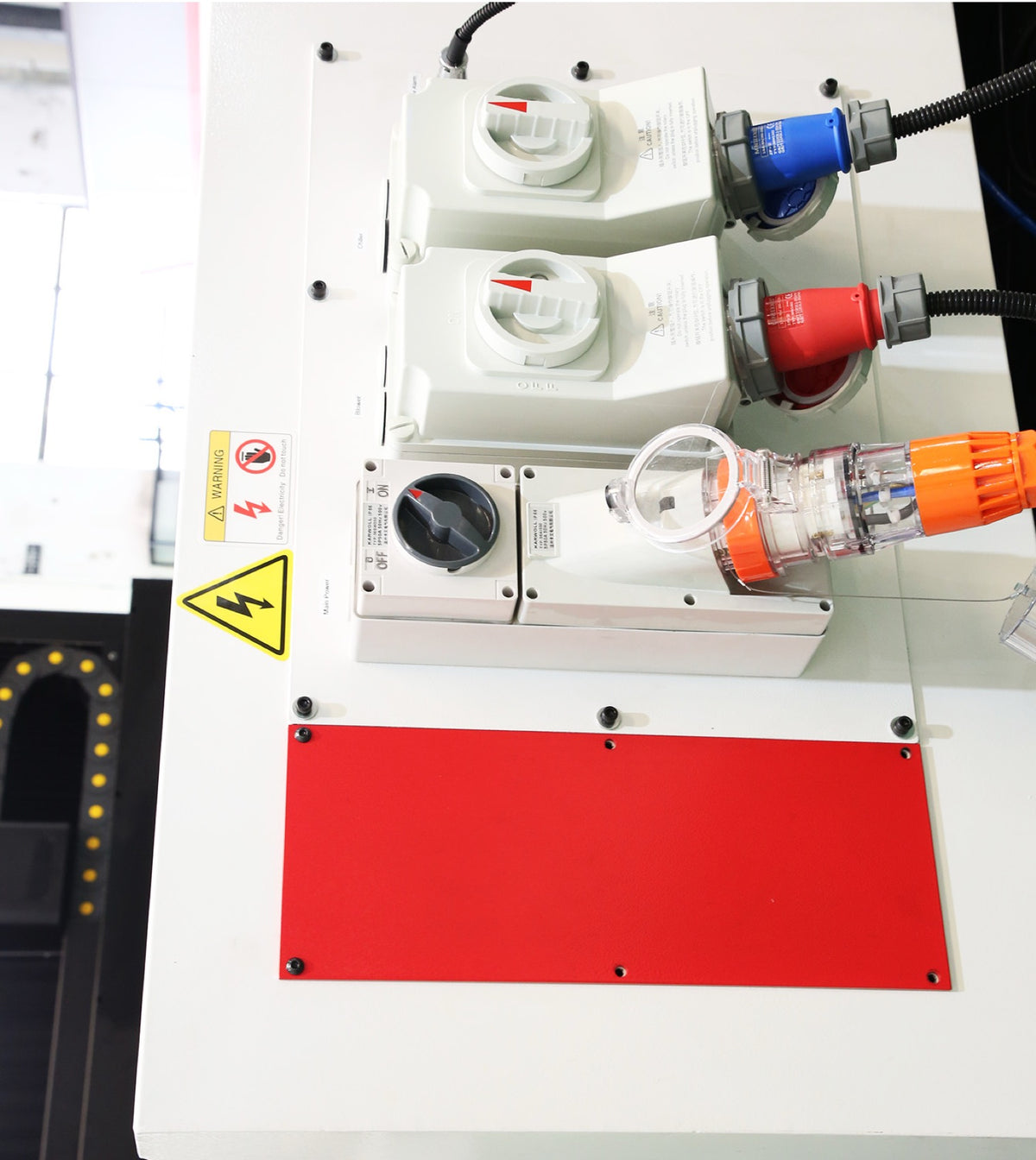

The 3kW and 6kW versions ship with plug-and-play electrics — no on-site wiring. The 6kW needs a 63A 3-phase outlet with neutral within 3m of the machine, or it can be wired to an isolator within 3m. Because the machine is wide, a small amount of on-site assembly is needed after container shipping. Lead time is generally 4 to 8 weeks from order if not in stock.
Prices are for the machine only. Setup, commissioning and operator training on site are available and strongly recommended for first-time laser buyers — ask us to include them in your quote.
Delivery
Free delivery to Sydney, Melbourne, Brisbane and Adelaide metro areas. Delivery elsewhere in Australia is quoted based on location.
Indicative cutting capacity — 6kW (nitrogen or compressed air)
| Mild steel | up to 22mm |
|---|---|
| Stainless steel | up to 14mm |
| Aluminium | up to 12mm |
Indicative maximum thickness for quality cutting; results vary with material grade, gas supply and cut quality requirements. Always confirm with test cuts.
Specifications
| Model | SAN-EG1530 (standard) · SAN-EG2040 (larger bed) |
|---|---|
| Cutting bed | SAN-EG1530: 1550 × 3100 mm · SAN-EG2040: 2050 × 4100 mm |
| Laser source | Maxphotonics G5 (standard); Raycus or IPG optional |
| Cutting head | 3kW: BOCI BLT310 · 6kW: BOCI BLT421S · 12kW: BOCI BLT642H |
| Control system | 3kW and 6kW: FSCUT4000E + CypCut · 12kW: FSCUT8000 + HypCut |
| Cutting gas control | Fenton proportional control; oxygen, nitrogen and compressed air, each with individual lines |
| Drives and servo motors | BOCHU |
| X/Y transmission | Rack and pinion (Taiwan JT rack, Taiwan DTX guide rails) |
| Z-axis transmission | Ball screw |
| Crossbeam | Extruded 6061 aluminium |
| Reducer | TECHMECH (Germany) |
| Water chiller | S&A |
| Electrical components | Schneider (France) |
| Pneumatic components | SMC (Japan) and AIRTAC (Taiwan) |
| Suction | Partitioned (zoned) suction |
| Extraction | Standard: 3kW – 4-cartridge TOPSINN TODC-L dust collector; 6kW and 12kW – 6-cartridge TOPSINN TODC-L dust collector. Optional: suction fan |
| Warranty | General machine 36 months; laser source 24 months (from shipment); cutting head 24 months. Excludes wear items including bearings and bellows. |
Included with every AXIS laser
Local warranty, service and support; online technical support via WhatsApp, WeChat and TeamViewer, with a technician to site if needed; and a consumables starter kit of 100 nozzles, 40 lower protection windows, 2 upper protection windows and 5 ceramic inserts. Equipment finance is available through Finlease.
Specifications may be updated as designs improve or components change; any substitution will be of equal or higher specification and performance.
