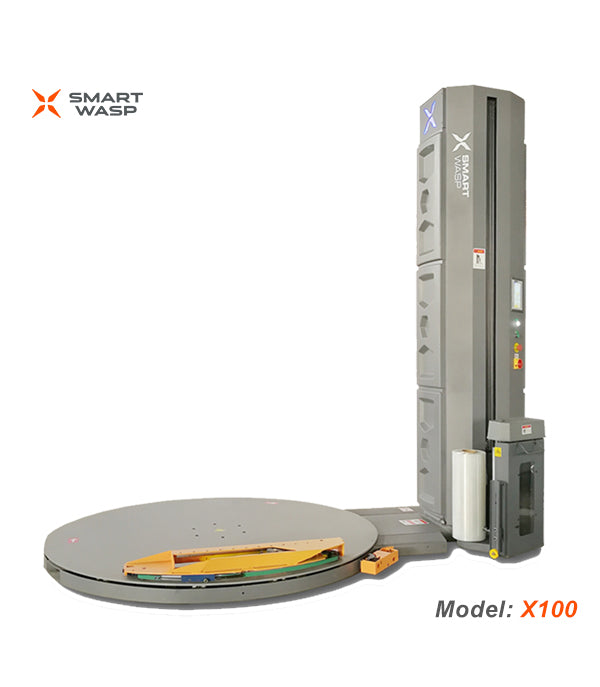

X100 Semi Automatic Pallet Wrapping Machine

Regular price
$12,900.00 AUD
Regular price
Sale price
$12,900.00 AUD

NO NEED FOR THE OPERATOR TO EXIT THE FORKLIFT



Product Application
Semi automatic pallet stretch wrapping machine (also called semi automatic pallet wrapper) uses LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet. Film provides extra support during transportation and storage to protect them from dust, moisture or damage automatically. The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper, pottery, food & beverage, ect

Main Features

✔ 300% Powered Pre-stretch 10m stretches to 30m
✔ 1650mm Turntable to suit 1200mm x 1200mm pallet. (1800mm/2000mm optional)
✔ 2.4m Wrap Height (3.0m optional)
✔ 2000kg Capacity

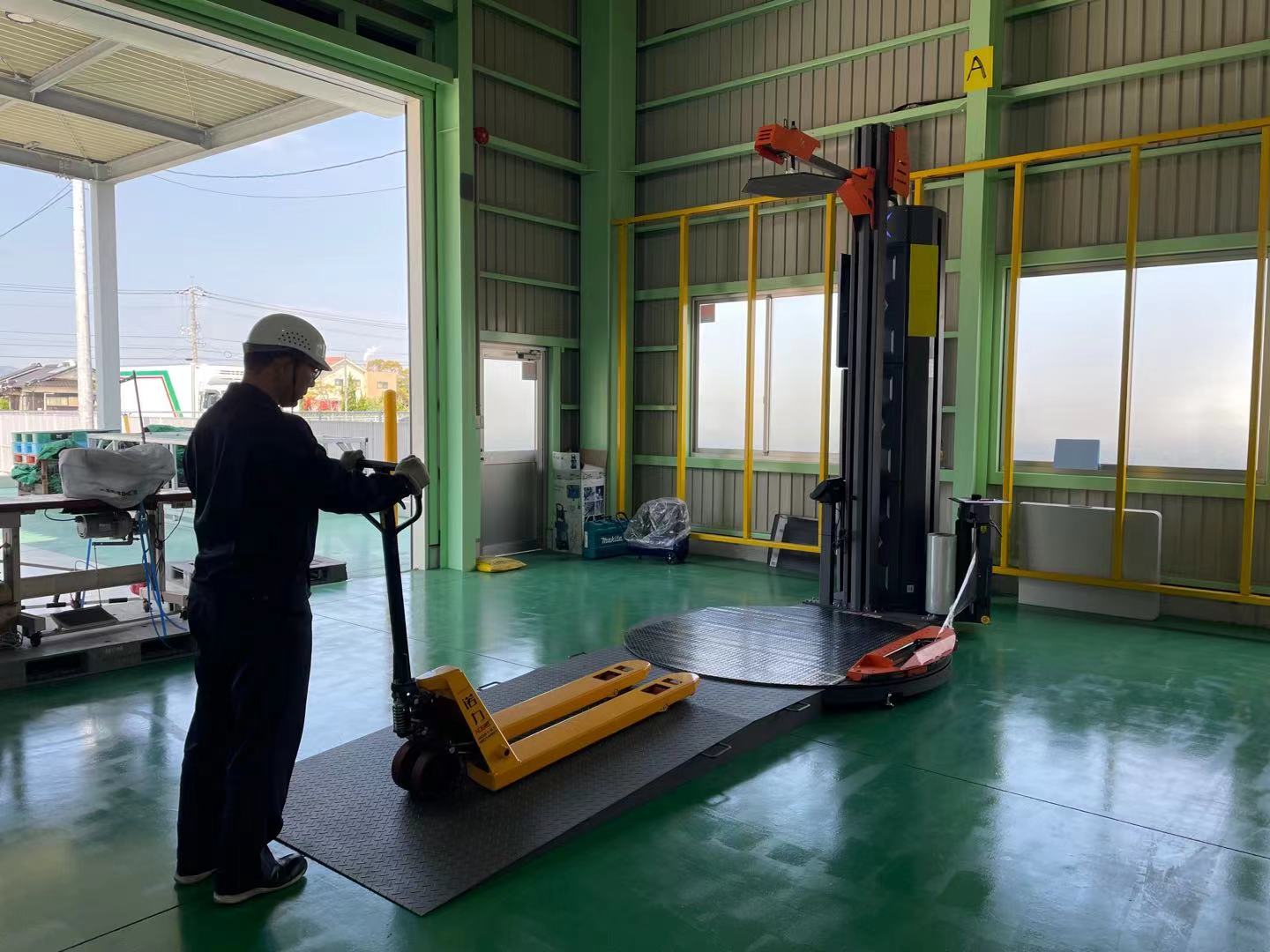

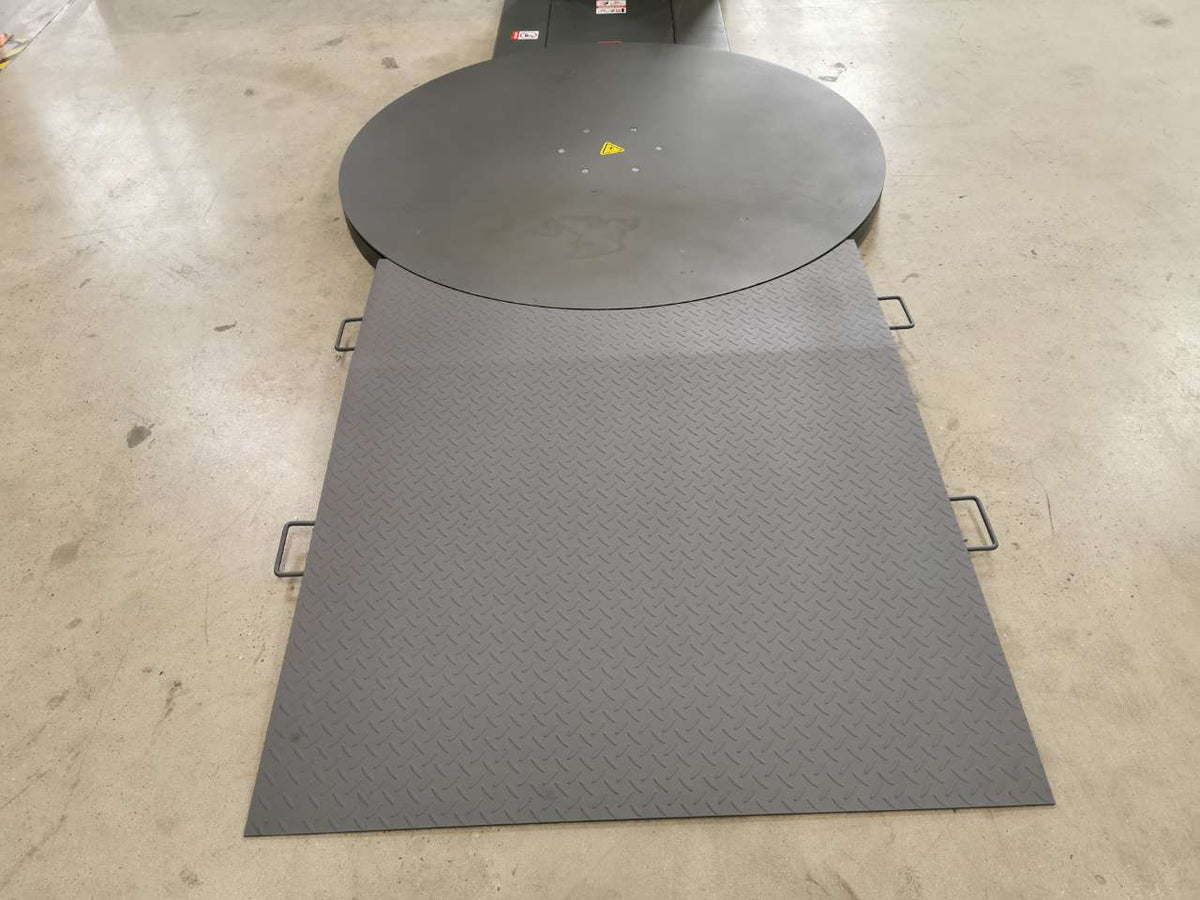

✔ Ramp (optional extra)
✔ Weight Scales (optional extra)
✔ Automatic Cut and Clamp of film
✔ Roping system designed to better secure your load
✔ Automatic Pallet Clamp System
✔ Film Carriage Safety Door with Sensor
✔ Remote Control (No need to get off your forklift)
✔ Touch Screen Operation (can save up to 6 programs for various wrapping needs. The wrapping type and styles can be designed to your’ requirements.)
✔ PLC (SIEMENS)
✔ Inverter (X-LINE)
✔ Intelligent Alarm System with LED Indicator
✔ Forklift pockets for easy moving
✔ High efficiency and low electricity-consumption, convenient in operation.
✔ Photoelectric sensor to detect pallet height (Black wrap sensor optional)
✔ Auto reset of turntable
✔ Pallet stretch wrapping machine soft start and soft stop

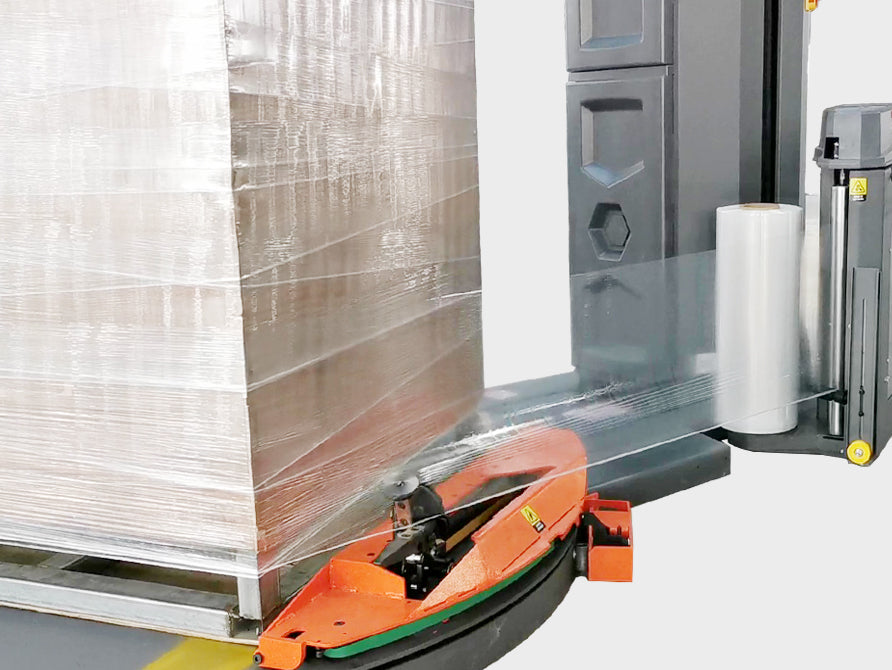

Automatic Cut and Clamp Film
The X100 has an automatic cut and clamp film system, means your operators do not need to hand cut the film or attach the film to the pallet anymore, our cut & clamp film system will do it automatically for you.

Remote control system

The X100 pallet wrap machine comes with a remote control therefore the operator, just needs to put the pallet on the turntable and press remote control start button and the machine will wrap pallet automatically. This means the forklift operator does not need to continually hop on and off the forklift. Which means the operate is at reduced risk of injury as many strains and pains are caused through frequently hopping on and off forklift trucks. Not to mention the operation no longer has a reason to find a way to defeat the seat belt interlock on the forklift to avoid putting it on and off a 100 times a day. Of course, we are certain that never happens in your workplace.

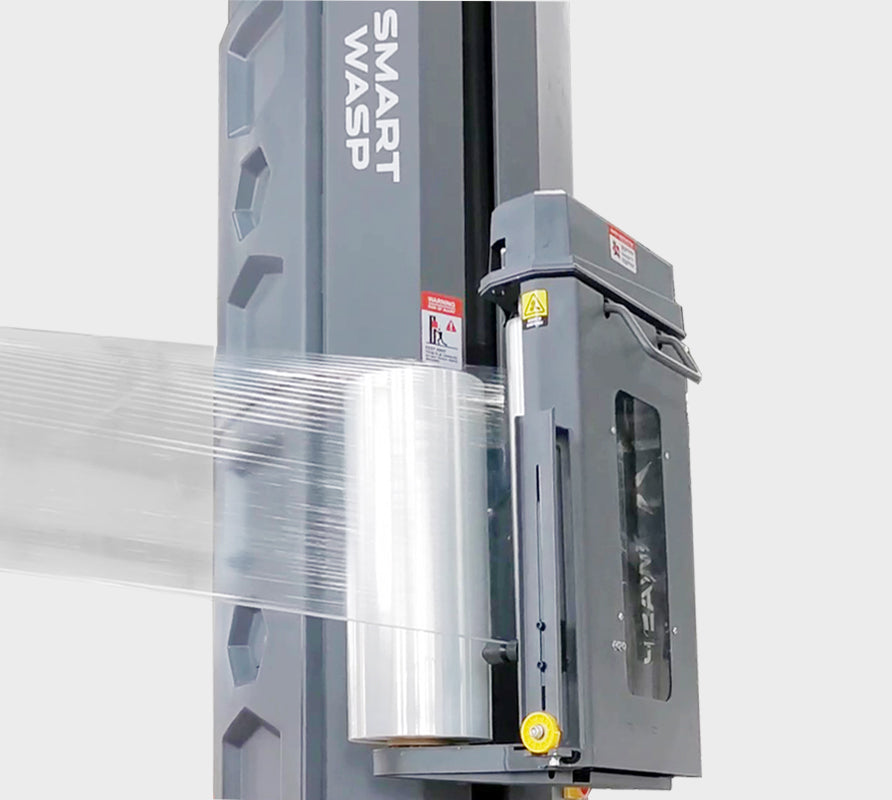

300% Film Stretch Rate
With our standard 300% film stretch rate the standard film can be stretch turning your 10m of film into 30m of film. Of course some claim there machines will stretch greater amounts but don't be fooled. Most stretch films on the market can't handle a greater stretch rate. So the machine may be able to do it but the chances are you film will not. Not only that but there is no one at this price point that can offer a fixed 300% stretch rate. The roping function also allows you to more securely wrap a pallet with less film as does our multi layer wrapping function but there more on these two features below. Of course if your current film cannot handle a 300% wrap rate we can offer a film that can

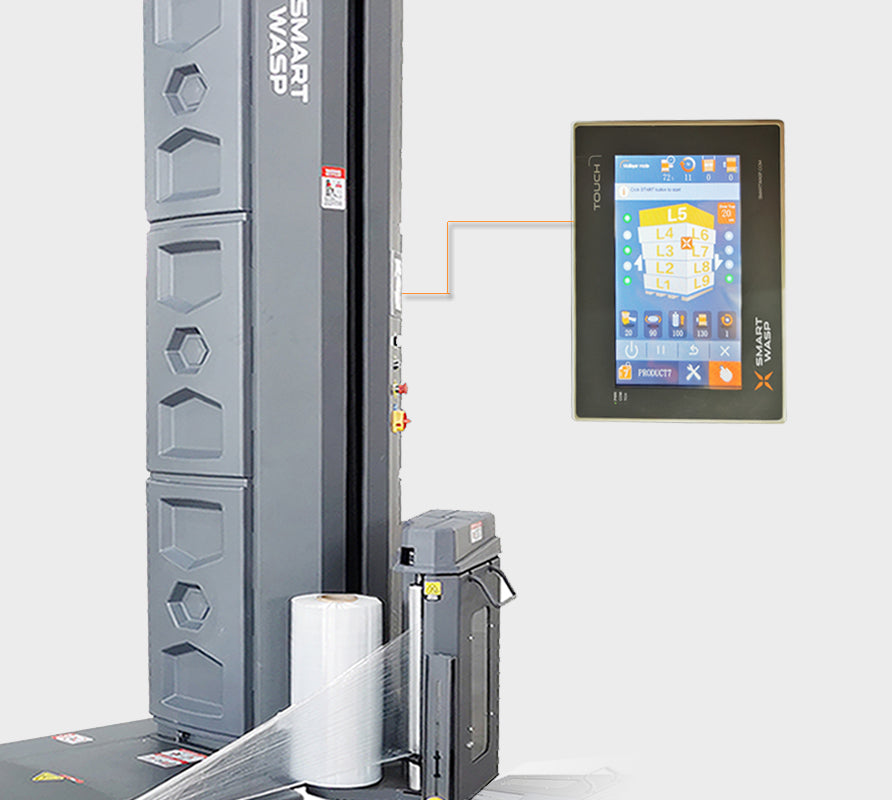

LCD touch operating system
SMART WASP pallet wrapping machine use the best touch screen "SIEMEN", the reaction of the touch screen and functions is perfect. The touch screen can set the "turntable speed up & down speed and film carriage speed directly" and we also prepare for our customer 6 different wrapping programs, of course you can use any one or all of the programs or you can adjust any the parameter in any program and once you have got the programs just how you want them to be, it very easy to choose which program you want to use for each of your products. We are confident you can cover all your wrapping needs using one of the 6 programs.
Screen

Multi-layer Function

With this function you can set different wrapping circles, and different wrapping forces at any height that you want on your pallet. Maximum zones on any one pallet is 9. This is incredible amount of precision wrapping. Normal machines' use a consistent wrapping force and speed from bottom to top and they cannot stop or achieve reinforce wrapping functions during the wrapping cycle. This combined with the ability to rope the wrap is just way beyond what our competitors can offer.



Multi_Function_Screen

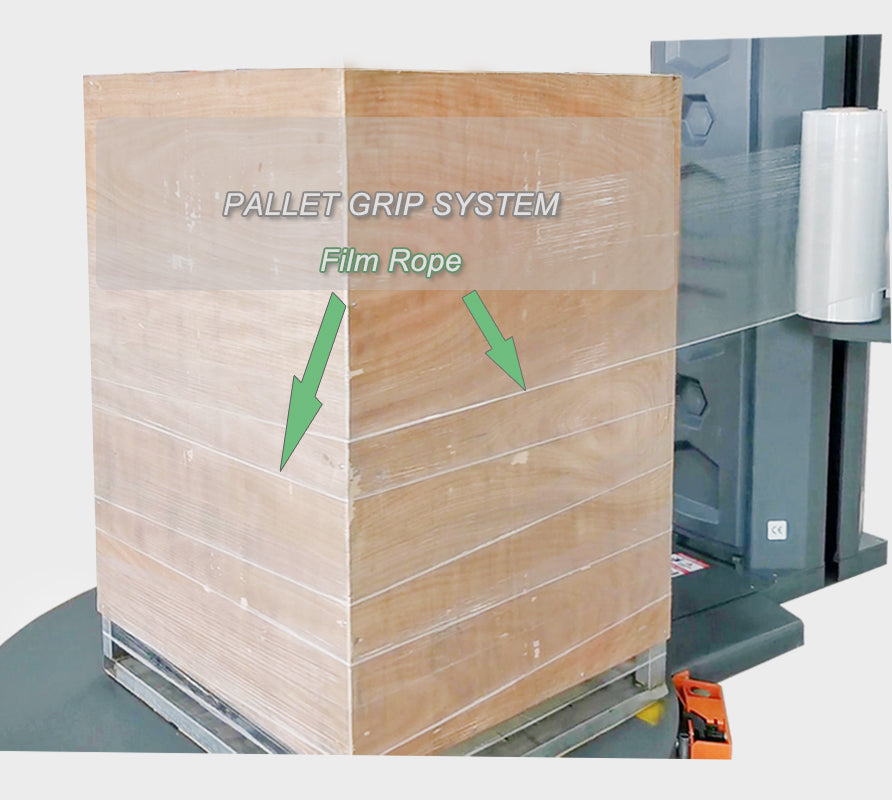

Let's Talk Roping

I hear you ask what is film roping? Well, our power stretch head has a device that can roll/rope the bottom of the film which of course is adjustable. For sake of keeping, it simple, imaging you rolled out some stretch film and then rolled up the bottom 50mm into a 5mm thick rope, now try and break that rope. My guess is you can’t. This is exactly what the roping device does, and this ensures your film is not going to fail and it won’t stretch and fail so for those tricky loads you can secure them like never before. Of course, this is Smart Wasp so you can rope just at the bottom of the pallet or just at the top or anywhere in between or not at all. Simple but effective.

Roping_up_close
See the roping device in action on the S300 Model

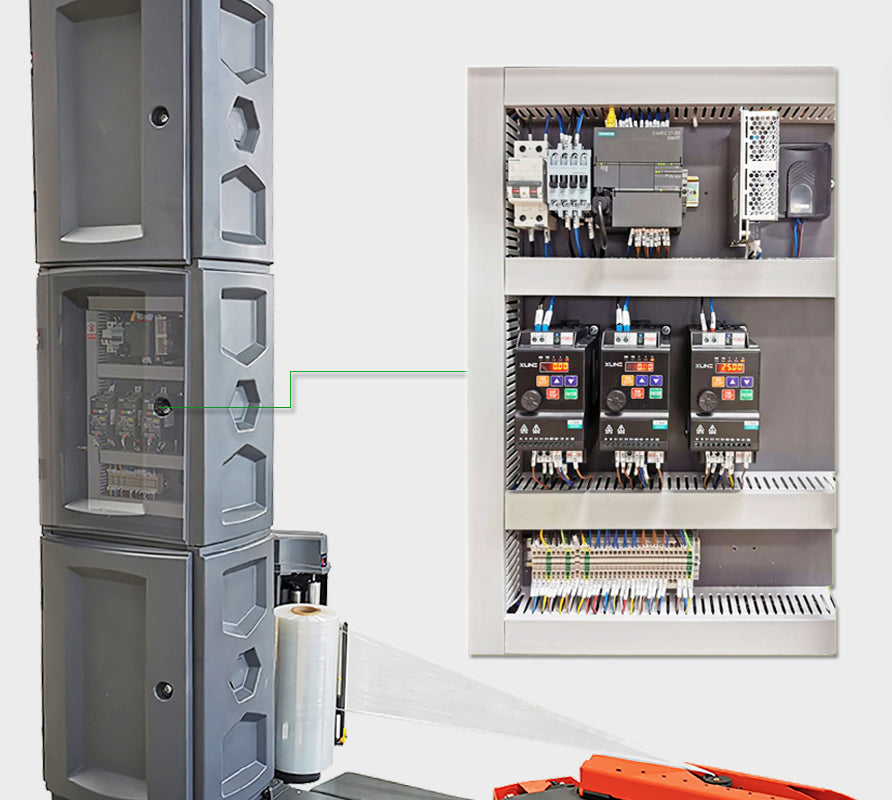

We use only the BEST brand components

If you want to buy a good and durable machine, the electric components are very very important. Let's face facts on any brand of pallet wrapper it is normally the electrics that let you down. No at Smart Wasp we only use the best and popular brands that are easily sourced. Of course, our Plasquip and Smart Wasp keep a great range of spares but very often you will be able to source a spare part from your local electrical wholesaler before Plasquip have time to get it in an airbag for you. Using only the best and popular brands is your insurance that your Smart Wasp machine will run long and hard for years to come.

Our Quality Brands

SIEMENS PLC
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inverter
OMRON 24DC power supply



Advanced Safety Technology

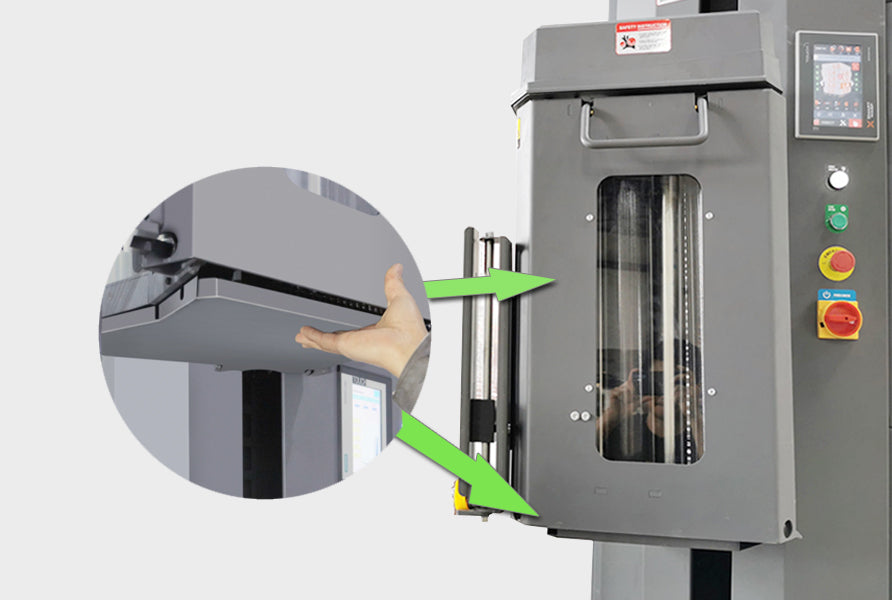

✔ Safety device under film carriage to protect the foot or head of the operator
✔ Transparent board makes it easy to find problem without opening the door
✔ Up and down belt deviation and damaged belt alarm system.

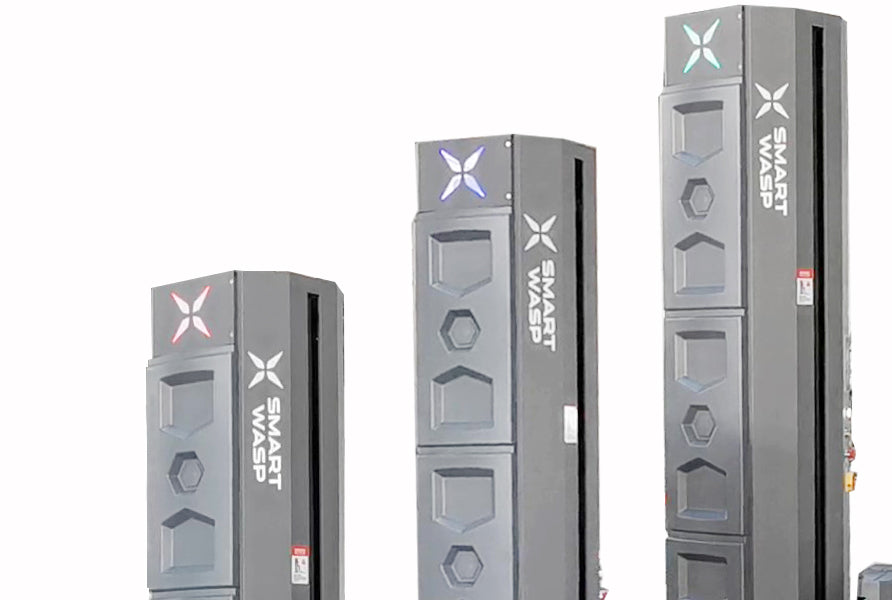

Alarm and Light System

Each machine is fitted with an indicator light on top of the mast.
Blue is machine in standby mode (What are we waiting for)
Green is the machine operational (That what we like to see)
Red is emergency or fault mode, the alarm also sounds when an emergency or fault is detected. "But that's not all" our smart programming means that the machine not only records the fault it displays on screen tips and steps you through how to clear the fault, so that you are back up and running in a snap.
