WELDY WGW 300 Hot Wedge Welder for Geomembranes

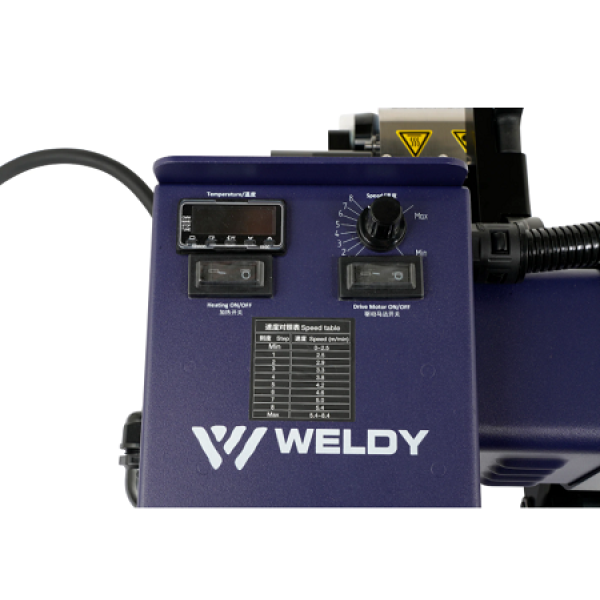

The WGW 300 hot-wedge welding machine from Weldy, a Leister brand, welds thermoplastic geomembranes such as HDPE, LDPE, TPO, FPO and PVC* effortlessly and reliably, forming permanent, rock-solid bonds. These geomembranes are typically used in landfills, mines, aquaculture, fish farms and irrigation systems. The WGW 300 has been deliberately engineered to be simple and robust, with intelligently arranged electrical controls for the heating and drive motor, ensuring fast, safe and intuitive operation. A temperature sensor located within the welding wedge offers precise control during overlap welding.
Equipped with a powerful, durable drive motor, this automatic welder features strong drive rollers that guarantee a secure grip when welding on steep inclines. Thanks to its large rollers, the WGW 300 delivers consistent welds on both even and uneven ground, making it well suited to demanding terrain. At just 15kg, it comes with a storage box for easy transport.

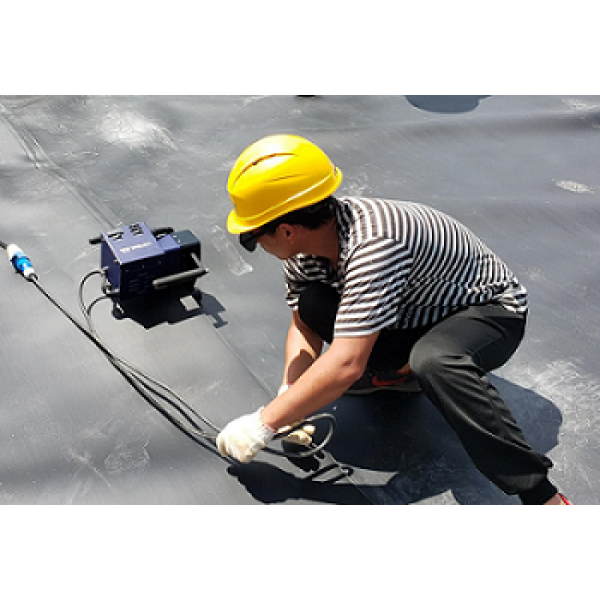

MAIN APPLICATIONS
- Aquaculture construction and repair
- Foundation waterproofing
- Landfill and mining membrane welding
- Pond waterproofing
- Reservoir and canal waterproofing
KEY FEATURES
- Power: 1750W (120V / 230V)
- Max. hot wedge temperature: 450°C
- Welding speed: 0 – 8.5 m/min
- Hot wedge: copper, 80mm x 45mm
- Max. overlap: 150mm
- Max. welding pressure: 1400 N
- Weld seam width: 2 x 12mm
- Weldable materials: HDPE, LDPE, LLDPE, PE, PP, TPO, FPO, CSPE
- Weldable material thickness: 0.8 – 2.5mm (PVC* 0.8 – 3.0mm)
- Stable 3-roller design for uneven ground
- Weight: 15kg

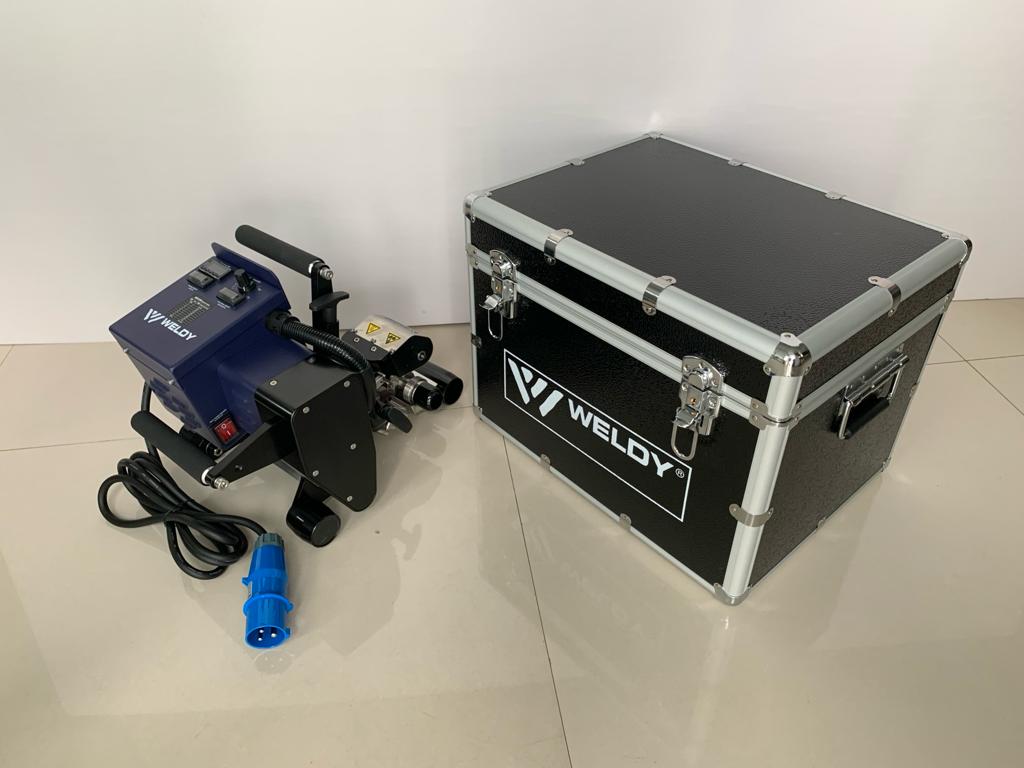

- Supplied with a storage box
"Normally available within 2 to 4 weeks, with the option for urgent airfreight. Contact us now for a speedy shipping quote.
DOWNLOADS:
MACHINE ACCESSORIES
Browse compatible nozzles, welding shoes and consumables for this machine in our Plastic Welding Accessories collection.
GENERAL ACCESSORIES
See spare parts and general workshop consumables in our Plastic Welding Spare Parts collection.
