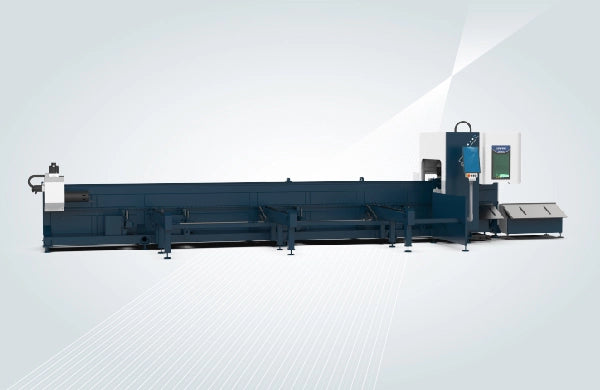

SENFENG G PLUS Series Tube Laser Cutter 6012GPLUS
High-speed bevel cutting for batch processing of small-diameter tube.
Part of SENFENG's G PLUS series — 1.5kW-3kW High-Speed Bevel Tube Laser Cutter — G PLUS Series (Two Chucks), built for Batch processing of small-diameter tube (≤120mm) for automotive, construction, and similar industries.
The 6012GPLUS handles tube size Φ15-120mm / □15*15-120*120mm at 1.5-3kW with 2 chucks.
- Zero-Pendulum bevel head: 50mm nozzle-to-chuck distance, precise ±45° bevel on tube up to Φ180mm
- Intelligent chain-driven loading/unloading with servo-controlled follow-up support
- High-precision two-chuck design purpose-built for bevel cutting
- Zero Tail Material Design and Flycut for high-speed, continuous cutting
- Full process-technology software suite: Nesting, Special Edge-Sharing, Fast Import, Automatic Sorting, Profiles Processing
- Widely used in fitness equipment, hardware & sanitary products, and escalator railings
| Laser Power | 1.5-3 kW |
| Max. Length of Tube | 1000-6500 mm |
| Tube Size | Φ15-120mm / □15*15-120*120mm |
| Max. Weight of Tube | 120 kg |
| X/Y-axis Positioning Accuracy | ±0.05 mm |
| X/Y-axis Repositioning Accuracy | ±0.03 mm |
| Max. No-load Speed | 150 m/min |
| Max. Chuck Rotating Speed | 240 r/min |
| Overall Dimensions (L*W*H) | 9100*2230*2300 mm |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
| Chucks | 2 |
Frequently Asked Questions
What can the G PLUS Series 6012GPLUS cut?
The 6012GPLUS handles tube sizes Φ15-120mm / □15*15-120*120mm at 1.5-3kW, up to 1000-6500mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.
