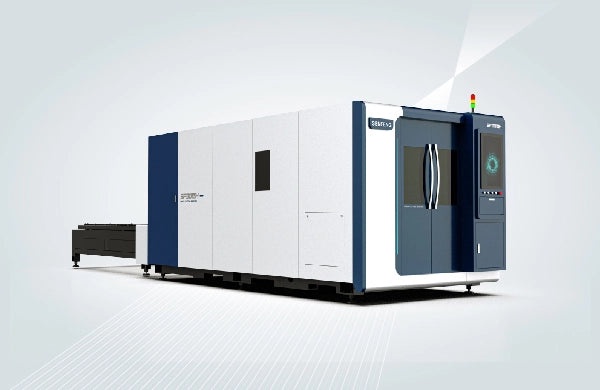

SENFENG HC Series Fiber Laser Cutter 6020H — 1.5-12kW

SKU: SENFENG-HC-6020H
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD

SENFENG's classic, cost-effective fully-enclosed cutter with double exchange platforms.

Part of SENFENG's HC series — 1.5kW-12kW Metal Sheet Fiber Laser Cutter — HC Series, built for High-power cutting in a compact footprint — for shops that want more power without more floor space.

The 6020H has a 6050*2030mm working area at 1.5-12kW.

  • Fully-enclosed structure (4-side panels, top cover, sealed lifting door) for a controlled, safe workspace
  • Intelligent smoke-free dust extraction — dual-channel, zoned airflow activated by cutting position
  • Panoramic HD visual monitoring minimizes blind spots
  • Double exchange platforms in a compact footprint for high power without a large factory floor
  • Jump Function cuts idle travel by 70%+, plus Flash/Smooth/Progressive/Deslag Piercing and Auto Edge Detection
  • Flexible 20GP/40HQ container combinations for freight savings
Laser Power 1.5-12 kW
Working Area (L*W) 6050*2030 mm
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.02 mm
Max. No-load Speed 130 m/min
Max. Load of Platform 2900 kg
Overall Dimensions (L*W*H) 14900*3243*2260 mm
Power Supply Three-phase 380V, 50/60Hz

Frequently Asked Questions

What can the HC Series 6020H cut?
The 6020H has a 6050*2030mm working area and runs at 1.5-12kW. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.

Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.

SENFENG's classic, cost-effective fully-enclosed cutter with double exchange platforms.

Part of SENFENG's HC series — 1.5kW-12kW Metal Sheet Fiber Laser Cutter — HC Series, built for High-power cutting in a compact footprint — for shops that want more power without more floor space.

The 6020H has a 6050*2030mm working area at 1.5-12kW.

  • Fully-enclosed structure (4-side panels, top cover, sealed lifting door) for a controlled, safe workspace
  • Intelligent smoke-free dust extraction — dual-channel, zoned airflow activated by cutting position
  • Panoramic HD visual monitoring minimizes blind spots
  • Double exchange platforms in a compact footprint for high power without a large factory floor
  • Jump Function cuts idle travel by 70%+, plus Flash/Smooth/Progressive/Deslag Piercing and Auto Edge Detection
  • Flexible 20GP/40HQ container combinations for freight savings
Laser Power 1.5-12 kW
Working Area (L*W) 6050*2030 mm
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.02 mm
Max. No-load Speed 130 m/min
Max. Load of Platform 2900 kg
Overall Dimensions (L*W*H) 14900*3243*2260 mm
Power Supply Three-phase 380V, 50/60Hz

Frequently Asked Questions

What can the HC Series 6020H cut?
The 6020H has a 6050*2030mm working area and runs at 1.5-12kW. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.

Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.
