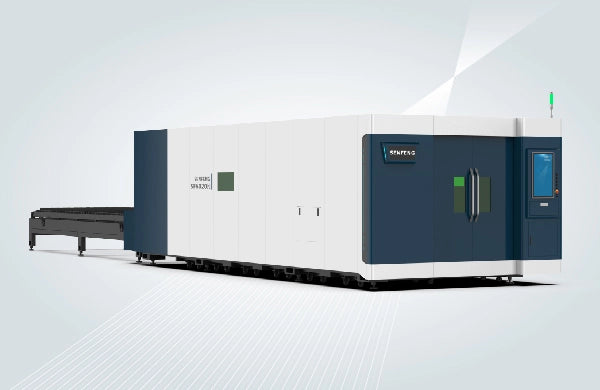

SENFENG H4 Ultra Series Fiber Laser Cutter 12025H4 — 30-80kW

SKU: SENFENG-H4ULTRA-12025H4
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD

Ultra-high power for ultra-thick metal plate cutting.

Part of SENFENG's H4 Ultra series — 30kW-80kW Ultra-high Power Plate Laser Cutter — H4 Series (Gen 4), built for Super-thick, extra-heavy plate cutting at shipyard/heavy-steelwork scale.

The 12025H4 has a 12050*2530mm working area at 30-80kW.

  • Thermally isolated heavy-duty dual-bed system blocks heat transfer to avoid bed deformation and extend service life
  • Anti-burning graphite plates and firebrick trolley for durability under ultra-high-power cutting
  • Intelligent smoke-free dust extraction, zoned and dual-channel
  • Reinforced rack-and-pinion Z-axis for stable motion at scale
  • Full process-technology suite: Vision-based Nesting, Automatic Nozzle Changing, Perfect Finish Cut, Flash/Smooth/Progressive/Deslag Piercing, Smooth MicroJoint, Jump Function, Auto Edge Detection, Countersink Cutting
  • Optional dual gantry loading/unloading (up to 85% efficiency gain on 0.8-14mm steel plate)
Laser Power 30-80 kW
Working Area (L*W) 12050*2530 mm
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.02 mm
Max. No-load Speed 200 m/min
Max. Acceleration 2 G
Max. Load of Platform 18860 kg
Overall Dimensions (L*W*H) 27770*3781*2410 mm
Power Supply Three-phase 380V, 50/60Hz (custom-made)

Frequently Asked Questions

What can the H4 Ultra Series 12025H4 cut?
The 12025H4 has a 12050*2530mm working area and runs at 30-80kW. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.

Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.

Ultra-high power for ultra-thick metal plate cutting.

Part of SENFENG's H4 Ultra series — 30kW-80kW Ultra-high Power Plate Laser Cutter — H4 Series (Gen 4), built for Super-thick, extra-heavy plate cutting at shipyard/heavy-steelwork scale.

The 12025H4 has a 12050*2530mm working area at 30-80kW.

  • Thermally isolated heavy-duty dual-bed system blocks heat transfer to avoid bed deformation and extend service life
  • Anti-burning graphite plates and firebrick trolley for durability under ultra-high-power cutting
  • Intelligent smoke-free dust extraction, zoned and dual-channel
  • Reinforced rack-and-pinion Z-axis for stable motion at scale
  • Full process-technology suite: Vision-based Nesting, Automatic Nozzle Changing, Perfect Finish Cut, Flash/Smooth/Progressive/Deslag Piercing, Smooth MicroJoint, Jump Function, Auto Edge Detection, Countersink Cutting
  • Optional dual gantry loading/unloading (up to 85% efficiency gain on 0.8-14mm steel plate)
Laser Power 30-80 kW
Working Area (L*W) 12050*2530 mm
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.02 mm
Max. No-load Speed 200 m/min
Max. Acceleration 2 G
Max. Load of Platform 18860 kg
Overall Dimensions (L*W*H) 27770*3781*2410 mm
Power Supply Three-phase 380V, 50/60Hz (custom-made)

Frequently Asked Questions

What can the H4 Ultra Series 12025H4 cut?
The 12025H4 has a 12050*2530mm working area and runs at 30-80kW. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.

Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.
