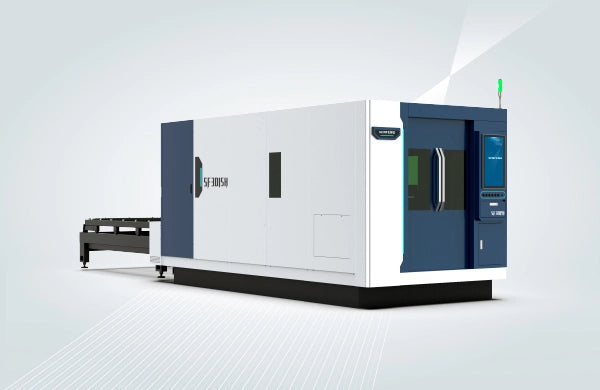

SENFENG H4 Series Fiber Laser Cutter 6025H4 — 6-30kW

SKU: SENFENG-H4-6025H4
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD

SENFENG's flagship, global sales champion for medium-to-thick plate cutting.

Part of SENFENG's H4 series — 6kW-30kW High Power Plate Laser Cutter — H4 Series, built for Medium-to-thick carbon steel, stainless steel, aluminium alloy, and brass plate (≥20mm) demanding high cutting efficiency.

The 6025H4 has a 6100*2530mm working area at 6-30kW.

  • Special heavy-duty thermally isolated hollow bed handles loads up to 18,860kg while resisting deformation
  • Anti-burning graphite plates and a firebrick trolley extend durability under high-power cutting
  • Intelligent smoke-free dust extraction with dual-channel, zoned exhaust
  • Reinforced rack-and-pinion Z-axis for stable high-speed motion
  • Vision-based nesting, automatic nozzle changing, and a full process-technology suite (Perfect Finish Cut, Flash/Smooth/Progressive/Deslag Piercing, Smooth MicroJoint, Jump Function, Auto Edge Detection, Countersink Cutting)
  • Optional Intelligent Air Cutting configuration and optional dual gantry loading/unloading (up to 85% efficiency gain on 0.8-14mm steel plate)
Laser Power 6-30 kW
Working Area (L*W) 6100*2530 mm
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.02 mm
Max. No-load Speed 200 m/min
Max. Acceleration 2 G
Max. Load of Platform 9000 kg
Overall Dimensions (L*W*H) 14734*3781*2410 mm
Power Supply Three-phase 380V, 50/60Hz (custom-made)

Frequently Asked Questions

What can the H4 Series 6025H4 cut?
The 6025H4 has a 6100*2530mm working area and runs at 6-30kW. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.

Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.

SENFENG's flagship, global sales champion for medium-to-thick plate cutting.

Part of SENFENG's H4 series — 6kW-30kW High Power Plate Laser Cutter — H4 Series, built for Medium-to-thick carbon steel, stainless steel, aluminium alloy, and brass plate (≥20mm) demanding high cutting efficiency.

The 6025H4 has a 6100*2530mm working area at 6-30kW.

  • Special heavy-duty thermally isolated hollow bed handles loads up to 18,860kg while resisting deformation
  • Anti-burning graphite plates and a firebrick trolley extend durability under high-power cutting
  • Intelligent smoke-free dust extraction with dual-channel, zoned exhaust
  • Reinforced rack-and-pinion Z-axis for stable high-speed motion
  • Vision-based nesting, automatic nozzle changing, and a full process-technology suite (Perfect Finish Cut, Flash/Smooth/Progressive/Deslag Piercing, Smooth MicroJoint, Jump Function, Auto Edge Detection, Countersink Cutting)
  • Optional Intelligent Air Cutting configuration and optional dual gantry loading/unloading (up to 85% efficiency gain on 0.8-14mm steel plate)
Laser Power 6-30 kW
Working Area (L*W) 6100*2530 mm
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.02 mm
Max. No-load Speed 200 m/min
Max. Acceleration 2 G
Max. Load of Platform 9000 kg
Overall Dimensions (L*W*H) 14734*3781*2410 mm
Power Supply Three-phase 380V, 50/60Hz (custom-made)

Frequently Asked Questions

What can the H4 Series 6025H4 cut?
The 6025H4 has a 6100*2530mm working area and runs at 6-30kW. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.

Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.
