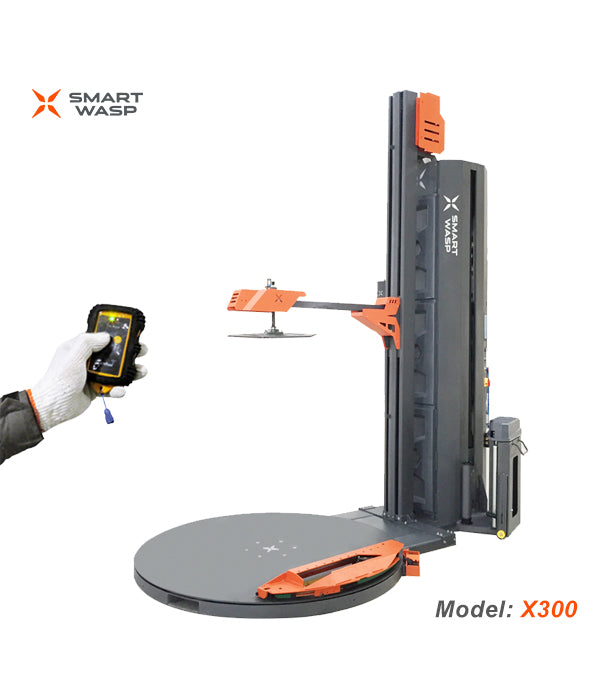

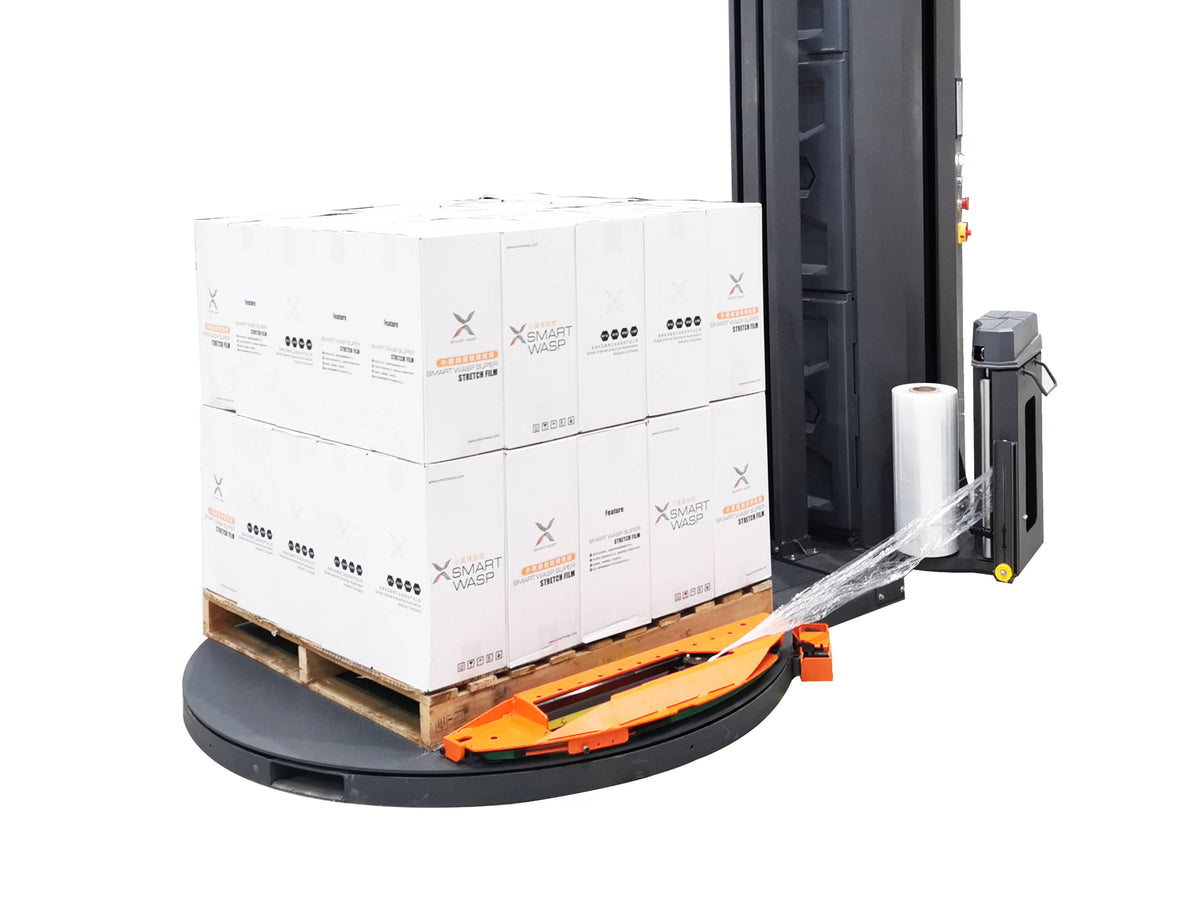

X300 Top Pressure Fully Automatic Pallet Wrapping Machine

SKU: X300
or Call Us Now: 1300 722 868

PERFECT SOLUTION WHEN YOU HAVE VERY LIGHT OR UNSTABLE LOADS



Product Application
Our semi-automatic pallet stretch wrapping machine (also called semi-automatic pallet wrapper) use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet. The film provides extra support during transportation and storage to protect them from dust, moisture, or damage automatically. Our pallet wrapping machine are widely used in industries such as food & beverage, manufacturing, glassware, tools, electric & electronic, paper, pottery, etc



Main Features
✔ 300% Powered Pre-stretch 10m stretches to 30m
✔ 1650mm Turntable to suit 1200mm x 1200mm pallet. (1800mm/2000mm optional)
✔ 2.0m Wrap Height (2.6m optional)
✔ 2000kg Capacity
✔ Electric pressurised clamping to support your load
✔ Ramp (optional extra)
✔ Weight Scales (optional extra)
✔ Automatic Cut and Clamp of film
✔ Roping system designed to better secure your load
✔ Automatic Pallet Clamp System
✔ Film Carriage Safety Door with Sensor
✔ Remote Control (No need to get off your forklift)
✔ Touch Screen Operation (can save up to 6 programs for various wrapping needs. The wrapping type and styles can be designed to your’ requirements.)
✔ PLC (SIEMENS)
✔ Inverter (X-LINE)
✔ Intelligent Alarm System with LED Indicator
✔ Forklift pockets for easy moving
✔ High efficiency and low electricity-consumption, convenient in operation.
✔ Photoelectric sensor to detect pallet height (Black wrap sensor optional)
✔ Auto reset of turntable
✔ Pallet stretch wrapping machine soft start and soft stop.

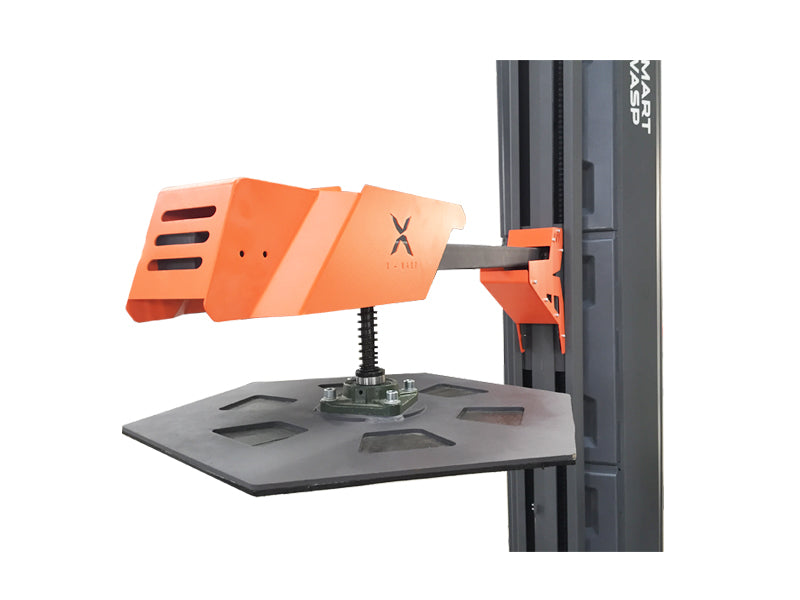

Top Pressure Device
Electric pressurising clamping system is used to support the load and prevent the movement and displacement of the load during the wrapping process, and the pressurising stroke with the equivalent of 35kg of load can go as low as 600mm therefore it can reach even the smallest loads and of course the top range is 2,000mm. This compares favourably with the traditional pneumatic pressure, with far greater range in most cases more than doubled.



Automatic Cut and Clamp Film

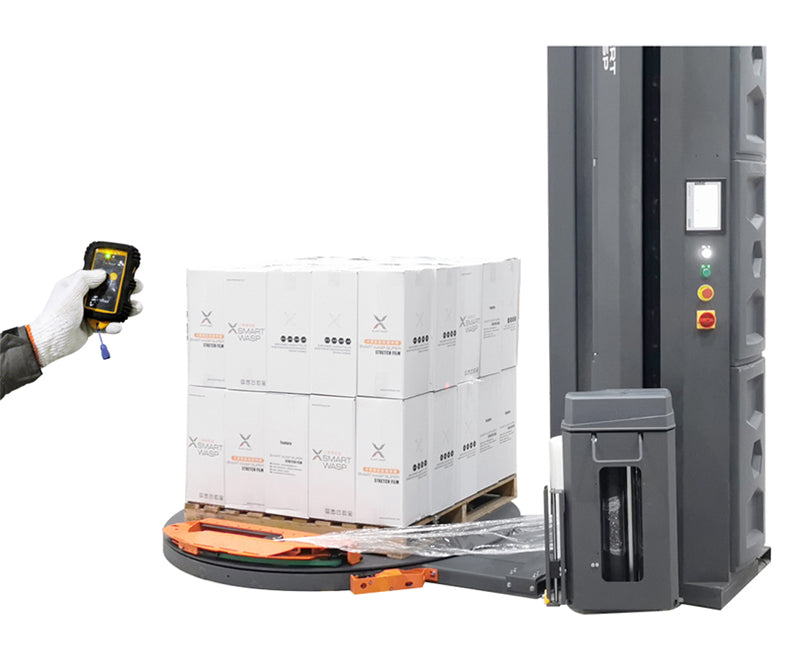

The X300 has an automatic cut and clamp film system, means your operators do not need to hand cut the film or attach the film to the pallet anymore, our cut & clamp film system will do it automatically. Remote control system The X300 pallet wrap machine comes with a remote control therefore the operator, just needs to put the pallet on the turntable and press remote control start button and the machine will wrap pallet automatically. This means the forklift operator does not need to continually hop on and off the forklift. Which means the operate is at reduced risk of injury as many strains and pains are caused through frequently hopping on and off forklift trucks. Not to mention the operation no longer has a reason to find a way to defeat the seat belt latch on the forklift to avoid putting it on and off 100 times a day. Of course, we are certain that never happens in your workplace.



300% Film Stretch Rate
With our standard 300% film stretch rate the standard film can be stretch turning your 10m of film into 30m of film. Of course, some claim their machines will stretch greater amounts but don't be fooled. Most stretch films on the market can't handle a greater stretch rate. The machine may be able to do it, but the chances are you film will not. Not only that but there is no one at this price point that can offer a fixed 300% stretch rate. Our multi-layer wrapping function helps to secure the load better with less film usage but there more on this feature below. Of course, if your current film cannot handle a 300% wrap rate, we can offer a film that can.

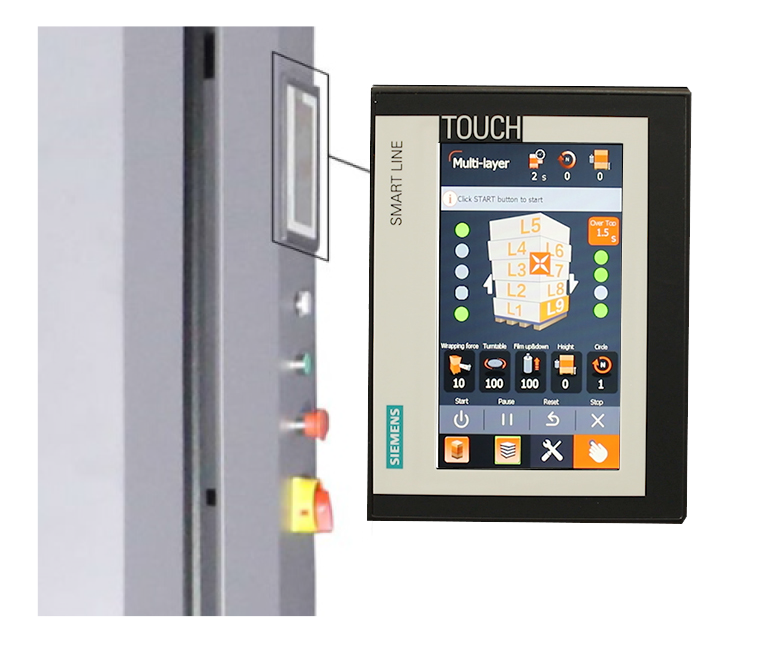

LCD touch operating system
SMART WASP pallet wrapping machine use the best touch screen "SIEMEN", the reaction of the touch screen and functions is perfect. The touch screen can set the "turntable speed up & down speed and film carriage speed directly" and we also prepare for our customer 6 different wrapping programs, of course you can use any one or all of the programs or you can adjust any the parameter in any program and once you have got the programs just how you want them to be, it very easy to choose which program you want to use for each of your products. We are confident you can cover all your wrapping needs using one of the 6 programs.



Multi-layer Function
With this function you can set different wrapping circles, and different wrapping forces at any height that you want on your pallet. Maximum zones on any one pallet is 9. This is incredible amount of precision wrapping. Normal machines' use a consistent wrapping force and speed from bottom to top and they cannot stop or achieve reinforce wrapping functions during the wrapping cycle. This combined with the ability to rope the wrap is just way beyond what our competitors can offer.



Let's Talk Roping
I hear you ask what is film roping? Well, our power stretch head has a device that can roll/rope the bottom of the film which of course is adjustable. For sake of keeping, it simple, imaging you rolled out some stretch film and then rolled up the bottom 50mm into a 5mm thick rope, now try and break that rope. My guess is you can’t. This is exactly what the roping device does, and this ensures your film is not going to fail and it won’t stretch and fail so for those tricky loads you can secure them like never before. Of course, this is Smart Wasp so you can rope just at the bottom of the pallet or just at the top or anywhere in between or not at all. Simple but effective.

See Roping in action on the S300 machine.

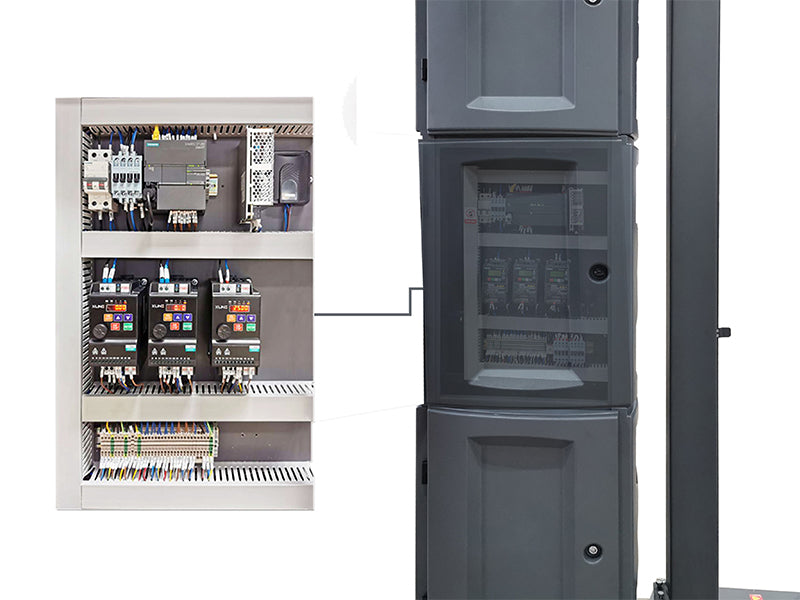

We use only the BEST brand components
If you want to buy a good and durable machine, the electric components are very very important. Let's face facts on any brand of pallet wrapper it is normally the electrics that let you down. No at Smart Wasp we only use the best and popular brands that are easily sourced. Of course, our Plasquip and Smart Wasp keep a great range of spares but very often you will be able to source a spare part from your local electrical wholesaler before Plasquip have time to get it in an airbag for you. Using only the best and popular brands is your insurance that your Smart Wasp machine will run long and hard for years to come.
OUR QUALITY BRANDS
SIEMENS PLC
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inverter
OMRON 24DC power supply



Advanced Safety Technology
✔ Safety device under film carriage to protect the foot or head of the operator
✔ Transparent board makes it easy to find problem without opening the door
✔ Up and down belt deviation and damaged belt alarm system.



Alarm and Light System
Each machine is fitted with an indicator light on top of the mast.

Blue is machine in standby mode (What are we waiting for)
Green is the machine operational (That what we like to see)
Red is emergency or fault mode, the alarm also sounds when an emergency or fault is detected. "But that’s not all" our smart programming means that the machine not only records the fault it displays on screen tips and steps you through how to clear the fault, so that you are back up and running in a snap.

PERFECT SOLUTION WHEN YOU HAVE VERY LIGHT OR UNSTABLE LOADS



Product Application
Our semi-automatic pallet stretch wrapping machine (also called semi-automatic pallet wrapper) use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet. The film provides extra support during transportation and storage to protect them from dust, moisture, or damage automatically. Our pallet wrapping machine are widely used in industries such as food & beverage, manufacturing, glassware, tools, electric & electronic, paper, pottery, etc



Main Features
✔ 300% Powered Pre-stretch 10m stretches to 30m
✔ 1650mm Turntable to suit 1200mm x 1200mm pallet. (1800mm/2000mm optional)
✔ 2.0m Wrap Height (2.6m optional)
✔ 2000kg Capacity
✔ Electric pressurised clamping to support your load
✔ Ramp (optional extra)
✔ Weight Scales (optional extra)
✔ Automatic Cut and Clamp of film
✔ Roping system designed to better secure your load
✔ Automatic Pallet Clamp System
✔ Film Carriage Safety Door with Sensor
✔ Remote Control (No need to get off your forklift)
✔ Touch Screen Operation (can save up to 6 programs for various wrapping needs. The wrapping type and styles can be designed to your’ requirements.)
✔ PLC (SIEMENS)
✔ Inverter (X-LINE)
✔ Intelligent Alarm System with LED Indicator
✔ Forklift pockets for easy moving
✔ High efficiency and low electricity-consumption, convenient in operation.
✔ Photoelectric sensor to detect pallet height (Black wrap sensor optional)
✔ Auto reset of turntable
✔ Pallet stretch wrapping machine soft start and soft stop.



Top Pressure Device
Electric pressurising clamping system is used to support the load and prevent the movement and displacement of the load during the wrapping process, and the pressurising stroke with the equivalent of 35kg of load can go as low as 600mm therefore it can reach even the smallest loads and of course the top range is 2,000mm. This compares favourably with the traditional pneumatic pressure, with far greater range in most cases more than doubled.



Automatic Cut and Clamp Film
The X300 has an automatic cut and clamp film system, means your operators do not need to hand cut the film or attach the film to the pallet anymore, our cut & clamp film system will do it automatically. Remote control system The X300 pallet wrap machine comes with a remote control therefore the operator, just needs to put the pallet on the turntable and press remote control start button and the machine will wrap pallet automatically. This means the forklift operator does not need to continually hop on and off the forklift. Which means the operate is at reduced risk of injury as many strains and pains are caused through frequently hopping on and off forklift trucks. Not to mention the operation no longer has a reason to find a way to defeat the seat belt latch on the forklift to avoid putting it on and off 100 times a day. Of course, we are certain that never happens in your workplace.



300% Film Stretch Rate
With our standard 300% film stretch rate the standard film can be stretch turning your 10m of film into 30m of film. Of course, some claim their machines will stretch greater amounts but don't be fooled. Most stretch films on the market can't handle a greater stretch rate. The machine may be able to do it, but the chances are you film will not. Not only that but there is no one at this price point that can offer a fixed 300% stretch rate. Our multi-layer wrapping function helps to secure the load better with less film usage but there more on this feature below. Of course, if your current film cannot handle a 300% wrap rate, we can offer a film that can.



LCD touch operating system
SMART WASP pallet wrapping machine use the best touch screen "SIEMEN", the reaction of the touch screen and functions is perfect. The touch screen can set the "turntable speed up & down speed and film carriage speed directly" and we also prepare for our customer 6 different wrapping programs, of course you can use any one or all of the programs or you can adjust any the parameter in any program and once you have got the programs just how you want them to be, it very easy to choose which program you want to use for each of your products. We are confident you can cover all your wrapping needs using one of the 6 programs.



Multi-layer Function
With this function you can set different wrapping circles, and different wrapping forces at any height that you want on your pallet. Maximum zones on any one pallet is 9. This is incredible amount of precision wrapping. Normal machines' use a consistent wrapping force and speed from bottom to top and they cannot stop or achieve reinforce wrapping functions during the wrapping cycle. This combined with the ability to rope the wrap is just way beyond what our competitors can offer.



Let's Talk Roping
I hear you ask what is film roping? Well, our power stretch head has a device that can roll/rope the bottom of the film which of course is adjustable. For sake of keeping, it simple, imaging you rolled out some stretch film and then rolled up the bottom 50mm into a 5mm thick rope, now try and break that rope. My guess is you can’t. This is exactly what the roping device does, and this ensures your film is not going to fail and it won’t stretch and fail so for those tricky loads you can secure them like never before. Of course, this is Smart Wasp so you can rope just at the bottom of the pallet or just at the top or anywhere in between or not at all. Simple but effective.

See Roping in action on the S300 machine.


We use only the BEST brand components
If you want to buy a good and durable machine, the electric components are very very important. Let's face facts on any brand of pallet wrapper it is normally the electrics that let you down. No at Smart Wasp we only use the best and popular brands that are easily sourced. Of course, our Plasquip and Smart Wasp keep a great range of spares but very often you will be able to source a spare part from your local electrical wholesaler before Plasquip have time to get it in an airbag for you. Using only the best and popular brands is your insurance that your Smart Wasp machine will run long and hard for years to come.
OUR QUALITY BRANDS
SIEMENS PLC
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inverter
OMRON 24DC power supply



Advanced Safety Technology
✔ Safety device under film carriage to protect the foot or head of the operator
✔ Transparent board makes it easy to find problem without opening the door
✔ Up and down belt deviation and damaged belt alarm system.



Alarm and Light System
Each machine is fitted with an indicator light on top of the mast.

Blue is machine in standby mode (What are we waiting for)
Green is the machine operational (That what we like to see)
Red is emergency or fault mode, the alarm also sounds when an emergency or fault is detected. "But that’s not all" our smart programming means that the machine not only records the fault it displays on screen tips and steps you through how to clear the fault, so that you are back up and running in a snap.
