SINUMERIK ONE "NEW"!

Product information

Alongside the Thermoforming Machines Type T10 and Ts1, GEISS AG also offer CNC Post Processing Centres. These can be further equipped with additional options to suit the requirements of your products, if required.
Using the parametric design, a machine of almost any size can be supplied.

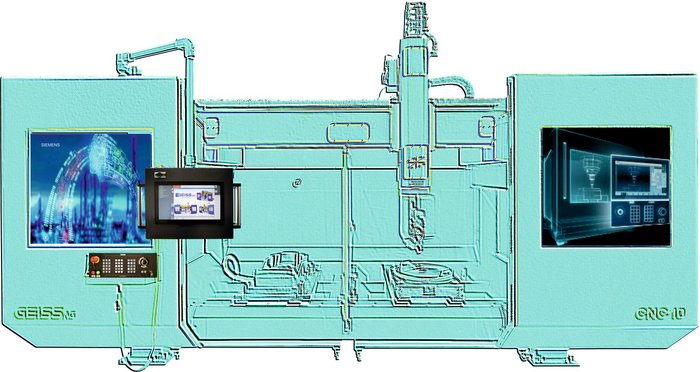

The machines essentially consist of rigid, welded machine frame with a fixed table. The three main axes named as X, Y and Z relate to the perpendicular axes of a cartesian coordinate system.
The trimming spindle is held in an orthogonal or gimble head and is fitted to the machine rotationally on the vertical z axis. The pivoting b axis, the rotating c axis and the centre axis of the spindle meet at one point. During trimming the cutter tip moves continuously on a spherical surface around this cross point.

Our CNC Trimming Machine are:
• CE Certified
• Adaptable to meet the Specific Requirements of the Product in Terms of Quality, Handling, Cycle Times and much more by a Technically up to date Additional Options List

Typical options are:
• Trimming Spindles for a Variety of Application
• Additional Processing Options such as Ultrasound and Cold Knife (if no Ultrasound is required) and Laser Cutting
• Tool Changer
• Various Machine Tables such as Shuttle, Alternating and Rotary
• Machine Enclosures
• Swarf and Dust Extraction Systems
• Vacuum Equipment
• Measuring Systems
• Software Options, Data Acquisition and Logging
• Additional Services and much more

Areas of Application:
• Thermoplastics
• Glass and Carbon Fibre Reinforced Thermosets
• Moulded Parts made from GMT and SMC
• Moulded Parts made from Foam, Leather and a Carrier Part in Sandwich Form
• Wood Panelling
• Plywood Mouldings
• Lightweight Honeycomb Materials
• Blow Mouldings
• Model Making Foam for Tools and Model Making

We are happy to discuss your requirements in a person and look forward to hearing from you.

Control system: Siemens SINUMERIK ONE  NEW!

• revised HMI-Software Operate
• proven Sinamics S120 drive system
• NCU 1740 with integrated PLC S7-1500F

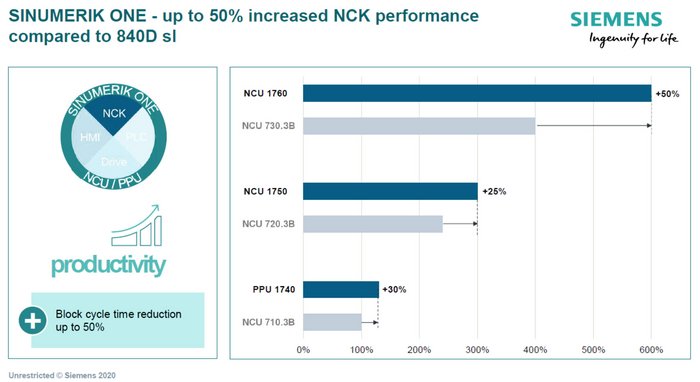

  30% increased NCK performance and 100% more PLC performance compared to Sinumerik 840D with NCU 710
• IT security as a central architectural element
• Safety Integrated Plus for maximum safety and maximum ease of use, without additional mechanical safety relays.

The response times that Safety Integrated guarantees in the event of a fault cannot be achieved with any other monitoring system. Safety integrated makes it possible to safely monitor feed rates, rotational speeds, directions of movement and positions (performance level d). The speed of milling spindles without rotary encoders is also safely monitored with Safety Integrated Plus.

Control components and interfaces:

• New! 19" Widescreen - TFT Touch Display
• New! SINUMERIK ONE machine control panel MCP 1900 with SINUMERIK Powerride
• New! Electronic Key System: Electronic key to be able to select operation mode 1 to 4 see EN 13128
• Interfaces: 2 x USB 3.0 for user
• Ethernet Network connection on board 1Gbit/s


NC-Functions unchanged => Programs with Sinumerik 840D interchangeable

• Comfortable programming language editor according to DIN 66025 with comprehensive language elements
• Circle centre point programming
• Radii programming
• Circle programming via 3 points
• Comprehensive parameter technology.
• Writing of programmes parallel during processing.
• Move to reference point via program
• Acceleration with soft-start feature
• Programmable acceleration
• Programming of sub-routines and macros
• 2D+n screw line interpolation
• Inserting rounded lines
• Basic concept of various arbitrary transforming, rotating, scaling and mirror imaging of programmes and program sections free in space (coordination transformation)
• 5 axis processing package, 5 axis tool length correction, orientated tool retraction ( via TOFRAME) ,RTCP (TRAORI)
• Dialogue guided programming with graphic contour setting, technology storage, application pictures and simulation
• Correction of tool radii and length
• Simulation
• Basic equipment NCU 1740 with.....
• Optional NCU 1750 and NCU 1760 for applications requiring high NCK performance.
