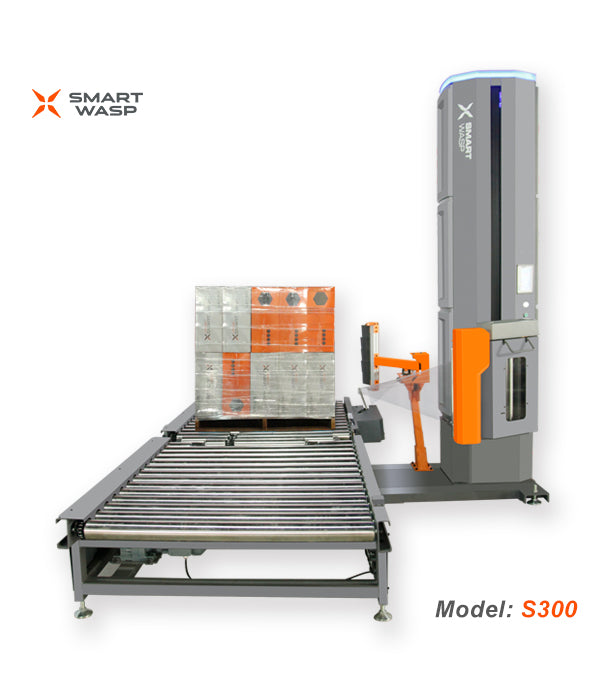

S300 Model Inline Fully Automatic Pallet Wrapping Machine

SKU: S300
or Call Us Now: 1300 722 868

Best solution for automatic production line---S300 fully automatic pallet shrink wrap machine

1. Motor Drive Conveyor
2. Pallet wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
3. Shrink Film provides extra support during transportation and storage to protect them from dust, moisture or damage
4. The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et.

1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Durable stainless steel conveyor
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for production line
10.max load 3000KG

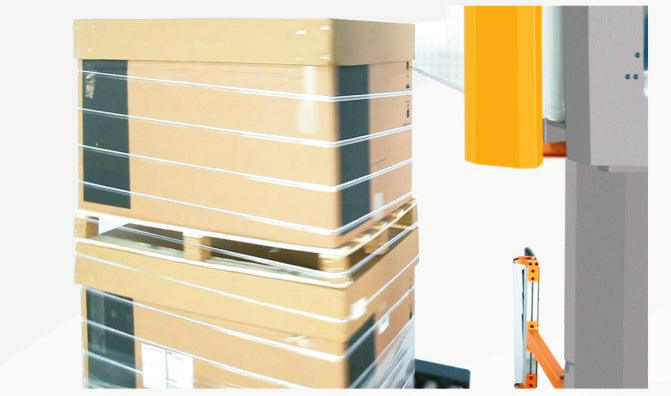

Pallet Grip system
Pallet grip system : film bottom narrowed to become film rope , film shrink rope grip to pallet & products during wrapping.
1. During transport ,no need worry the products fall down when the pallets get violent vibration
2. If the truckfork damage the film on the bottom of pallet ,the film do not breach .
3. Pallet bottom grip and whole journey grip can replace the horizontal strapping machine

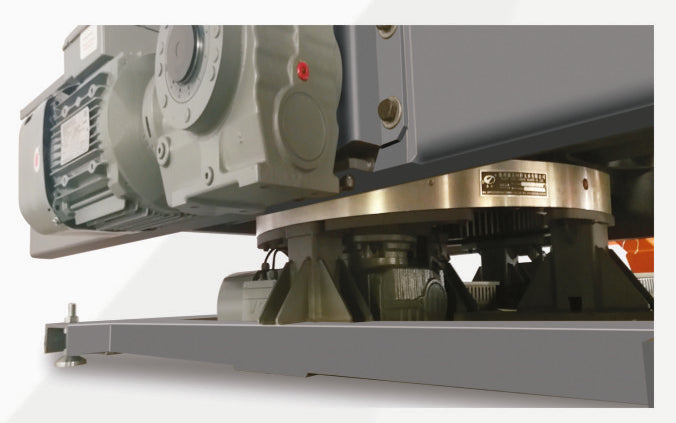

Slewing Bearing Turntable
Smart Wasp online pallet wrapper use the slewing bearing turntable ,max load weight 3000KG ,more quiet and lower vibration compare with the chain drive turntable.

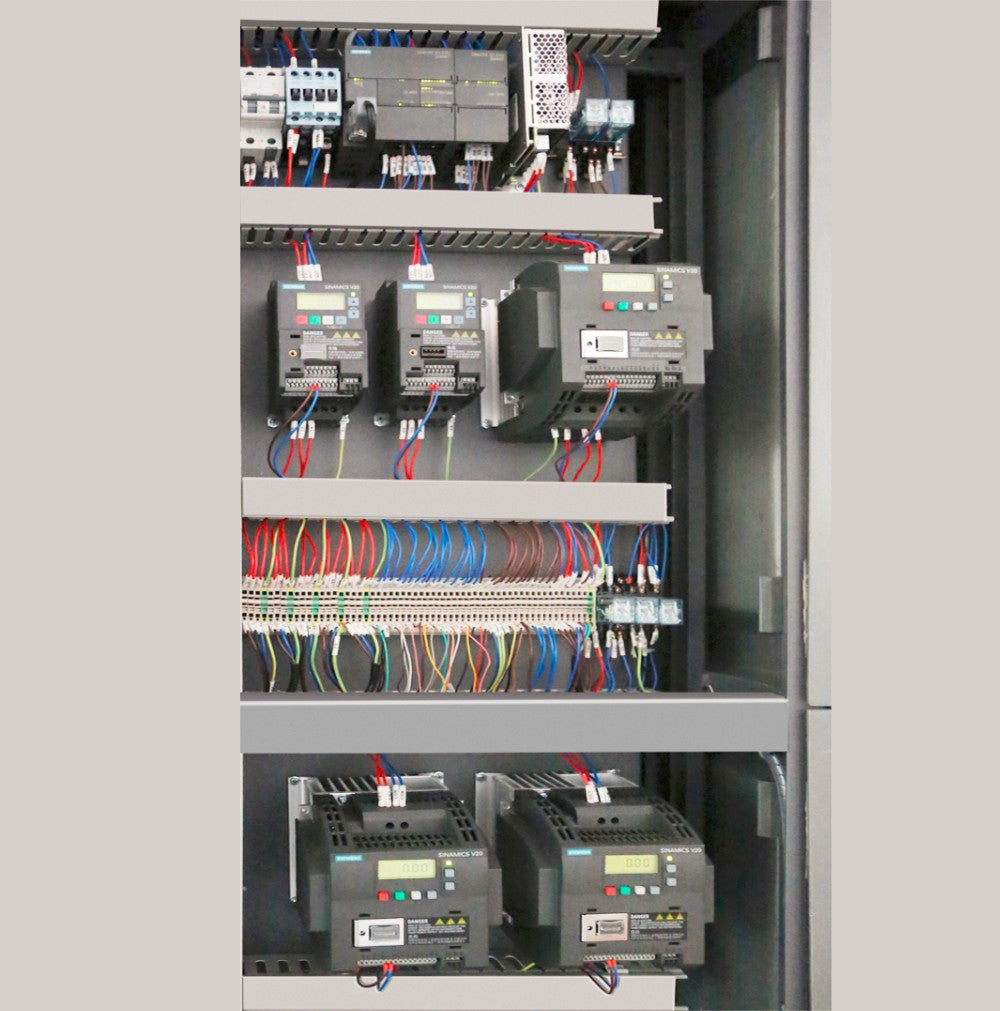

SIEMENS Control System
Smart Wasp online pallet wrapper all the electric parts installed inside of the machine Do not use a independent control box any more ,in this way ,it will be much easier install the machine .all the electric parts smart wasp just use top brand like SIEMENS ,and OMRON Good spare parts is very important for quality of the machine

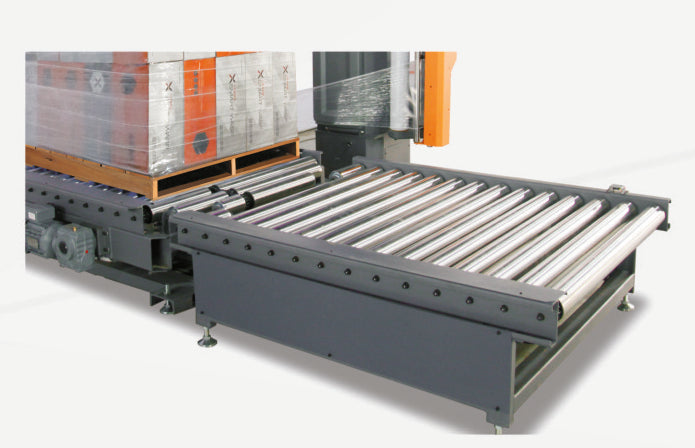

Durable Conveyor
Smart Wasp online pallet wrapping machine use 89mm stainless steel roller , the joint conveyor on wrapper which need be linked to input&output conveyor also use chain drive so that the pallet can be move from the conveyor to wrapper smoothly

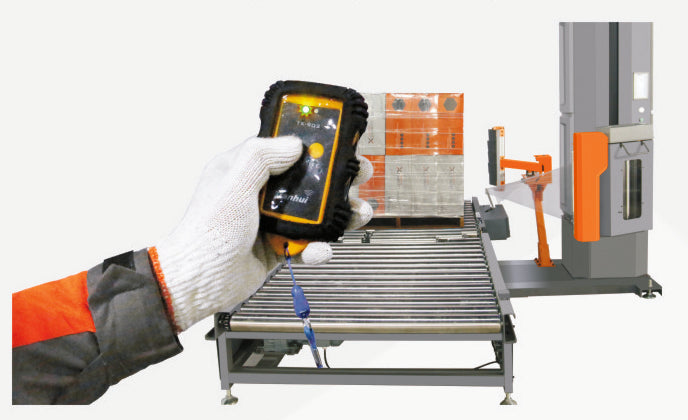

Remote control system with auto cut and clamp film
S300 pallet stretch wrapping machine ，worker just need put the pallet on the turntable and press remote control button,machine will wrap pallet automatically,during this time ,the worker no need get off the forklift truck and operate machine by hand.


Best solution for automatic production line---S300 fully automatic pallet shrink wrap machine

1. Motor Drive Conveyor
2. Pallet wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
3. Shrink Film provides extra support during transportation and storage to protect them from dust, moisture or damage
4. The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et.

1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Durable stainless steel conveyor
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for production line
10.max load 3000KG

Pallet Grip system
Pallet grip system : film bottom narrowed to become film rope , film shrink rope grip to pallet & products during wrapping.
1. During transport ,no need worry the products fall down when the pallets get violent vibration
2. If the truckfork damage the film on the bottom of pallet ,the film do not breach .
3. Pallet bottom grip and whole journey grip can replace the horizontal strapping machine

Slewing Bearing Turntable
Smart Wasp online pallet wrapper use the slewing bearing turntable ,max load weight 3000KG ,more quiet and lower vibration compare with the chain drive turntable.

SIEMENS Control System
Smart Wasp online pallet wrapper all the electric parts installed inside of the machine Do not use a independent control box any more ,in this way ,it will be much easier install the machine .all the electric parts smart wasp just use top brand like SIEMENS ,and OMRON Good spare parts is very important for quality of the machine

Durable Conveyor
Smart Wasp online pallet wrapping machine use 89mm stainless steel roller , the joint conveyor on wrapper which need be linked to input&output conveyor also use chain drive so that the pallet can be move from the conveyor to wrapper smoothly

Remote control system with auto cut and clamp film
S300 pallet stretch wrapping machine ，worker just need put the pallet on the turntable and press remote control button,machine will wrap pallet automatically,during this time ,the worker no need get off the forklift truck and operate machine by hand.
