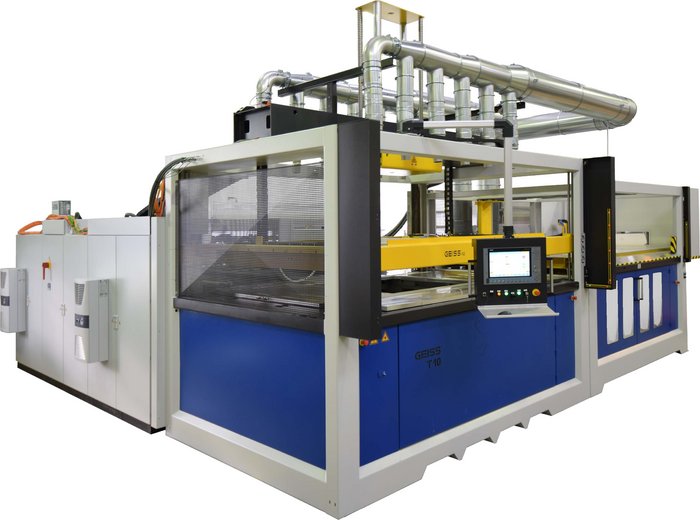

Geiss T10 Thermoforming Machine

Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD

In our opinion this is the world's most advanced thermoforming machine. The options and configurations are just about endless. Every machine is configured to meet your requirements. The basic machine consists of a rigid frame construction with a closed machine chamber, equipped with servo motor drives, adjustable clamp frame, automatic sheet sag control, individually controllable top and bottom heaters, swivel PC control panel, plug assist and cooling fans with water spray mist.

A distinct advantage compared to conventional pneumatically operated systems is our newly designed drive technology with a high dynamic design.  This reduces machine cycles times by approximately 60% whilst reducing energy consumption in excess of 50%.

Our Thermoforming Machines guarantee the processing of any new thermoplastic materials, regardless of the specification of the machine (processing in line with the material manufacturer instructions and compliance with the requirements of the material safety data sheet).

The T10 range from Geiss is the standard worldwide for larger Thermoforming Machines.

The focus is on the T10 as the most productive GEISS Thermoforming Machine.  It scores on significantly shorter cycle times and the compact design.  The construction design and large interior of the heavy-duty universal moulding machine allows for the retrofitting of all GEISS options.

This makes the T series one of the absolute high-tech solutions in terms of Thermoforming.

Type T10

The parametric construction design allows any reasonable minimum nominal size of 1000 x 900mm upwards.  Dimensions such as 4700 x 2400mm or 3100 x 3100mm are nothing unusual and undergo the same production process.  The nominal size of the machine relates to the largest sheet size that can be formed.  The clamp edge is 20mm on each of the four sides.

The standard tool height of 620mm can also be adjusted to suit.

Additionally, to the above mentioned comprehensive basic and additional equipment, further options are available, such as:

  • Newly Developed Heater Elements with Higher Output
  • Pressure Form and Twin-Sheet Equipment for the Manufacture of Closed Mouldings
  • Special Equipment Package for Improved Processing of Acrylic
  • Increased Closing Force (up to 60T) with Motorised Drives
  • Automatic Tool Change Wagon

GEISS AG - UP TO 50% PRODUCTIVITY INCREASE IN THERMOFORMING

In our opinion this is the world's most advanced thermoforming machine. The options and configurations are just about endless. Every machine is configured to meet your requirements. The basic machine consists of a rigid frame construction with a closed machine chamber, equipped with servo motor drives, adjustable clamp frame, automatic sheet sag control, individually controllable top and bottom heaters, swivel PC control panel, plug assist and cooling fans with water spray mist.

A distinct advantage compared to conventional pneumatically operated systems is our newly designed drive technology with a high dynamic design.  This reduces machine cycles times by approximately 60% whilst reducing energy consumption in excess of 50%.

Our Thermoforming Machines guarantee the processing of any new thermoplastic materials, regardless of the specification of the machine (processing in line with the material manufacturer instructions and compliance with the requirements of the material safety data sheet).

The T10 range from Geiss is the standard worldwide for larger Thermoforming Machines.

The focus is on the T10 as the most productive GEISS Thermoforming Machine.  It scores on significantly shorter cycle times and the compact design.  The construction design and large interior of the heavy-duty universal moulding machine allows for the retrofitting of all GEISS options.

This makes the T series one of the absolute high-tech solutions in terms of Thermoforming.

Type T10

The parametric construction design allows any reasonable minimum nominal size of 1000 x 900mm upwards.  Dimensions such as 4700 x 2400mm or 3100 x 3100mm are nothing unusual and undergo the same production process.  The nominal size of the machine relates to the largest sheet size that can be formed.  The clamp edge is 20mm on each of the four sides.

The standard tool height of 620mm can also be adjusted to suit.

Additionally, to the above mentioned comprehensive basic and additional equipment, further options are available, such as:

  • Newly Developed Heater Elements with Higher Output
  • Pressure Form and Twin-Sheet Equipment for the Manufacture of Closed Mouldings
  • Special Equipment Package for Improved Processing of Acrylic
  • Increased Closing Force (up to 60T) with Motorised Drives
  • Automatic Tool Change Wagon

GEISS AG - UP TO 50% PRODUCTIVITY INCREASE IN THERMOFORMING
