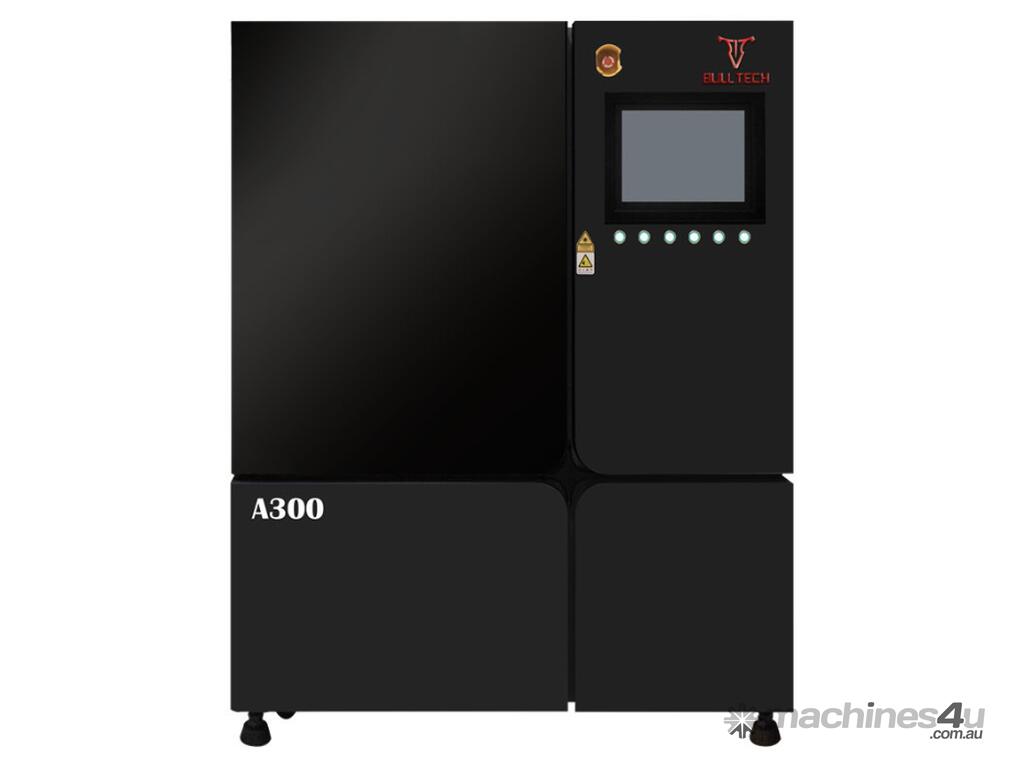

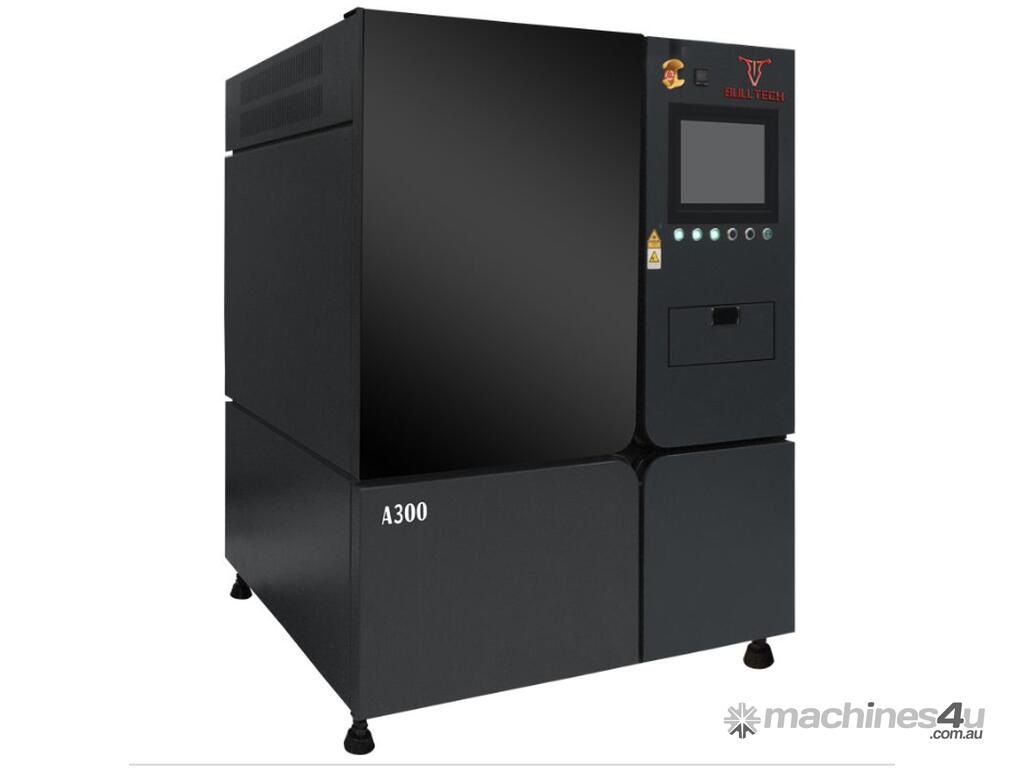

BULLTECH A300 SLA 3D PRINTING SYSTEM

Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD

Description

***UNBELIEVABLE DEAL INTRODUCTORY OFFER NEVER TO BE REPEATED ON THIS MULTI METAL PRINTING MACHINE***

SLA (Stereolithography) is an additive manufacturing process that works by focusing an UV laser on to a vat of photopolymer resin. With the help of computer aided manufacturing or computer aided design(CAM/CAD) software, the UV laser is used to draw a pre-programmed design or shape on to the surface of the photopolymer vat. Photopolymers are sensitive to ultraviolet light, so the resin is photochemically solidified and forms a single layer of the desired 3D object. This process is repeated for each layer of the design until the 3D object is complete.

Great new Bulltech 3D SLA Printer

Our Bulltech A300 SLA 3D printer delivers
Parts with high quality surface before polishing
Parts of high accuracy, for precision samples
Can produce functional metal parts, simplify the manufacture process

This machine has a
Bus control system makes the machine faster
Remote APP monitoring and Smart pushing information
International high standard components, more stable and reliable
Self developed and patented control and slicing software, easy to use and cost saving


A300 SLA 3D PRINTING SYSTEM SPECIFICATIONS

A300 LASER SYSTEM
Aptowave Laser USA
Wavelength - 354.7nm
Power - 3W

RECOATING SYSTEM
Process - Intelligent positioning - Vacuum press recoat
Normal Build - 0.1mm
Quick Build - 0.1~0.15mm
Precision Build - 0.05~0.1mm

OPTICAL & SCANNING
Beam (diameter1/e2) - 0.10~0.50mm
Scanning Galvanometer - ScanLab
Parts Scanning Speed - 6.0m/s (recommended)
Blank Jumping Speed - 10.0m/s (recommended)
Reference Building Speed - 30~80g/h

ELEVATOR
Position repeatability - ±0.01mm
Elevator Motor - Panasonic Japan Servo Motor
Benchmark Platform - Marble benchmark platform

RESIN VAT
Volume - Approx. 42L 200mm (Z)
XY Platform - 300mm(X) × 300mm(Y)
Z Axis - 200mm(standard) / 300mm(optional)
Max Weight - 30kg200mm(Z)
Resin heated style - Hot air
Photopolymer Resin -
6001 ( White )
6005 ( Light Yellow )
6008 ( Clear )

SOFTWARE
Network - Ethernet, TCP/IP, IEEE802.3
Control Software - ZERO 5.0
Date Preparation Software - 3dLayer
Data Interface - CLI file, SLC file, STL file

WORKING CONDITION
Power - 200~240VAC 50/60Hz, single phase, 5 / 10Amps
Ambient Temperature - 20-26ºC
Relative Humidity?Less than 40%, non-condensing
Size - 1.20m(W)×0.90m(D)×1.70m(H)
Weight - Approx. 630kg

Key Features:
Dynamic focus super-fast scanning style
Large surface intelligent partitioning scanning
Integrated Z axis lifting platform
Intelligent positioning and vacuum adsorption recoater Damaged parts removal system
Marble or Granite Countertop: Stable under various temp. and environment Stability ensures precision
Cyclone separation: Efficiently control system, three stages filter system Clean Safe Healthy
Multiple galvanometers: Multiple areas Efficient, time saving
Intelligent partitioning scanning: Reduce tension Prevent deforming
Printing process package pre-loaded: Saving time - Easy operation - ** Suitable for common used material and process
Remote APP Intelligent monitoring: Remote service support and Remote trouble shooting
Smart calculation: Saving 30% material
Life time free system upgradation
Open system setting: More friendly to different materials
BullEye 21.5’ touch screen
Multiple printer network production: Intelligent interconnection and visualisation of production process provide optimization support for the overall production process and realize mass production, which is the development trend of additive manufacturing in the future.
