SLM printing uses selective laser melting technology which melts metal powders and solidifies layer by layer until a three-dimensional part is built. During the process, the ruler in the build chamber will pave one layer of the metal powder, a high powered laser selectively fuses the powder by tracing cross-section of the part on the surface of a powder bed and then a new coat of material is applied for the next layer. The whole process is in a high vacuum chamber or full of protective gas chamber to avoid the metal powder reacts with oxygen at high temperature.
|

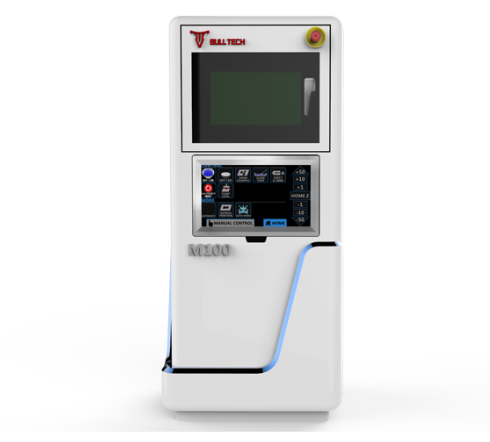

M100 |
|
| LASER SYSTEM | Type：fiber laser Wave Length：1064nm Power：200W (70W optional) |
| RECOATING SYSTEM | Process：scraper coating Layer Tickness: 0.02-0.1mm |
| OPTICAL & SCANNING | Beam (diameter@1/e2)：≤0.04mm Scanning Galvanometer：ScanLab Scanning Speed: up to 7m/s Building Speed：2-20cm³/h |
| ELEVATOR | Drive Mode：servo motor precision reduction drive Printing Board Bearing Weight ：≥200kg Repositioning Accuracy: ±0.005 mm |
| BUILD VAT | Volume：Approx. 2L Size：100mm (X)*100mm (Y)*100mm (Z) Heat: Precision resistance wire heating Protectivegas：N2 / Argon Materials： Stainless Steel / Die Steel / Titanium Alloy / Aluminum Alloy / Co-Cr Alloy / Nickel Alloy / Copper / Precious Metal etc |
| SOFTWARE | Control Software：Bulltech Date Preparation Software：Materialise Magics Data Interface：STL or other convertible format |
| WORKING CONDITION | Power：220V 50/60Hz, 32 Amps, single phase Ambient Temperature：15-36ºC Relative Humidity：≤ 65% Dimension: 1200m(L)*800mm(W)*1700mm(H) |

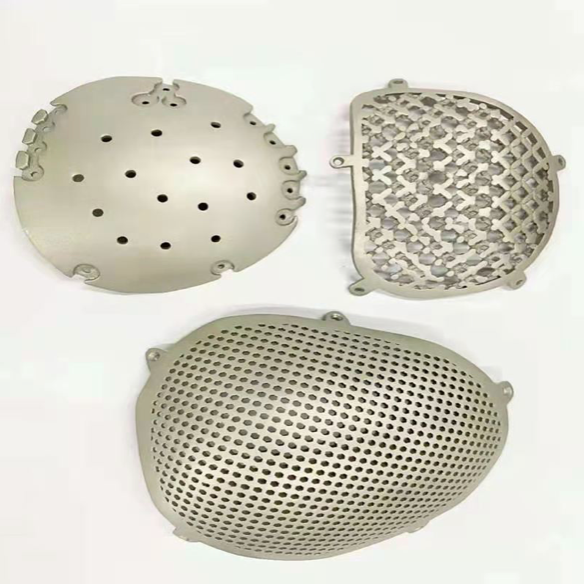

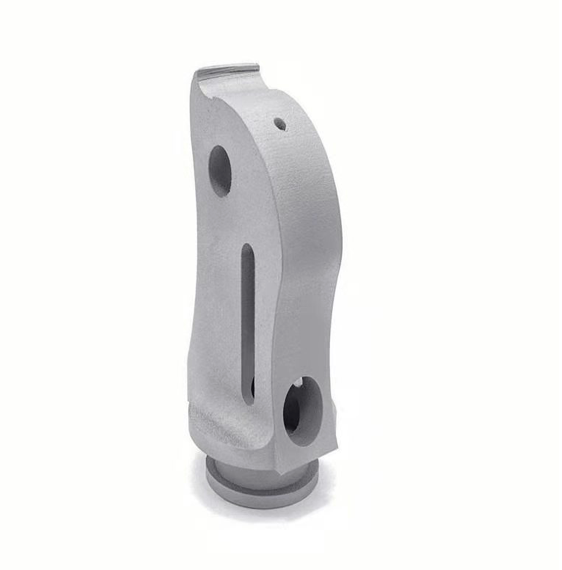

Parts with high quality surface before polishing Parts in high accuracy, for precision samples Directly produce functional metal parts, simplify the manufacture process Parts have metallurgy and mechanical properties, density over than 99%. Especially for single part or small amount of functional parts Bus control system makes the machine faster Remote APP monitoring and Smart pushing information International high standard components, more stable and reliable Self developed and patented control and slicing software, easy to use and cost saving
SLM printing uses selective laser melting technology which melts metal powders and solidifies layer by layer until a three-dimensional part is built. During the process, the ruler in the build chamber will pave one layer of the metal powder, a high powered laser selectively fuses the powder by tracing cross-section of the part on the surface of a powder bed and then a new coat of material is applied for the next layer. The whole process is in a high vacuum chamber or full of protective gas chamber to avoid the metal powder reacts with oxygen at high temperature.
|
M100 |
|
| LASER SYSTEM | Type：fiber laser Wave Length：1064nm Power：200W (70W optional) |
| RECOATING SYSTEM | Process：scraper coating Layer Tickness: 0.02-0.1mm |
| OPTICAL & SCANNING | Beam (diameter@1/e2)：≤0.04mm Scanning Galvanometer：ScanLab Scanning Speed: up to 7m/s Building Speed：2-20cm³/h |
| ELEVATOR | Drive Mode：servo motor precision reduction drive Printing Board Bearing Weight ：≥200kg Repositioning Accuracy: ±0.005 mm |
| BUILD VAT | Volume：Approx. 2L Size：100mm (X)*100mm (Y)*100mm (Z) Heat: Precision resistance wire heating Protectivegas：N2 / Argon Materials： Stainless Steel / Die Steel / Titanium Alloy / Aluminum Alloy / Co-Cr Alloy / Nickel Alloy / Copper / Precious Metal etc |
| SOFTWARE | Control Software：Bulltech Date Preparation Software：Materialise Magics Data Interface：STL or other convertible format |
| WORKING CONDITION | Power：220V 50/60Hz, 32 Amps, single phase Ambient Temperature：15-36ºC Relative Humidity：≤ 65% Dimension: 1200m(L)*800mm(W)*1700mm(H) |
Parts with high quality surface before polishing Parts in high accuracy, for precision samples Directly produce functional metal parts, simplify the manufacture process Parts have metallurgy and mechanical properties, density over than 99%. Especially for single part or small amount of functional parts Bus control system makes the machine faster Remote APP monitoring and Smart pushing information International high standard components, more stable and reliable Self developed and patented control and slicing software, easy to use and cost savingNote: All products exclude GST where applicable at the current rate.
